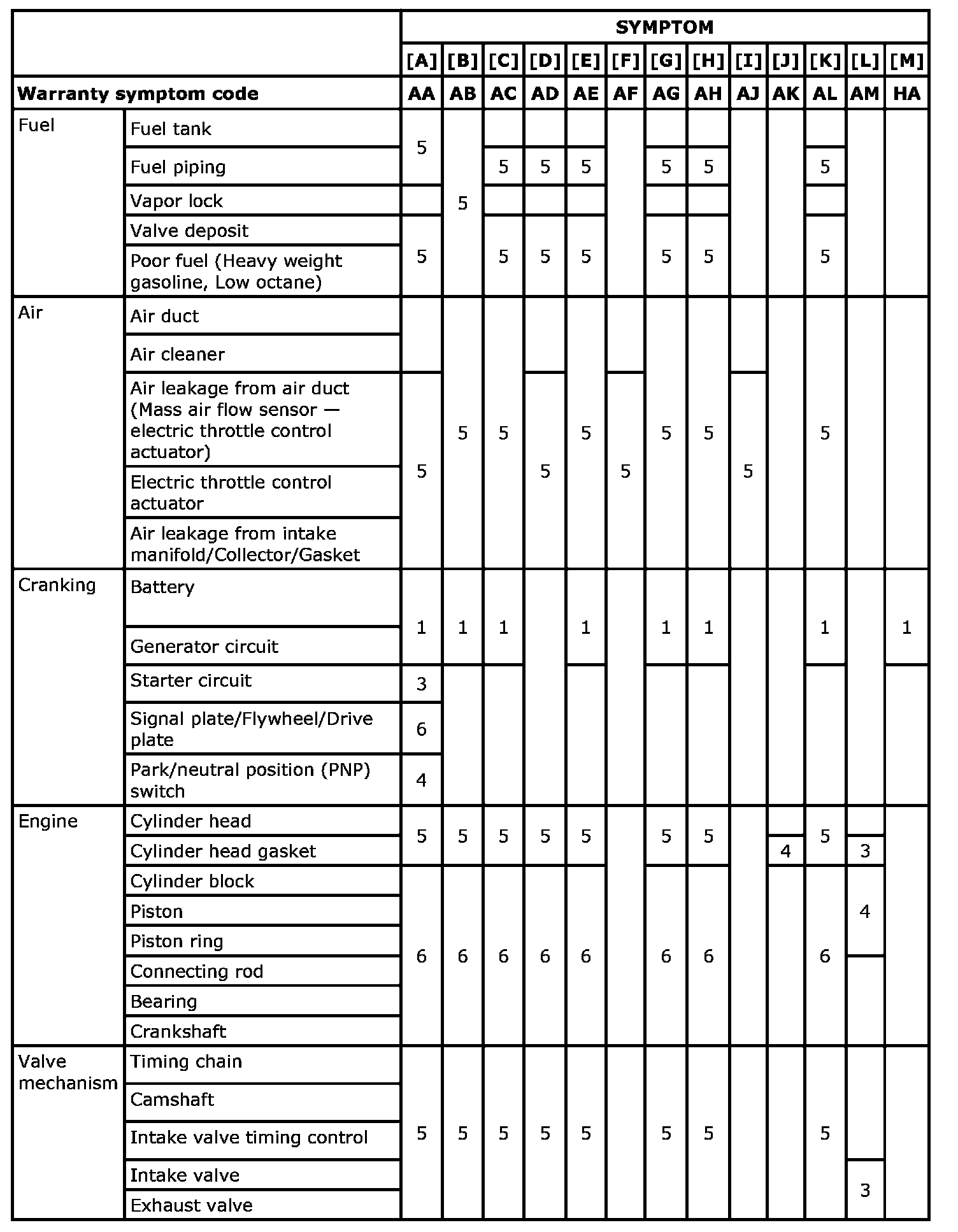

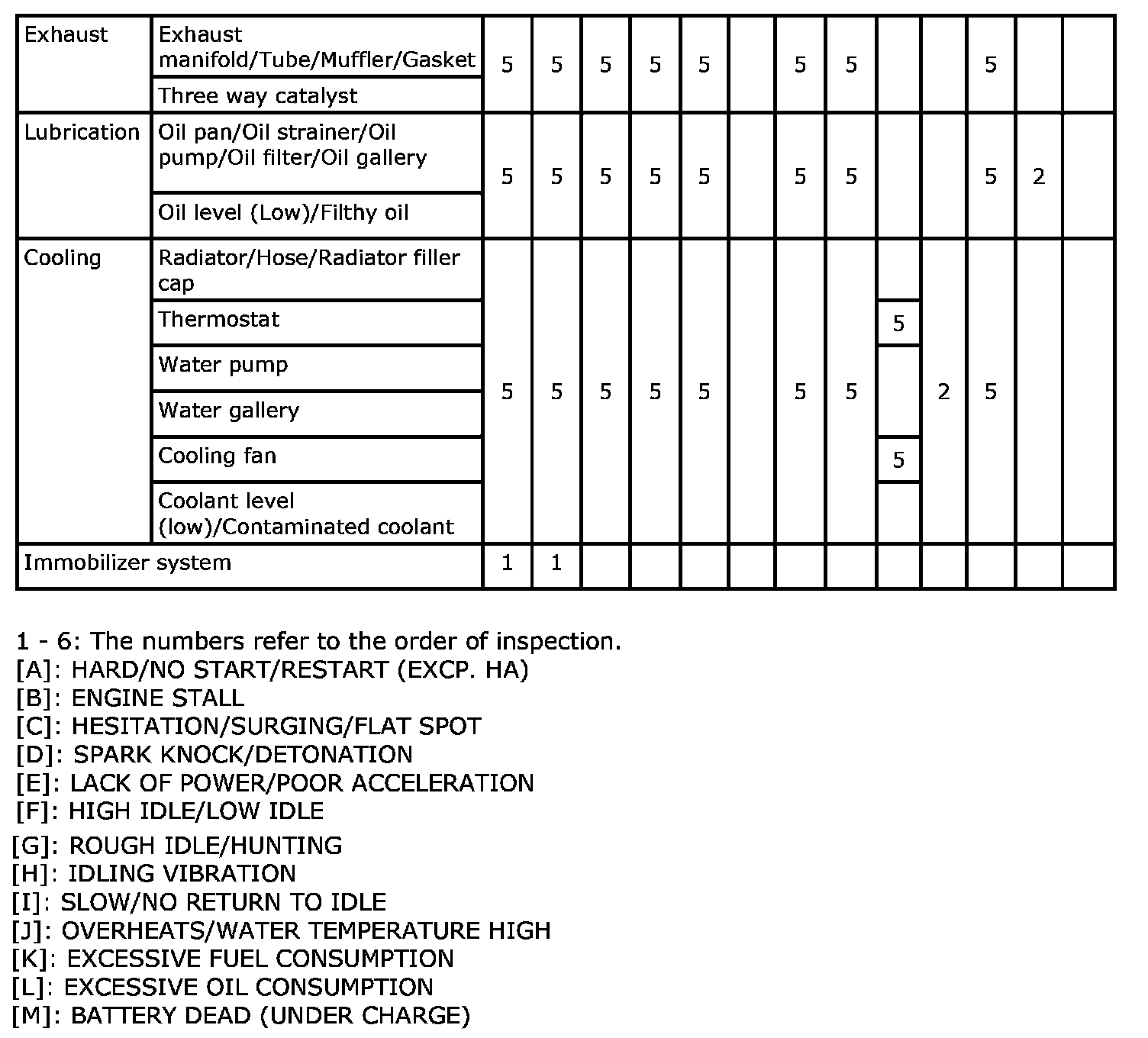

Engine Control System Symptoms: Symptom Matrix Chart

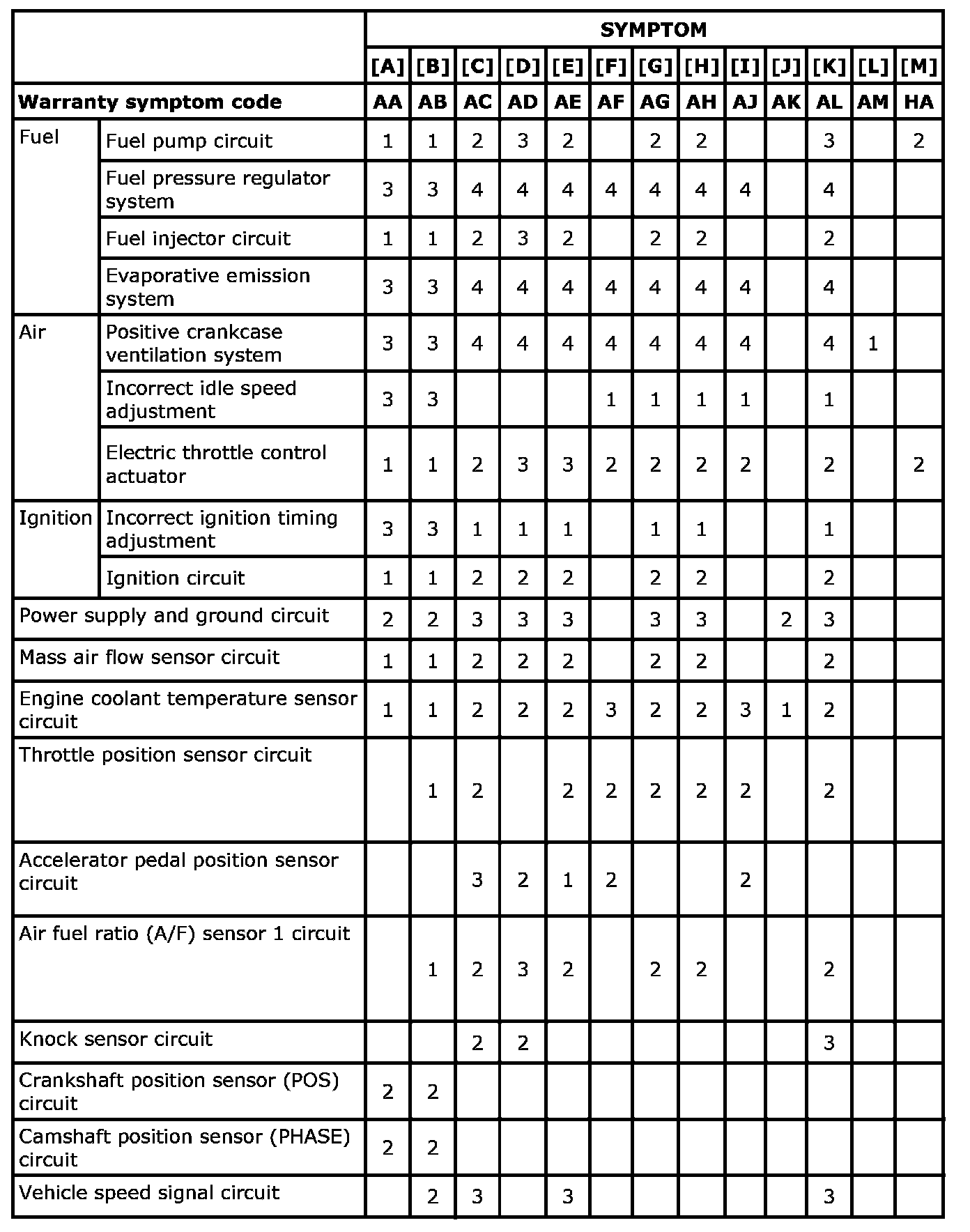

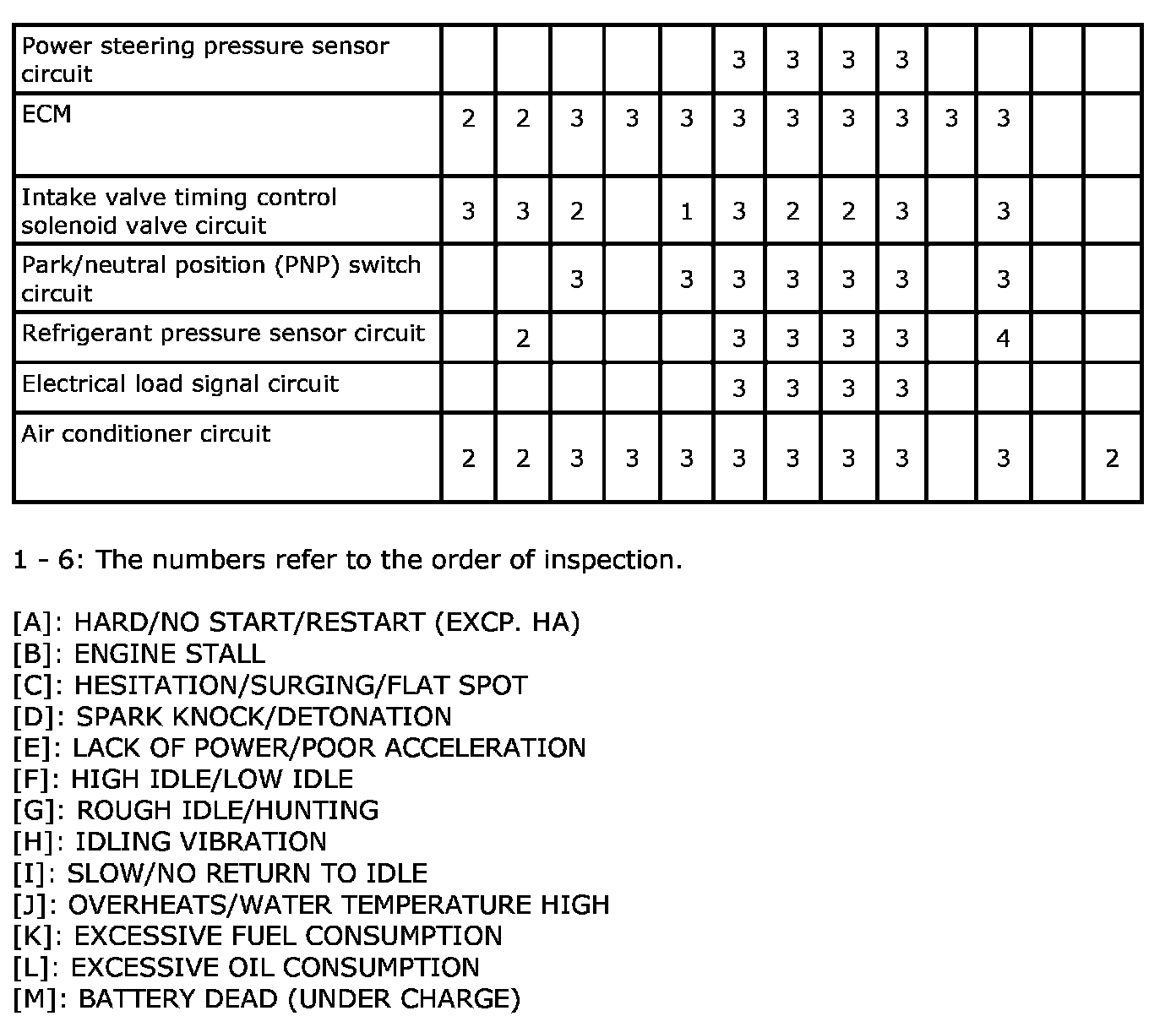

SYSTEM - BASIC ENGINE CONTROL SYSTEM
SYSTEM - ENGINE MECHANICAL & OTHER
