Home >> Suzuki >> 2009 >> Equator 2WD L4-2.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Service and Repair >> Refrigeration System: Component

Refrigeration System: Component

Refrigeration System: Component

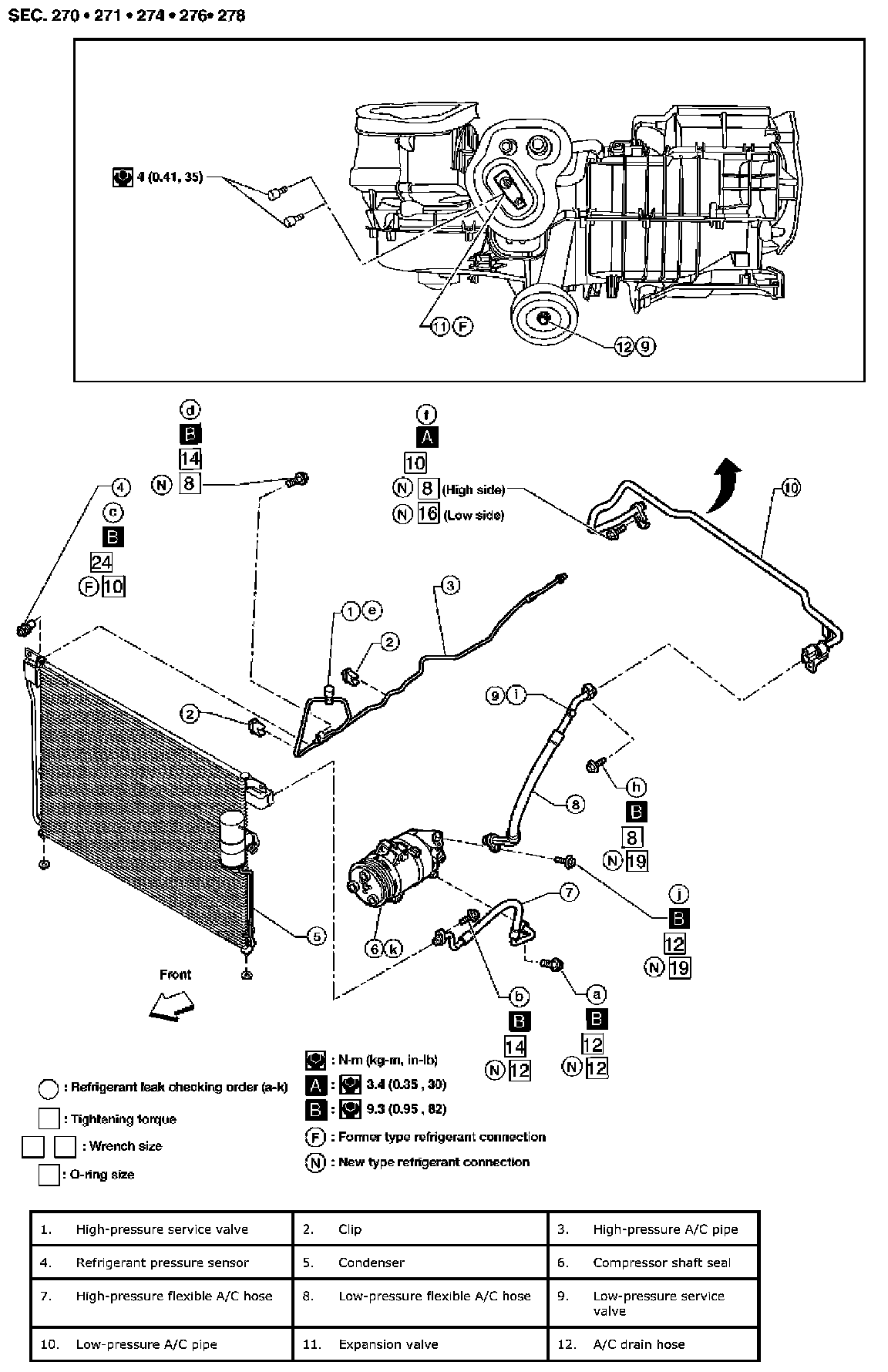

A/C Compressor and Condenser






NOTE: Refer to [Precaution for Refrigerant Connection].
