Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Engine Lubrication
>>

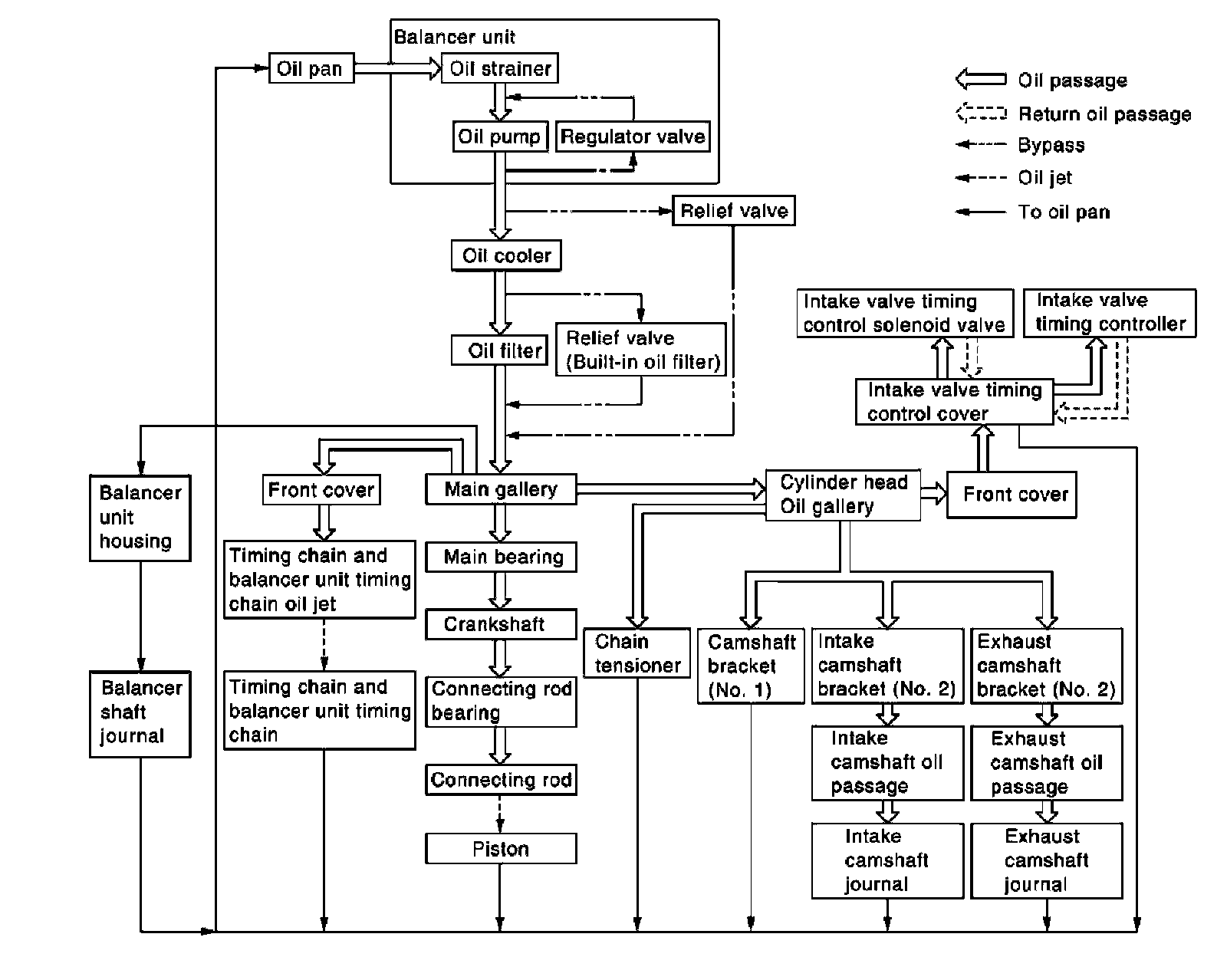

Lubrication System: System Chart
Lubrication System: System Chart
Lubrication System: System Chart
