Engine Basic Check

Engine Basic Check

This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in Visual Inspection.

Follow the flow carefully.

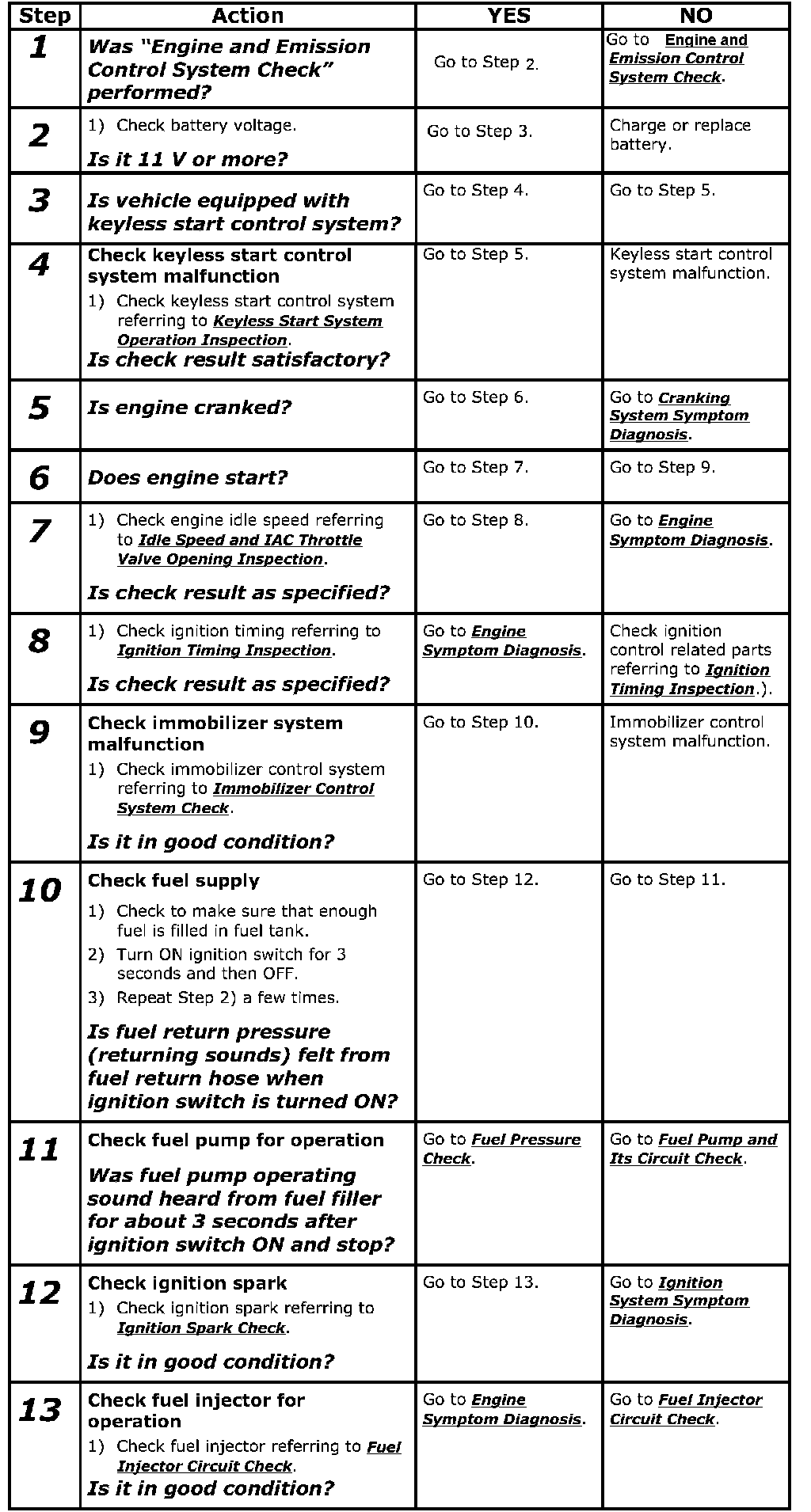

Step 1-13:
