Control Unit, Differential Lock
Control Unit, Differential Lock

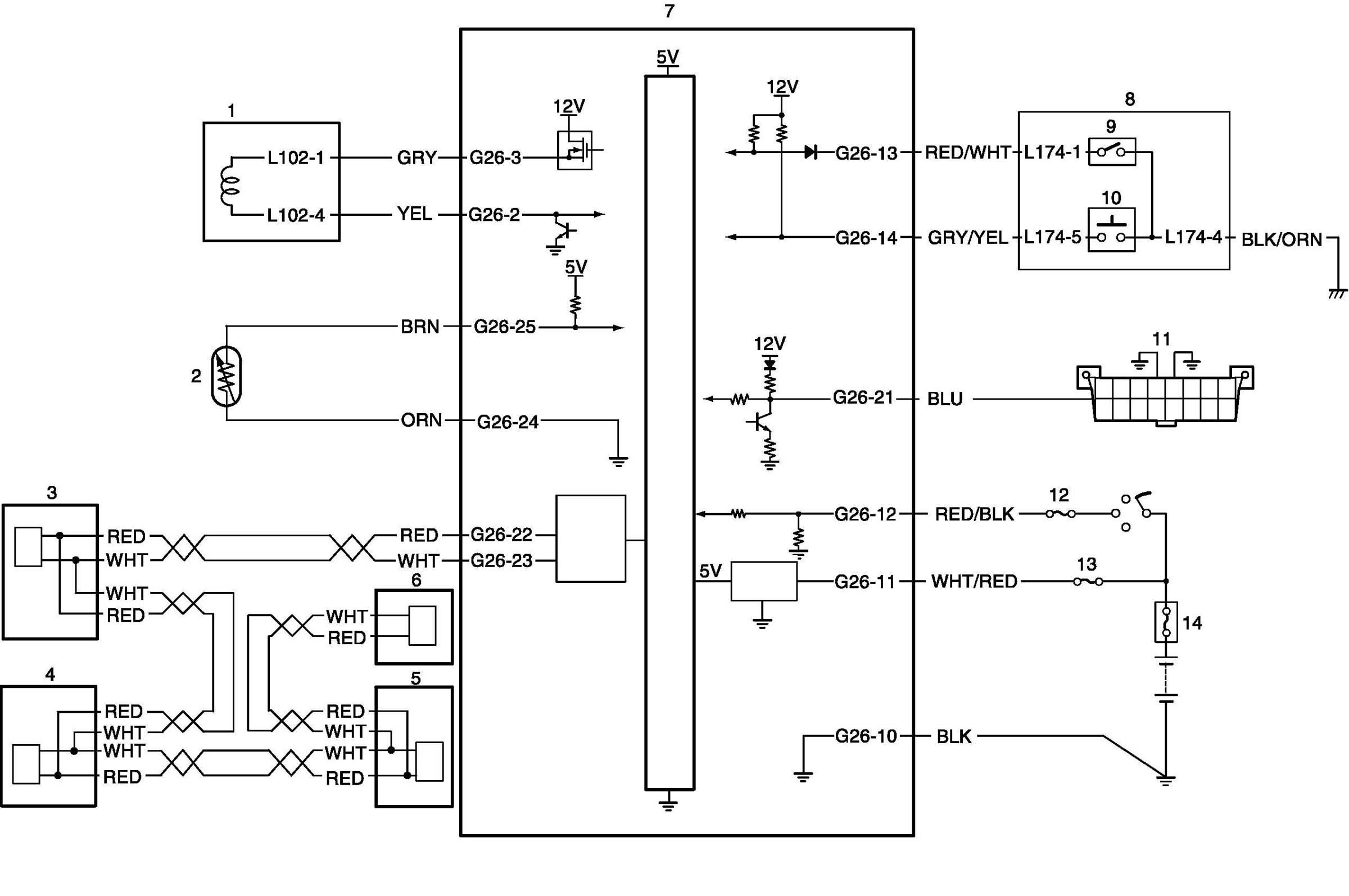

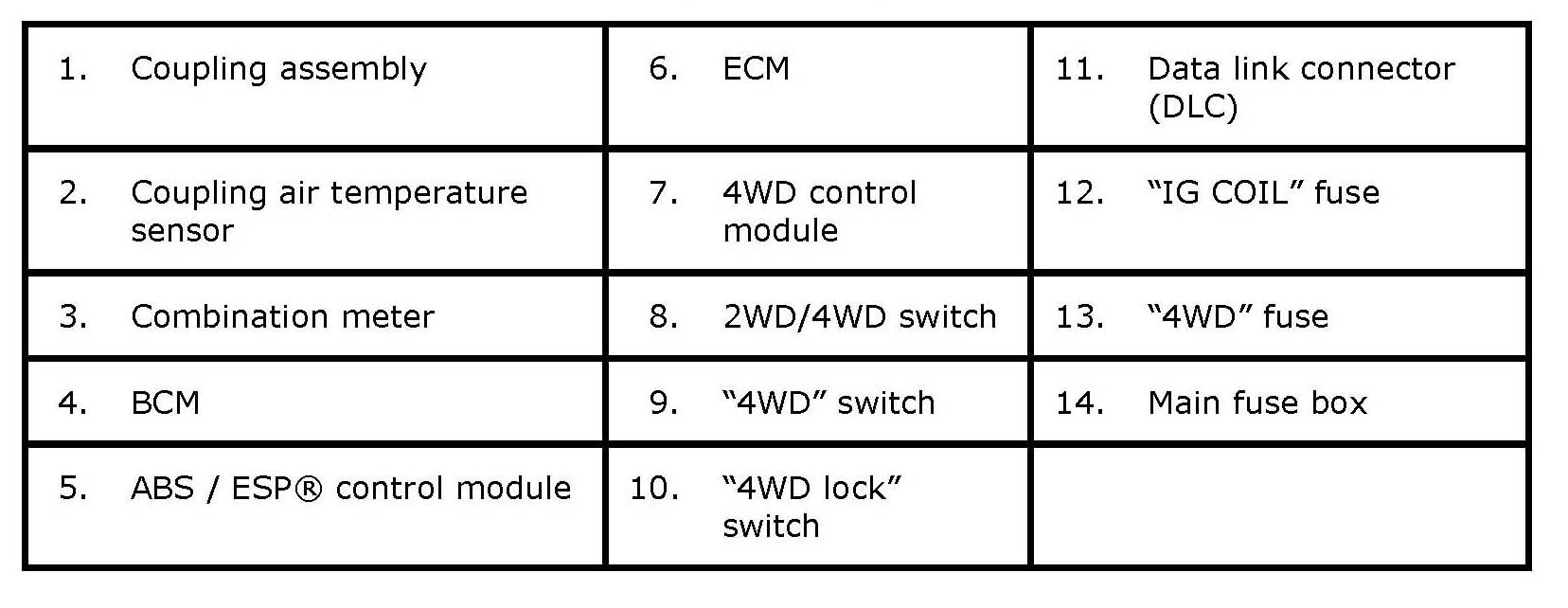

4WD Control System Wiring Circuit Diagram
