Home >> Suzuki >> 2007 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heating and Air Conditioning >> Housing Assembly HVAC

Housing Assembly HVAC

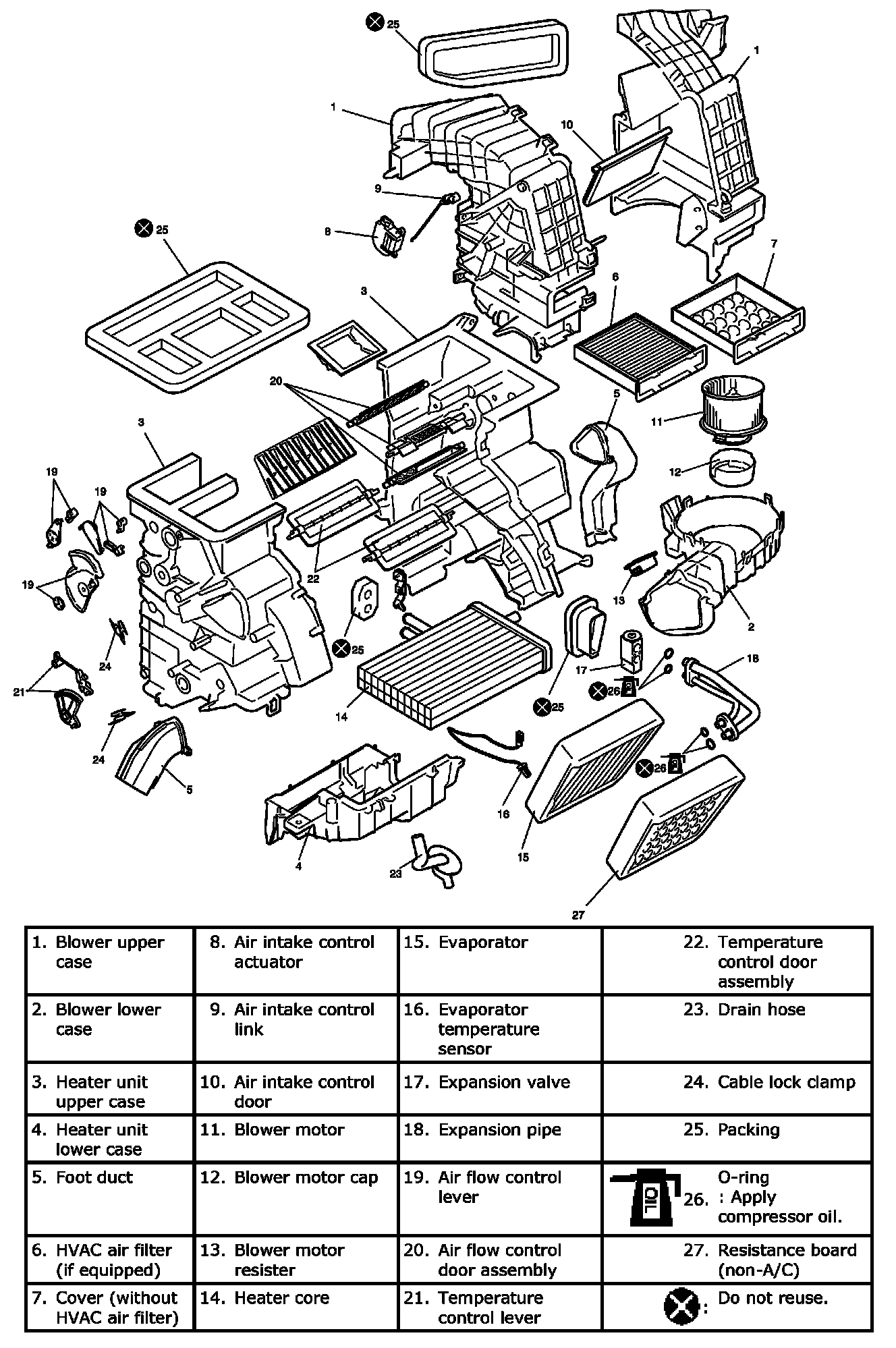

HVAC Unit Components:
