Control Module: Locations

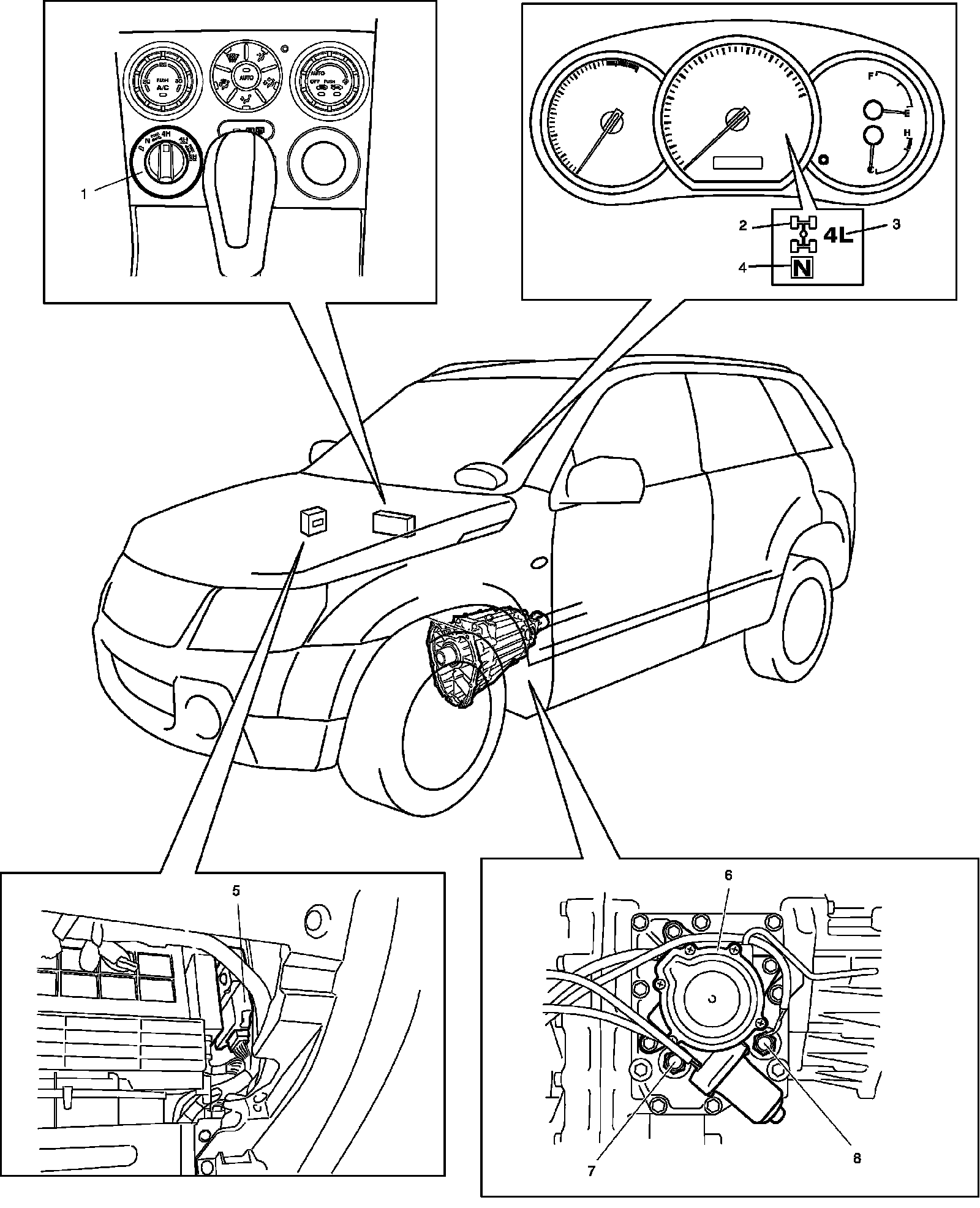

Transfer Shift Control System Components





1. Transfer switch
2. Differential lock indicator
3. 4L indicator
4. N indicator
5. 4WD control module
6. Transfer actuator
7. Center differential lock switch
8. 4L/N switch
