Home >> Suzuki >> 2007 >> Grand Vitara 4WD V6-2.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Mount

Engine Mount

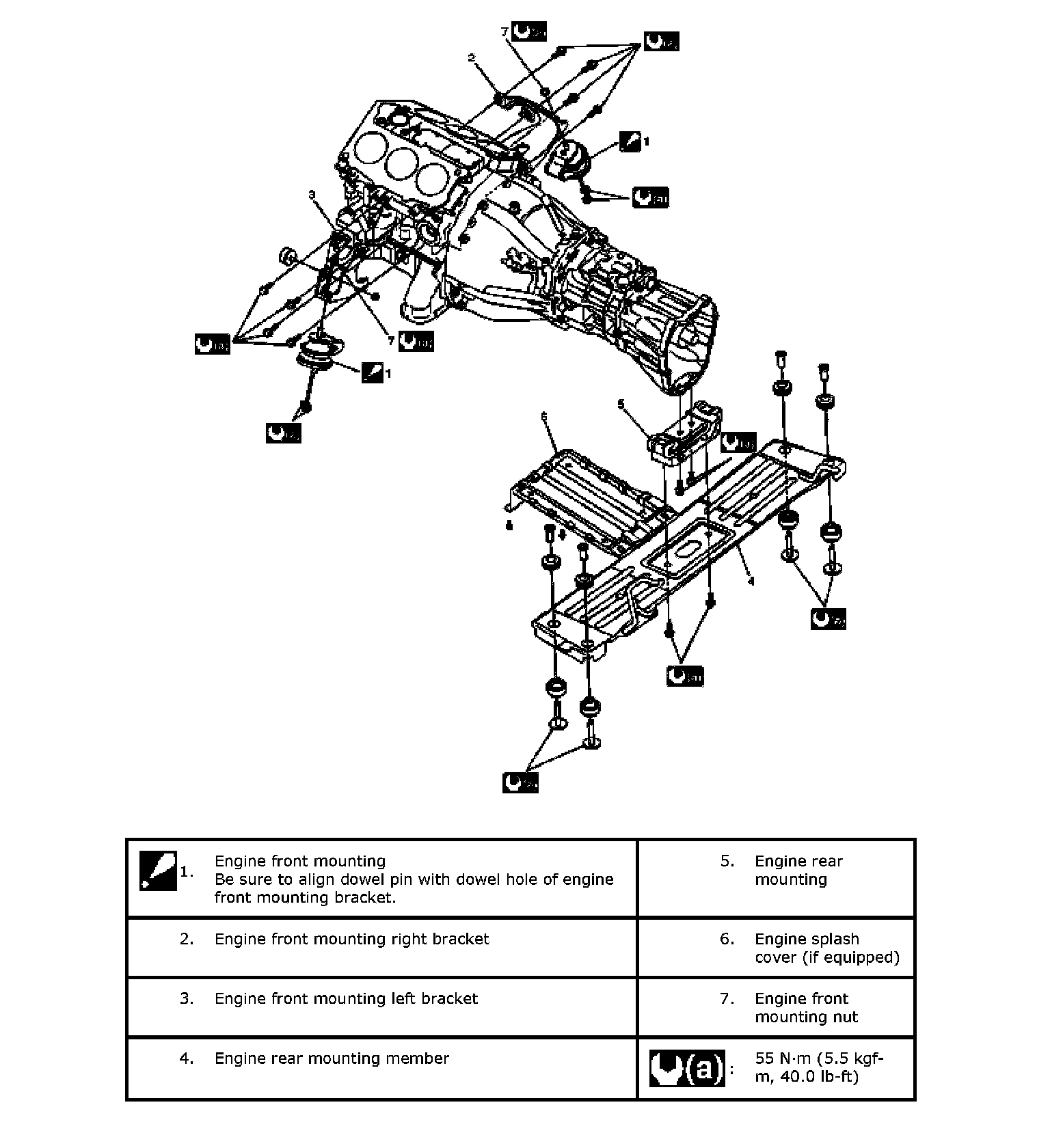

Engine Mounting Components:
