Home >> Suzuki >> 2006 >> XL-7 2WD V6-2.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Automatic Transmission Unit Components

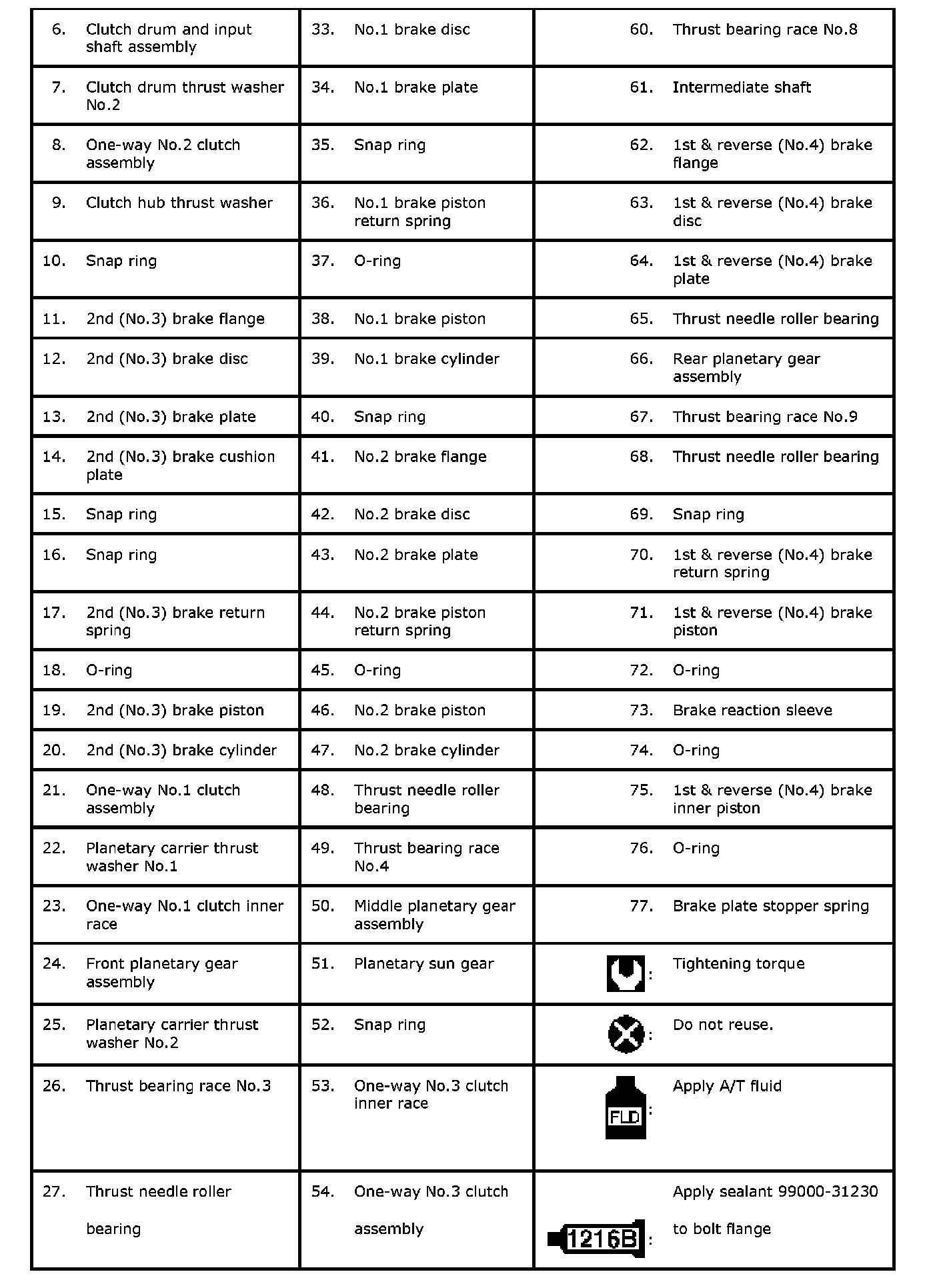

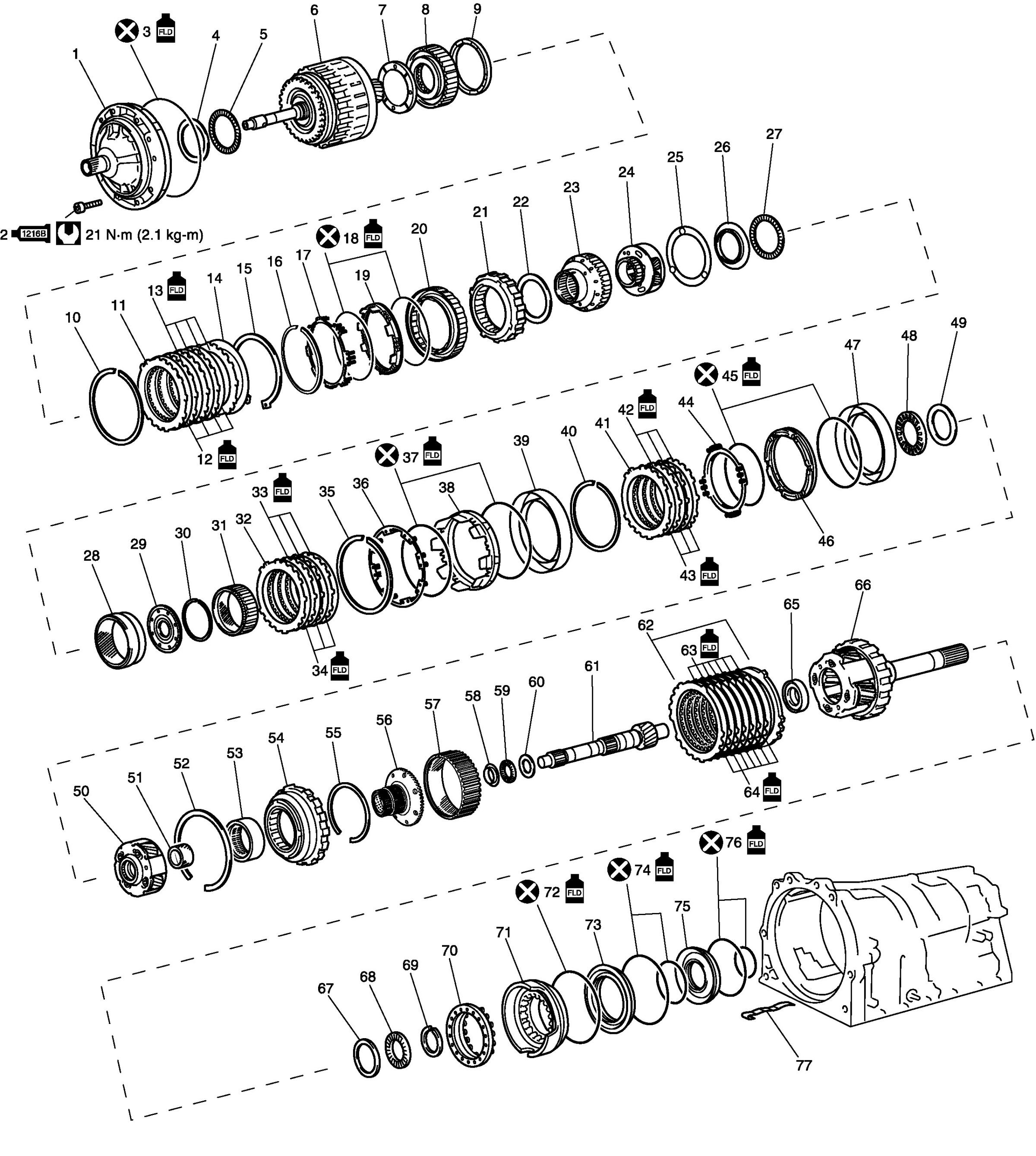

Automatic Transmission Unit Components

Automatic Transmission Unit Components:



Automatic Transmission Unit Components:



Automatic Transmission Unit Components:
