System Schematic

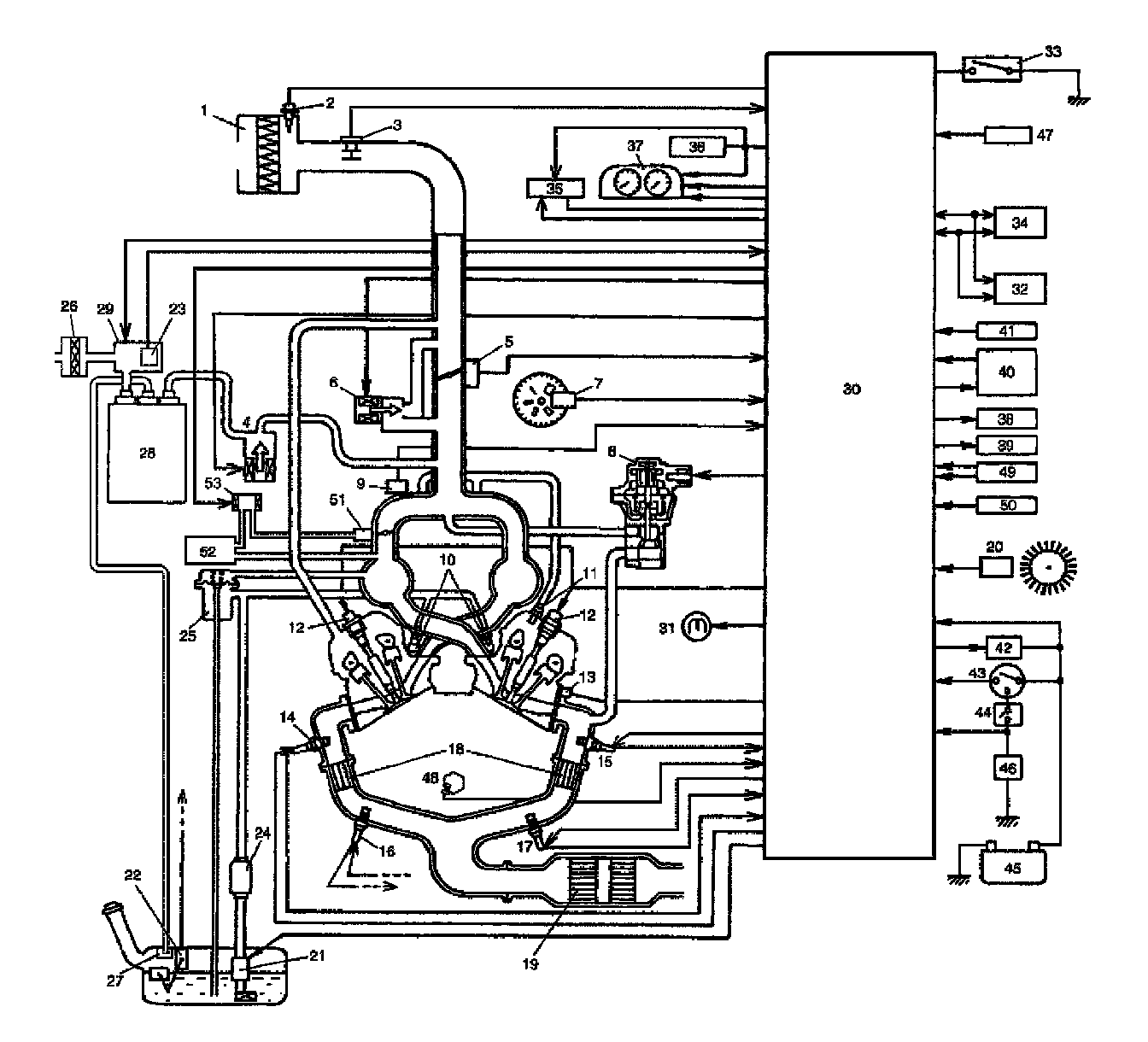

Engine And Emission Control System Diagram Part 1:

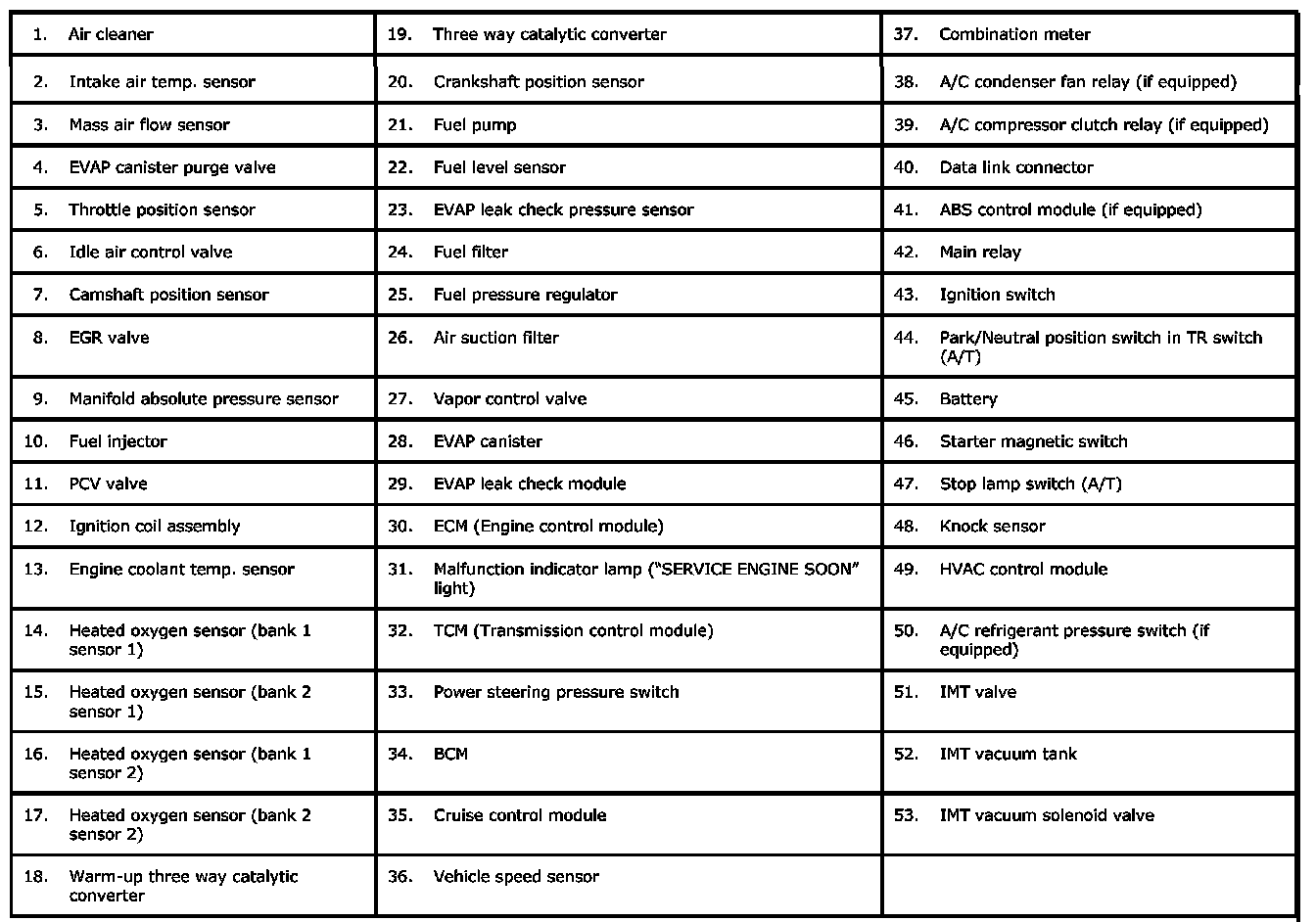

Engine And Emission Control System Diagram Part 2:
