Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
Transaxle Wiring Harness Connector

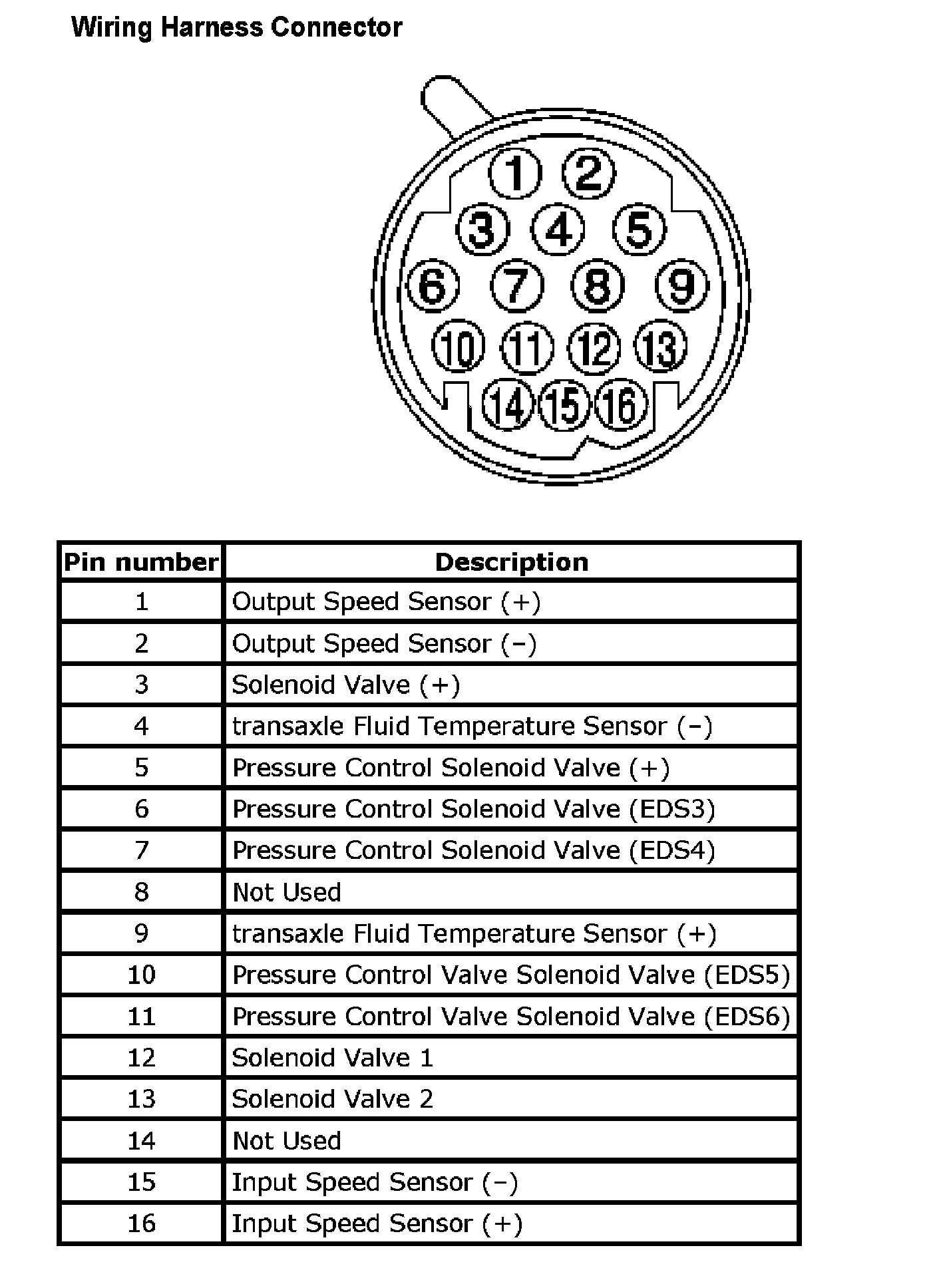

Wiring Harness Connector
Wiring Harness Connector:

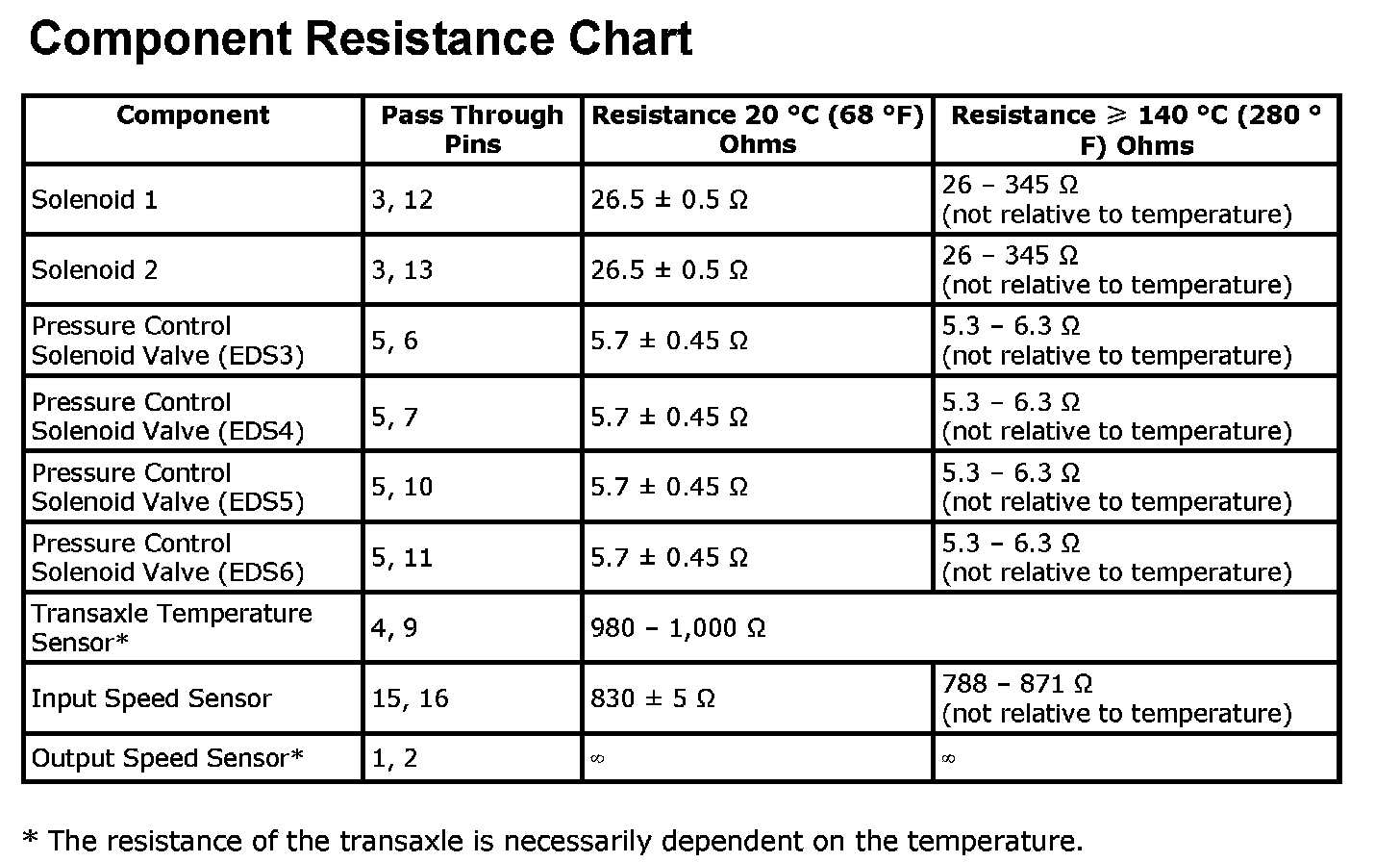

Component Resistance Chart
Component Resistance Chart:
