Suzuki
>>
2006
>>
Verona Base
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Schematic and Routing Diagram
>>
Charging System Diagram
Charging System Diagram

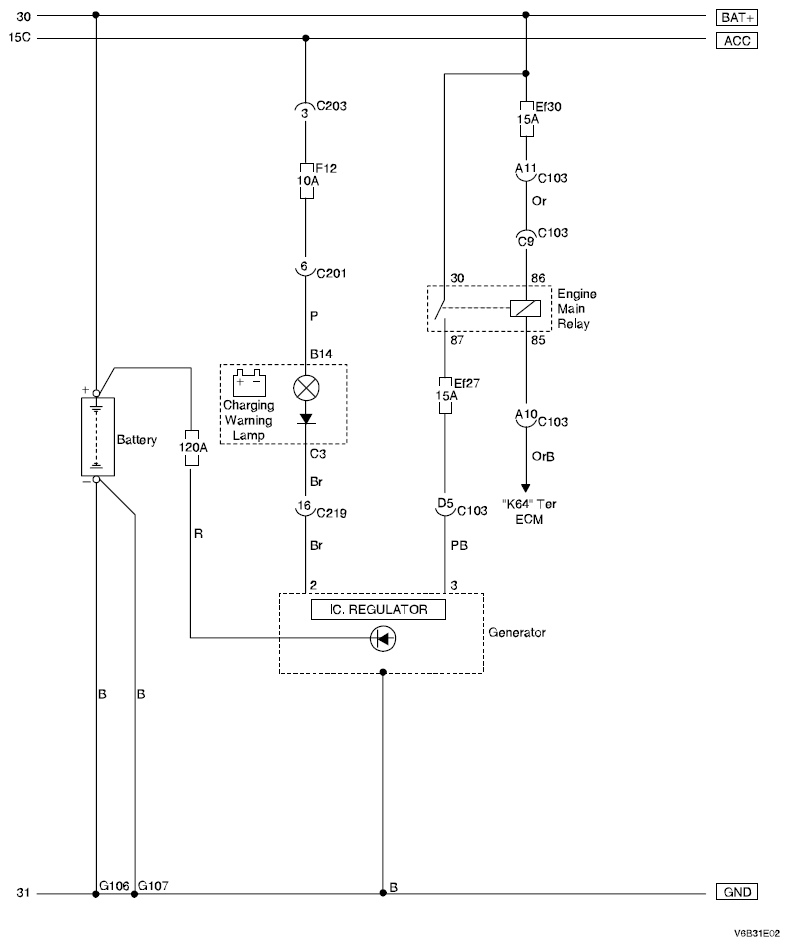

Fig 1: Charging System - Schematic And Routing Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
