Intake Air Temperature Sensor Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the Intake Air Temperature (IAT) sensor connector.
  3. Remove the IAT sensor by pulling it out of the air intake tube.

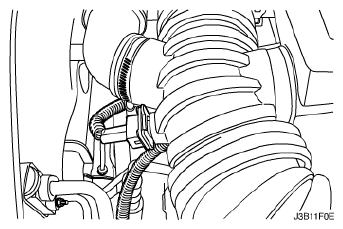

    Fig 1: Intake Air Temperature (IAT) Sensor Connector
    G04716370Courtesy of SUZUKI OF AMERICA CORP.
