Suzuki
>>
2005
>>
Verona L6-2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
I/P Fuse Block
I/P Fuse Block

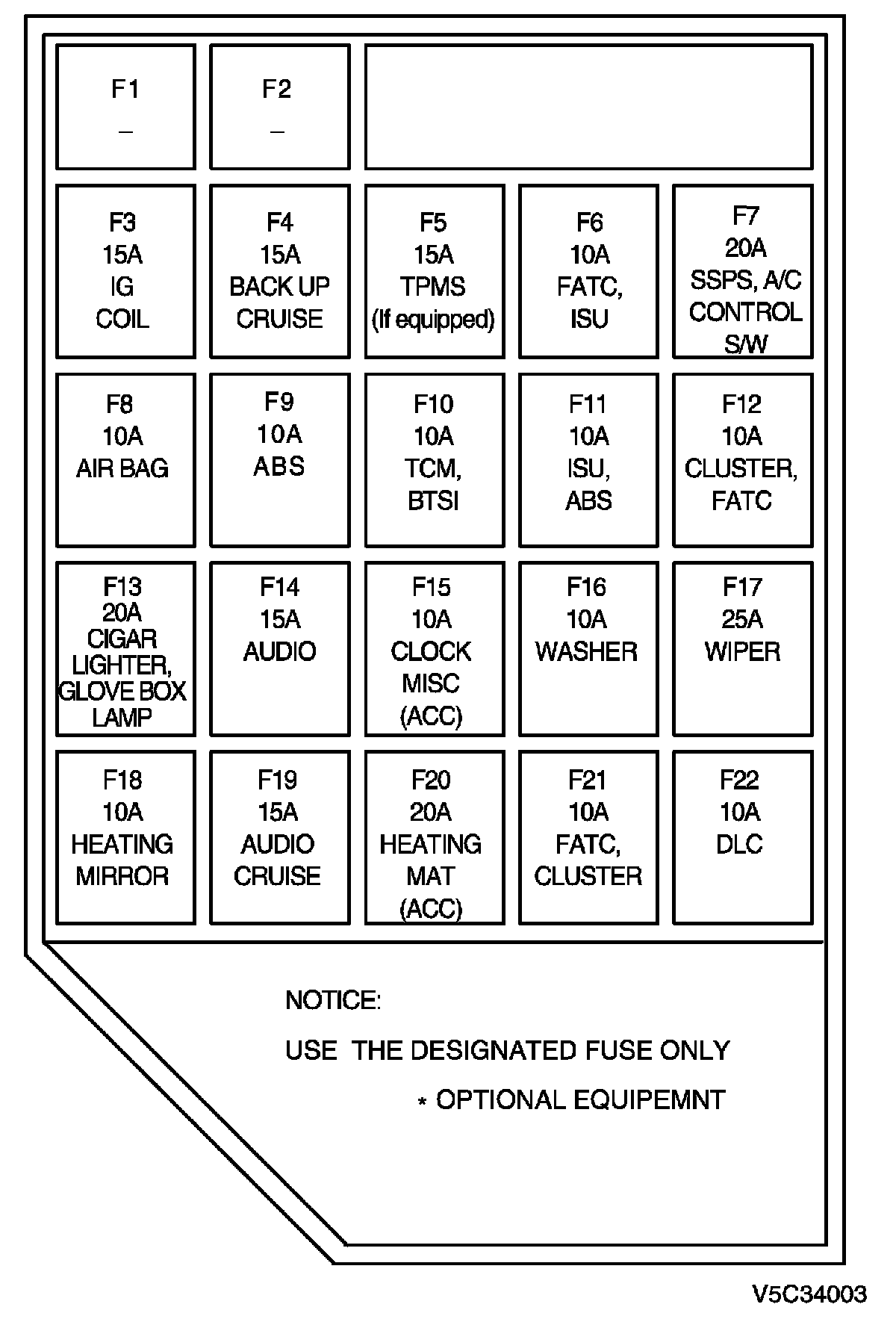

Location View:
POSITION OF
RELAY
AND FUSE

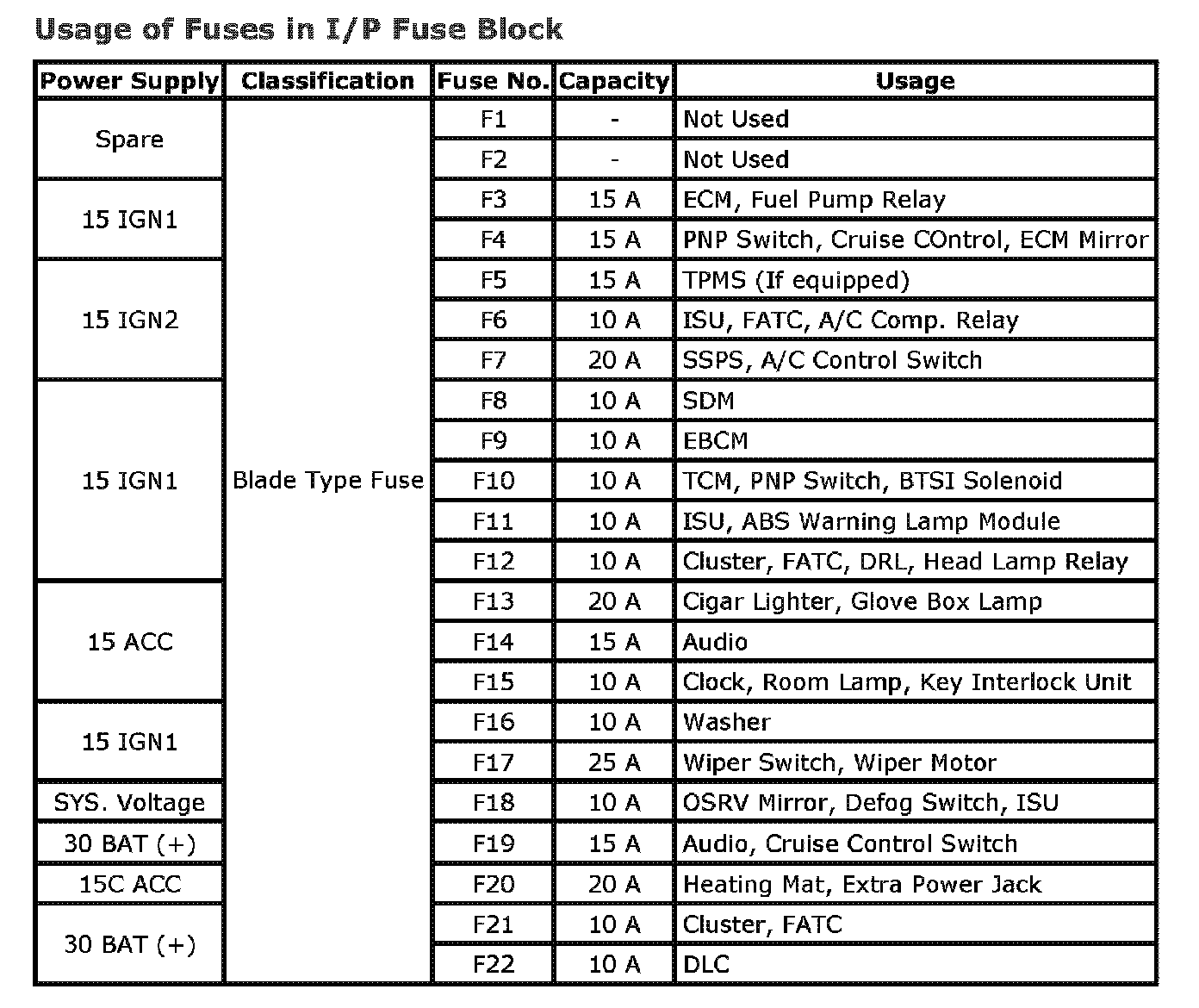

Usage Of Fuse In I/p Fuse Block:
USAGE OF FUSE IN I/P FUSE BLOCK
