Transaxle Control Module Circuit Wiring Diagram
Transaxle Control Module Circuit Wiring Diagram

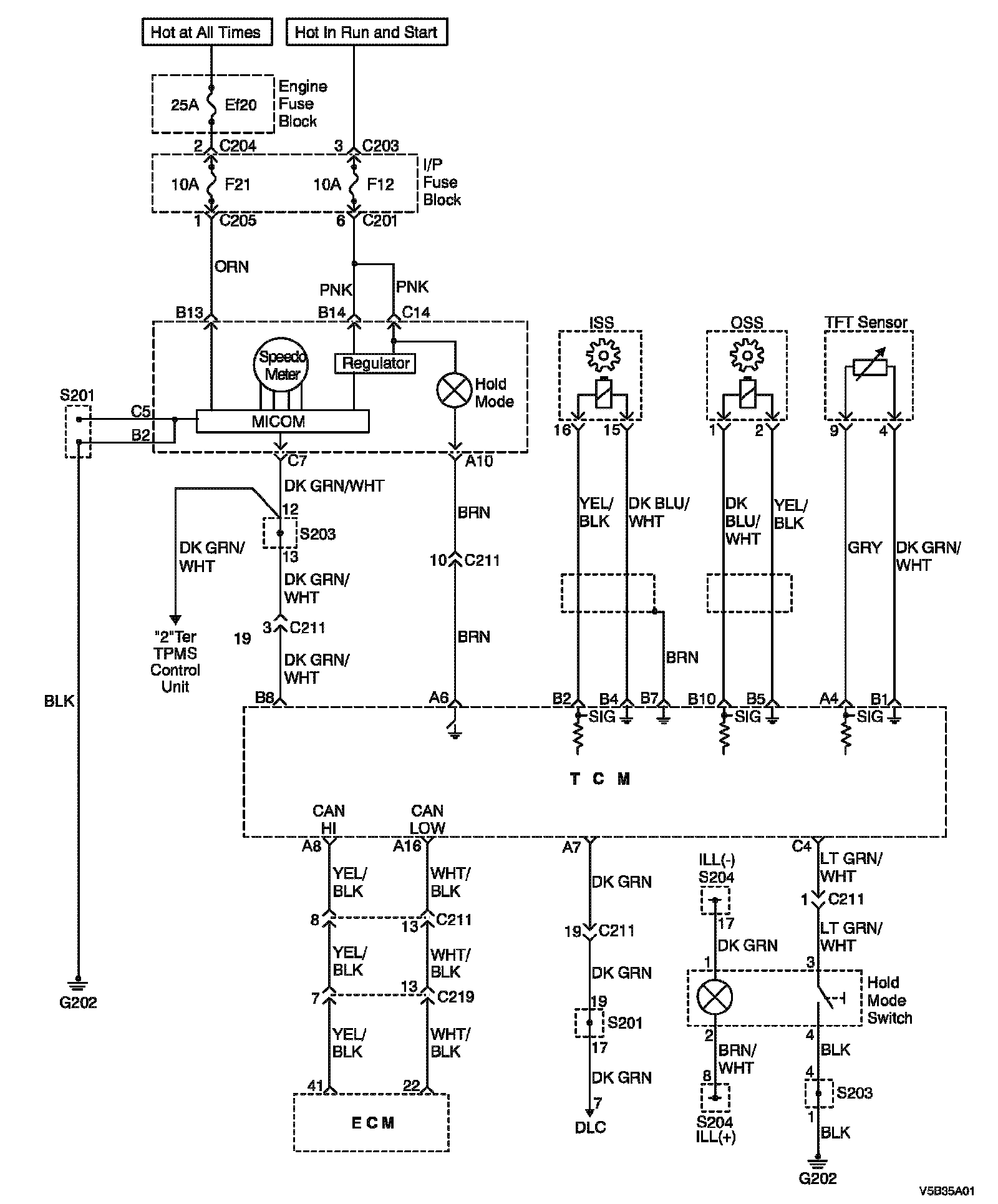

Transaxle Control Module Circuit Wiring Diagram Part 1:

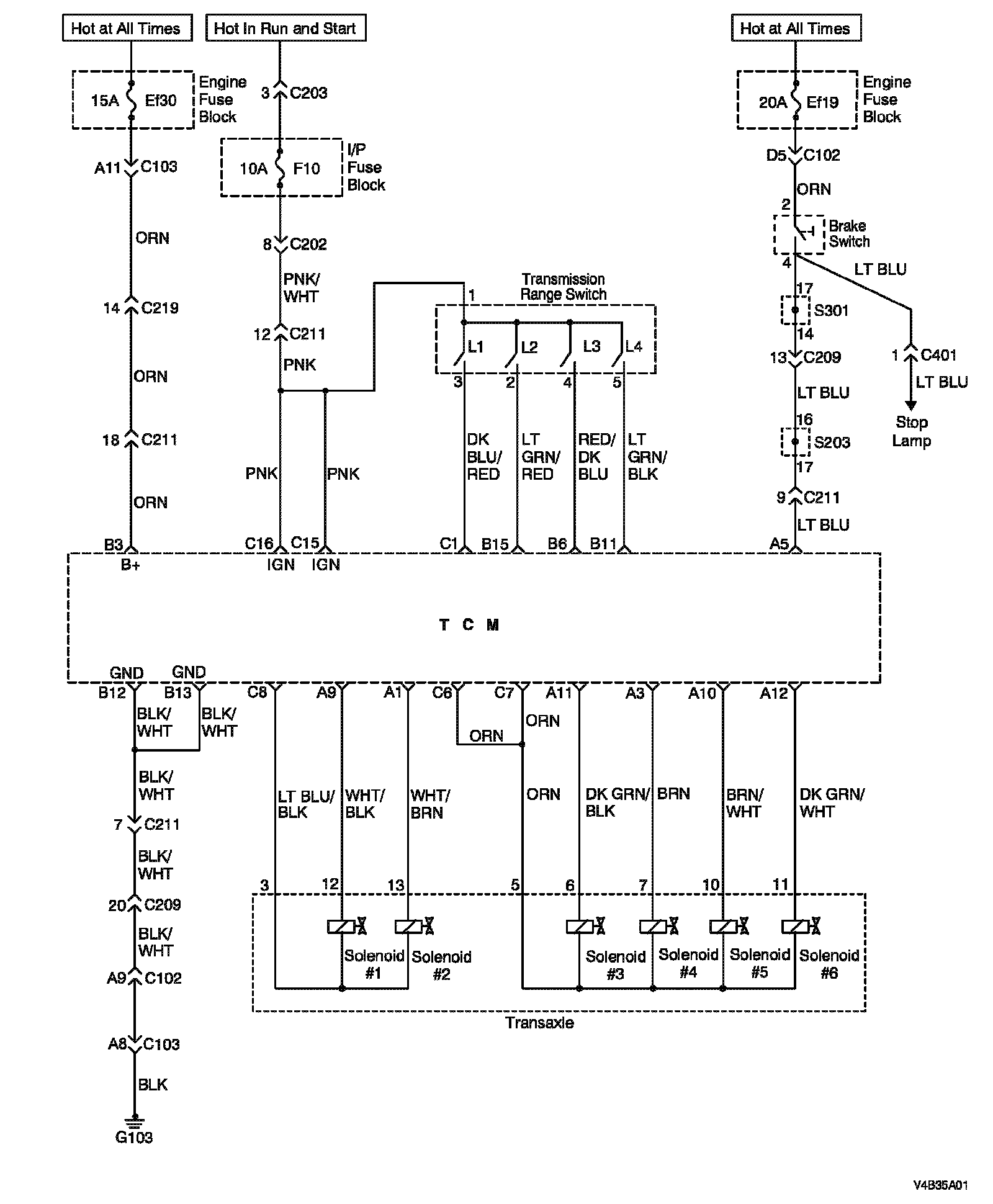

Transaxle Control Module Circuit Wiring Diagram Part 2:
