Electronic Brake Control Module
Electronic Brake Control Module
EBCM Harness Connector End View:

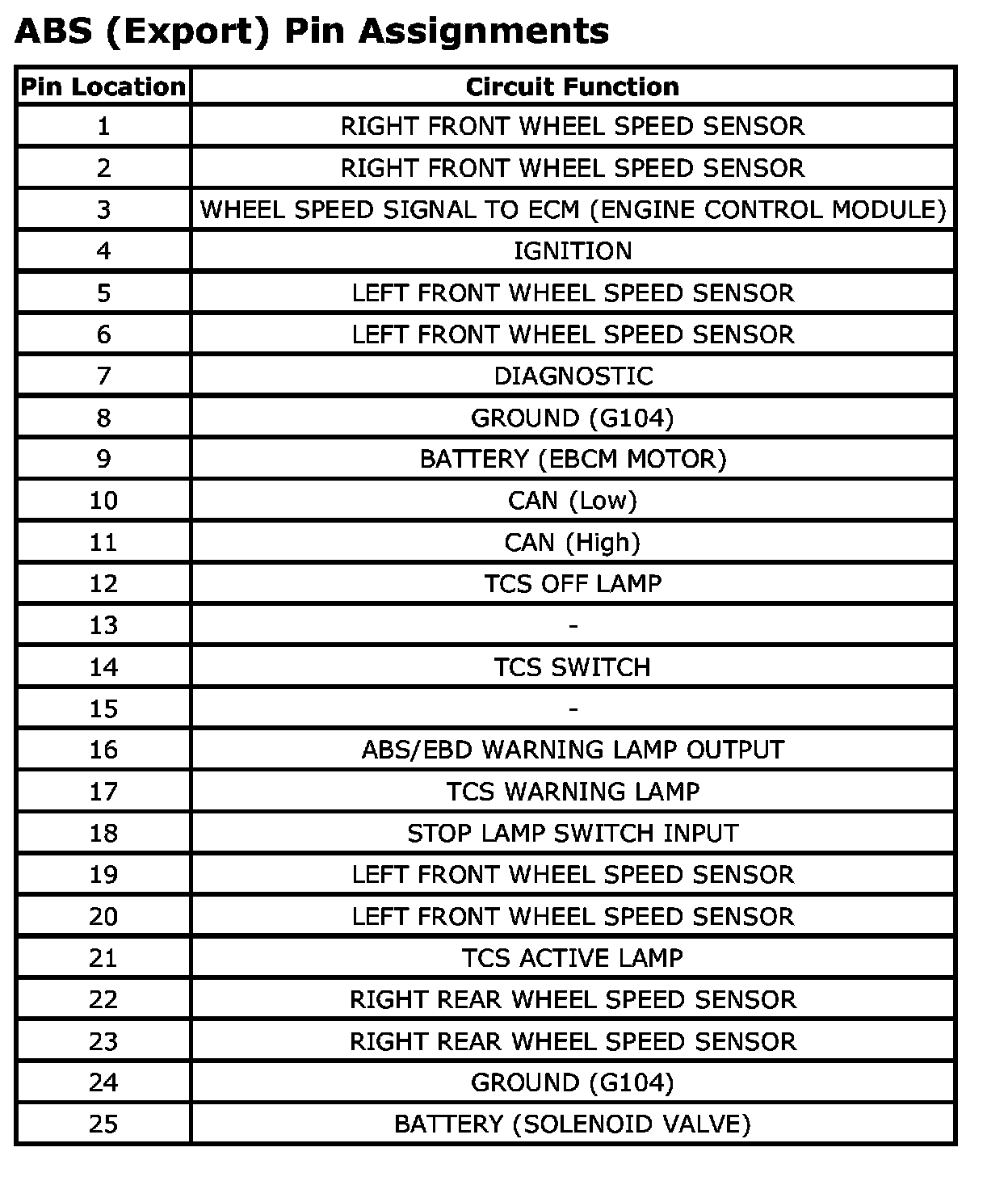

Pin Layout Diagram:
