Suzuki
>>
2005
>>
Forenza L4-2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations
Engine Room Relay and Fuse Block

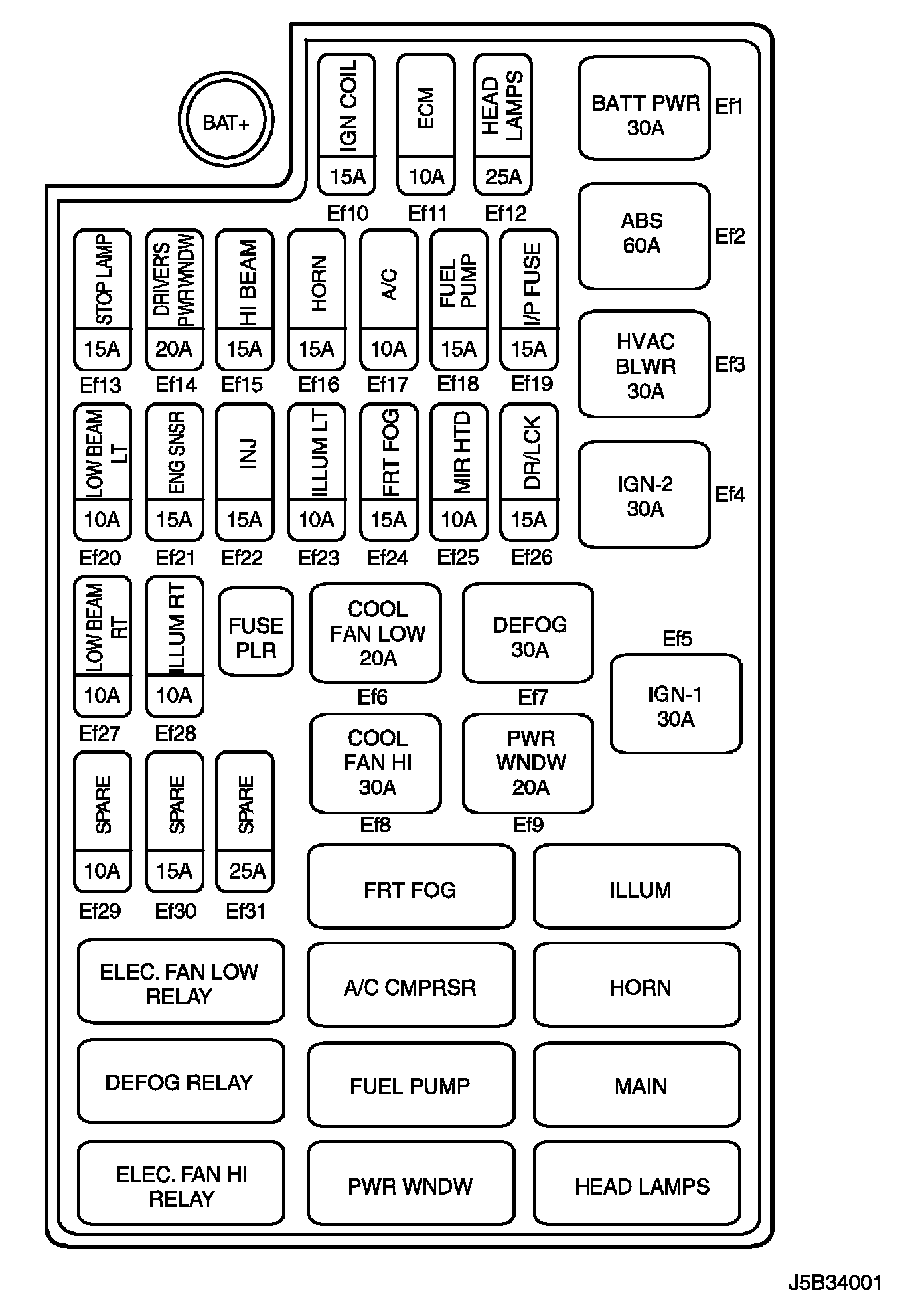

Position of Relay and Fuse:

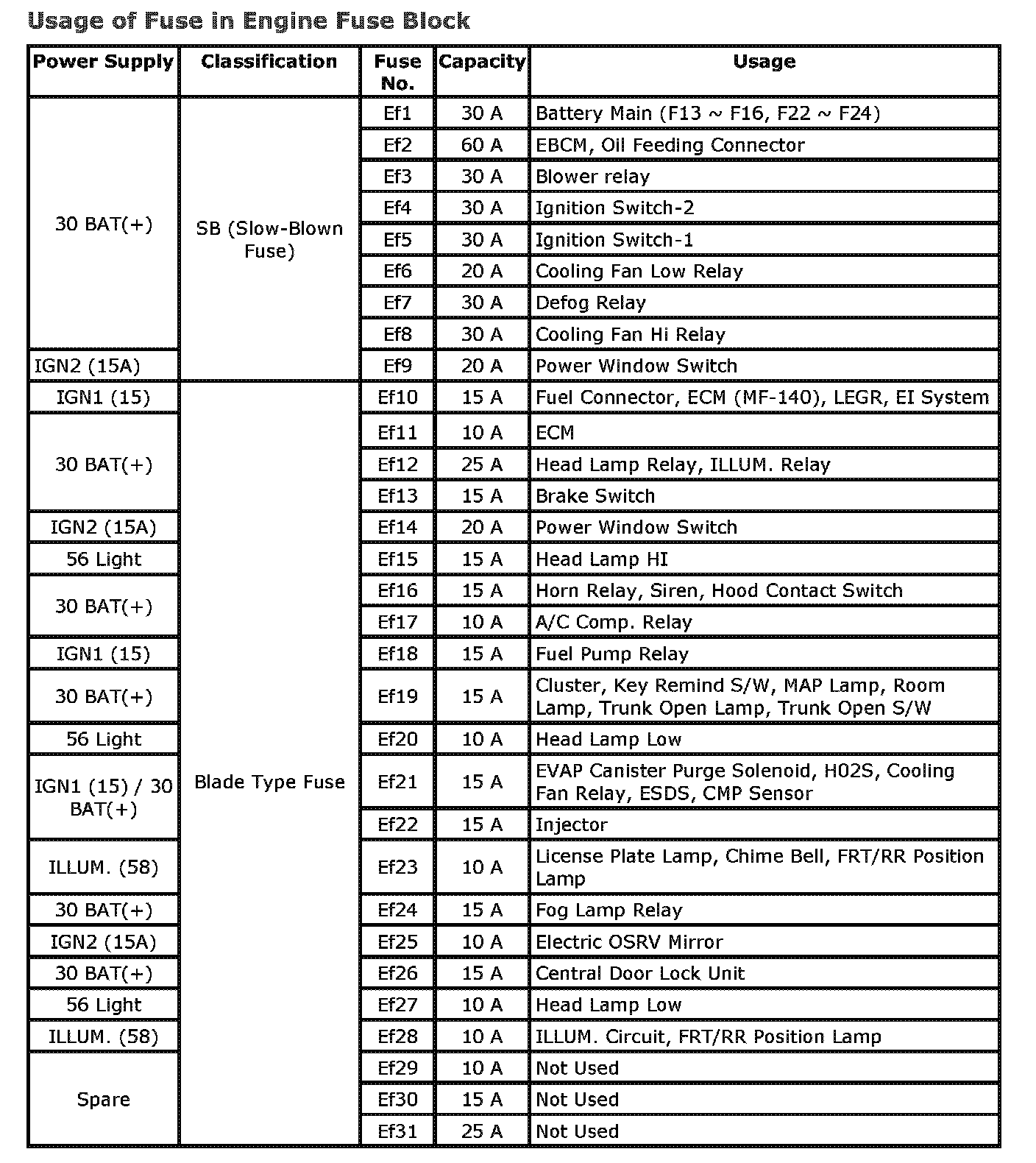

Usage of Fuse in Engine Fuse Block:
Position of Fuse and Relay:

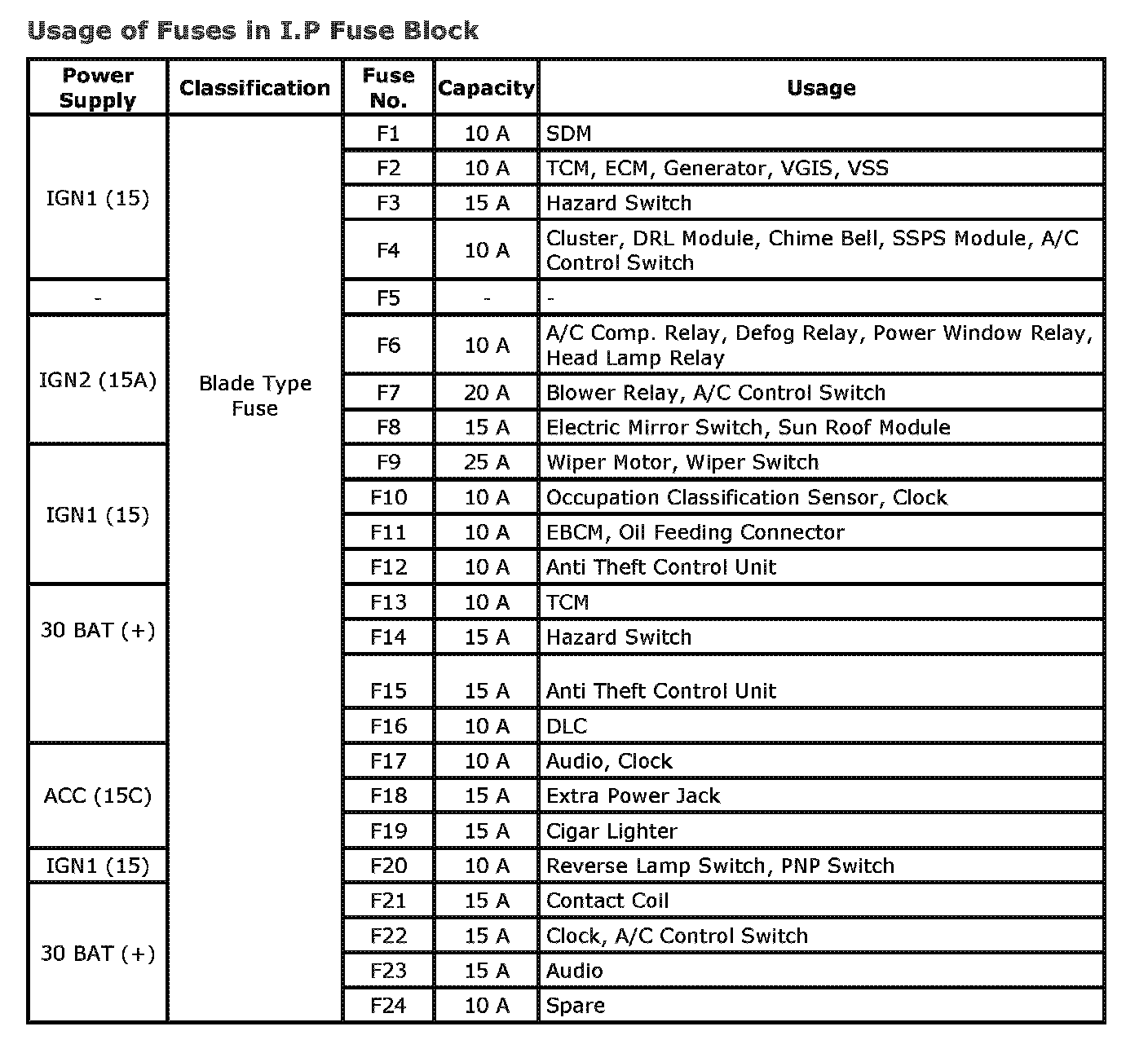

Usage of Fuses in I.P Fuse Block:
