Home >> Suzuki >> 2005 >> Forenza L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Conditioning Switch >> Locations

Air Conditioning Switch: Locations

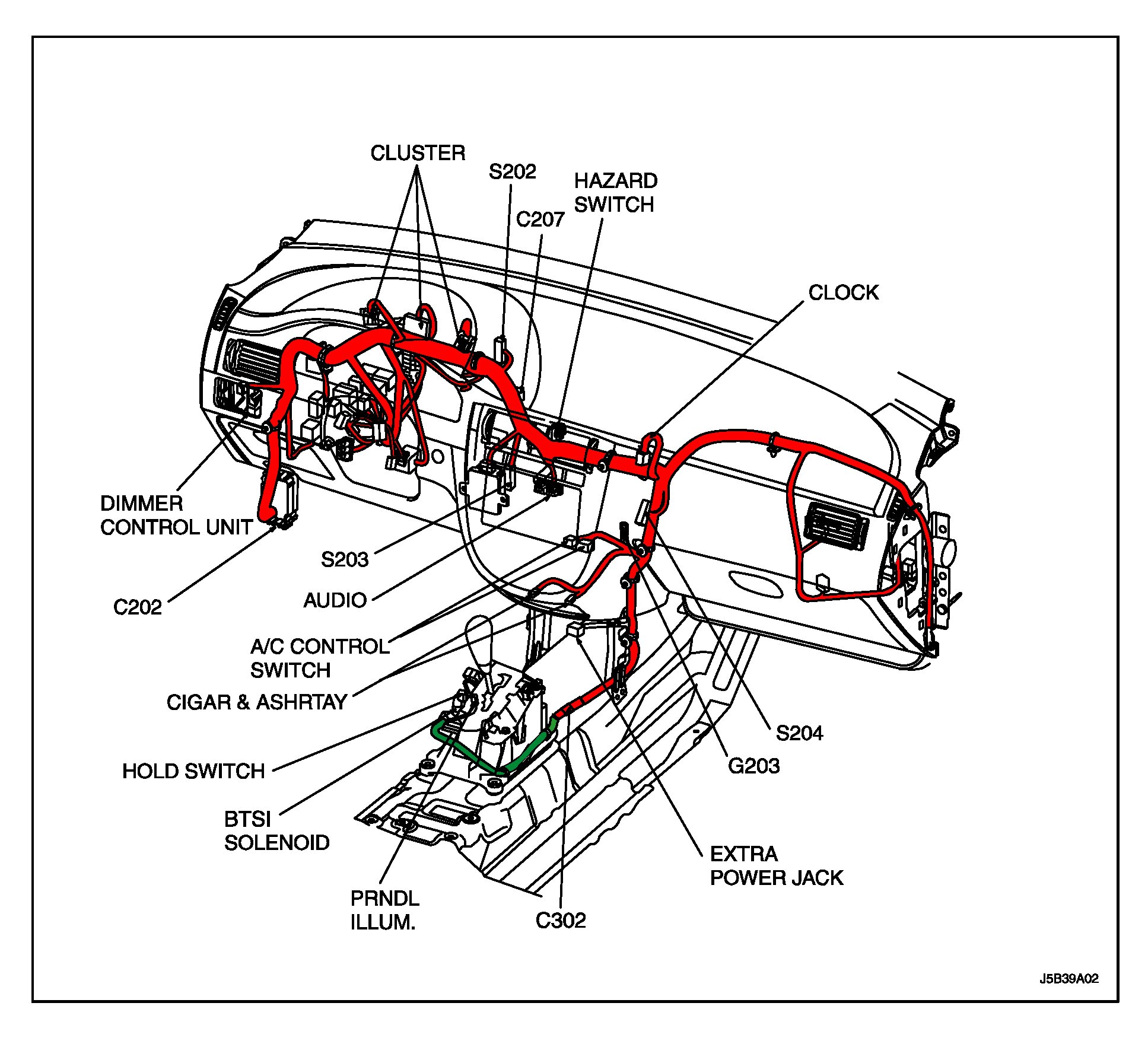

Instrument Harness Routing Diagram:
