Wagon

Tightening Torque Specifications

NOTE:
The specified tightening torque is also described in the following.

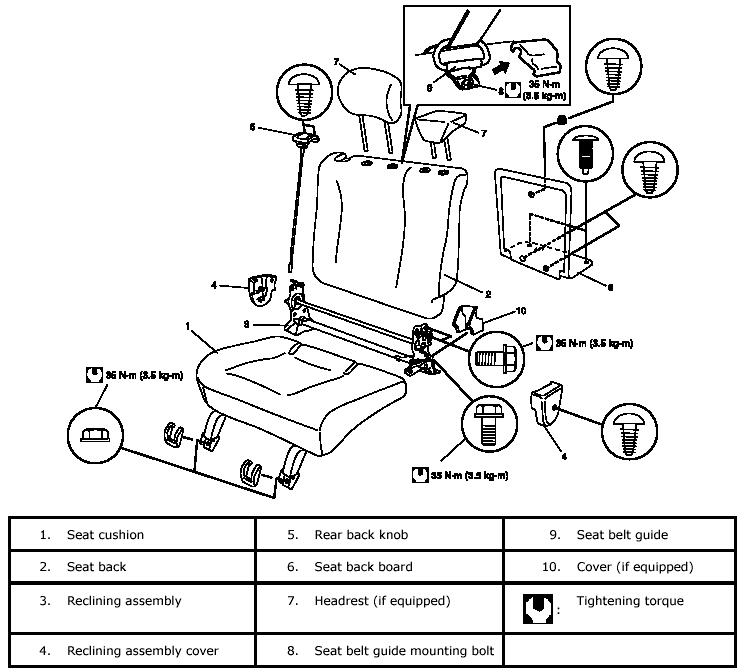

Front Seat Components:





Rear Seat Components:
