A/C Condenser Fan Control System Inspection
A/C Condenser Fan Control System Inspection
A/C Condenser Fan Control System Inspection

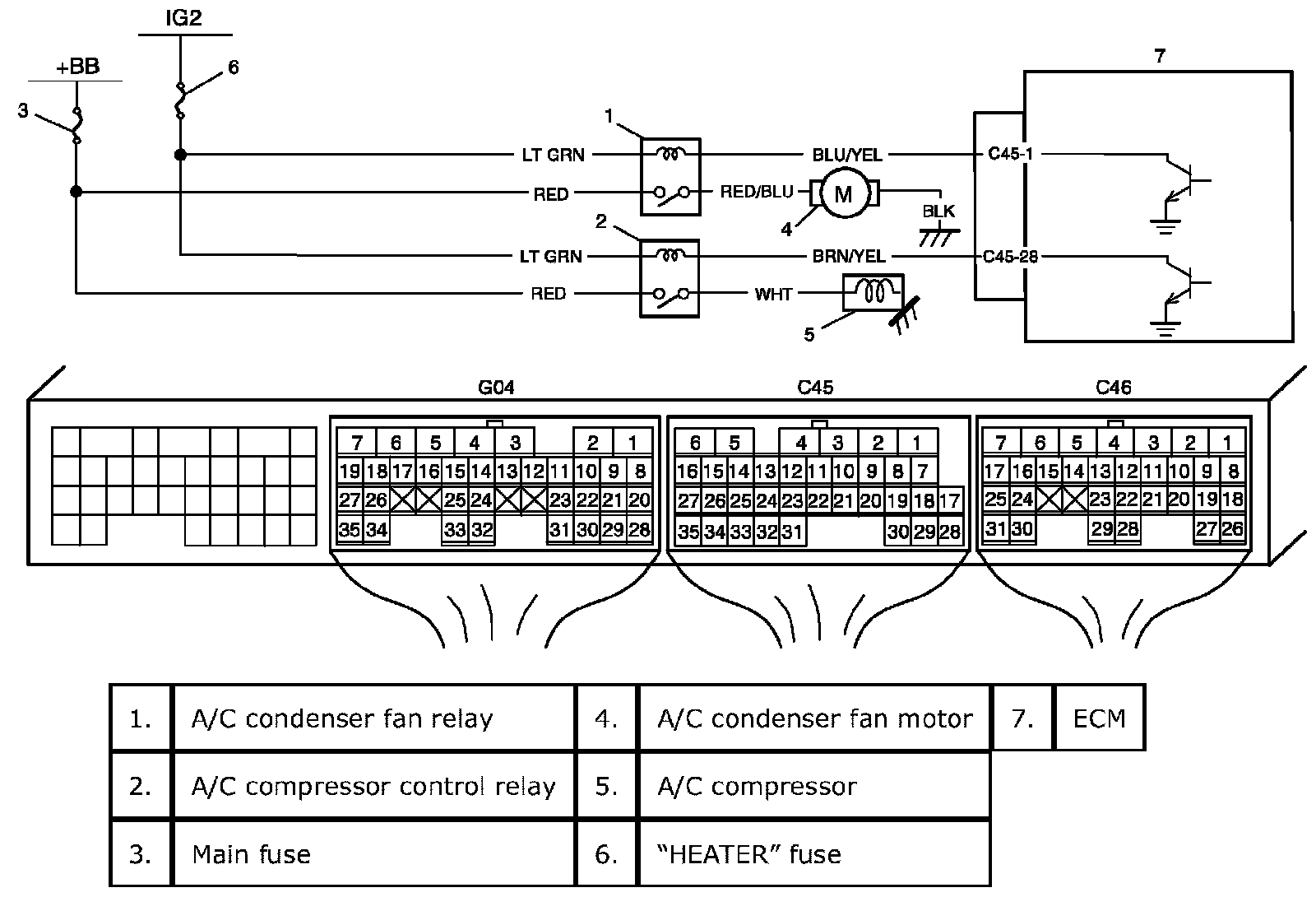

Wiring Diagram:
Wiring Diagram
Step 1 - 3:

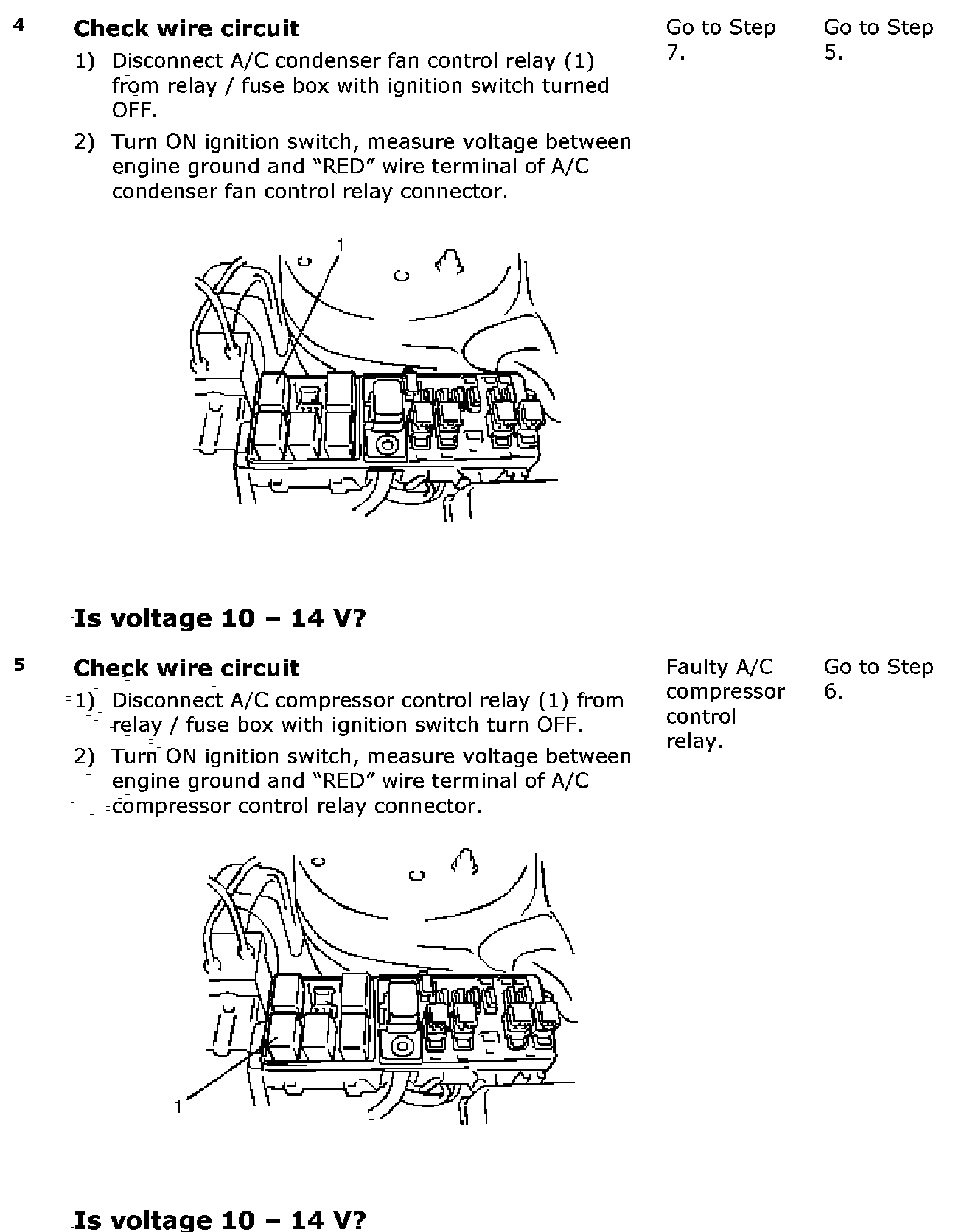

Step 4 - 5:

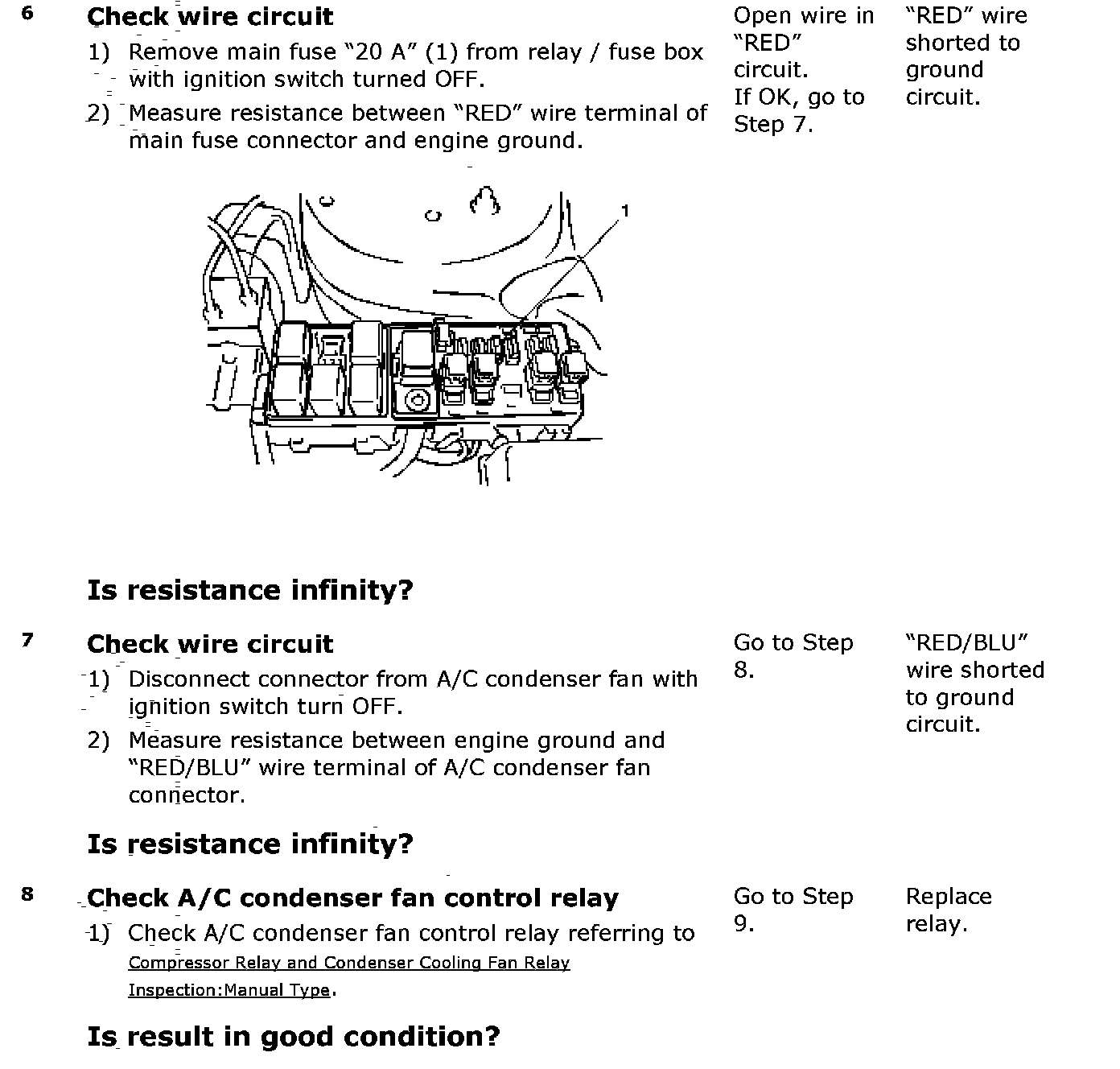

Step 6 - 8:

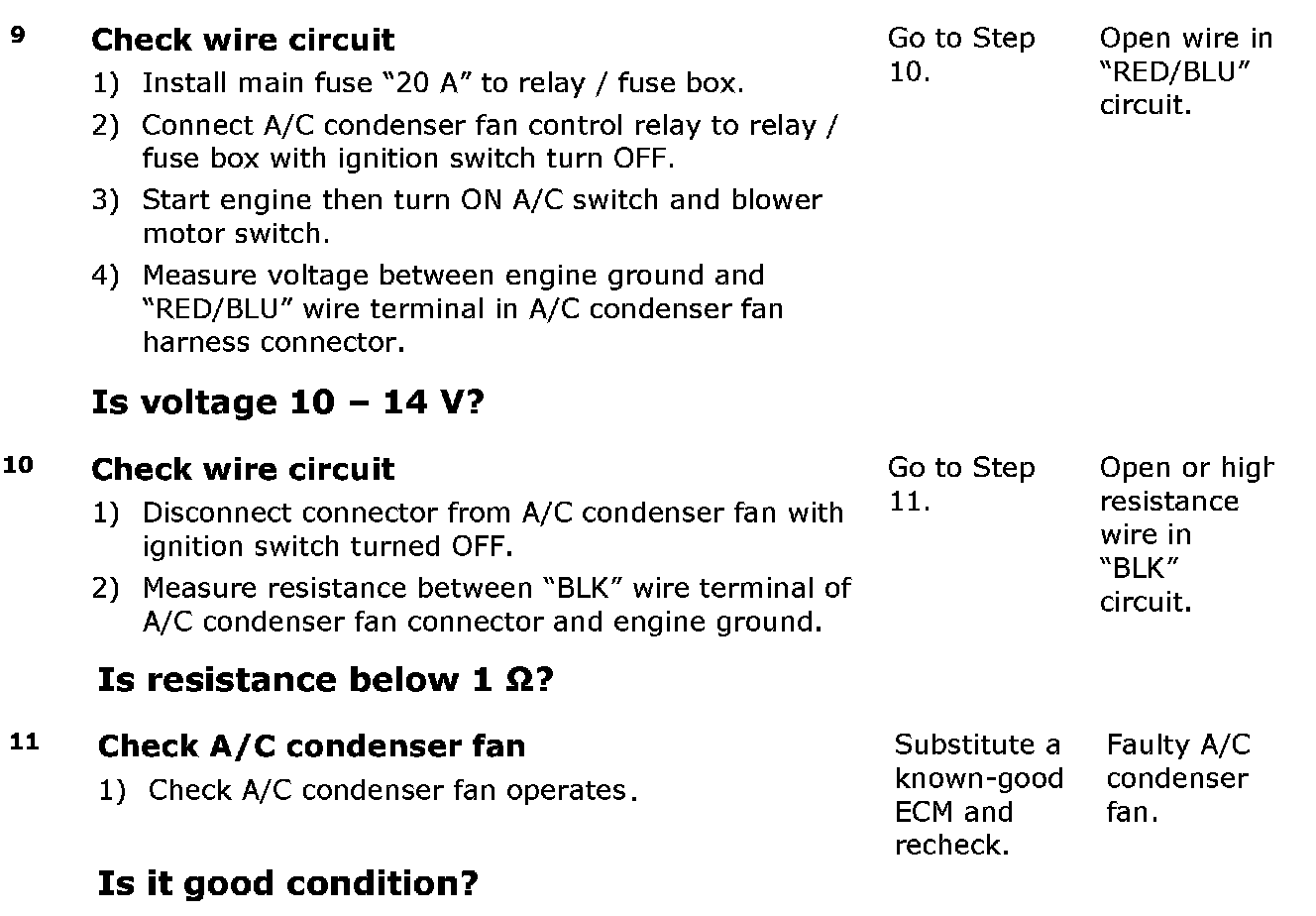

Step 9 - 11:
Troubleshooting
