Engine System Check: Notes

Numbers of each step correspond to the numbers of the items after this table. Refer to the following items for the detail of each step.

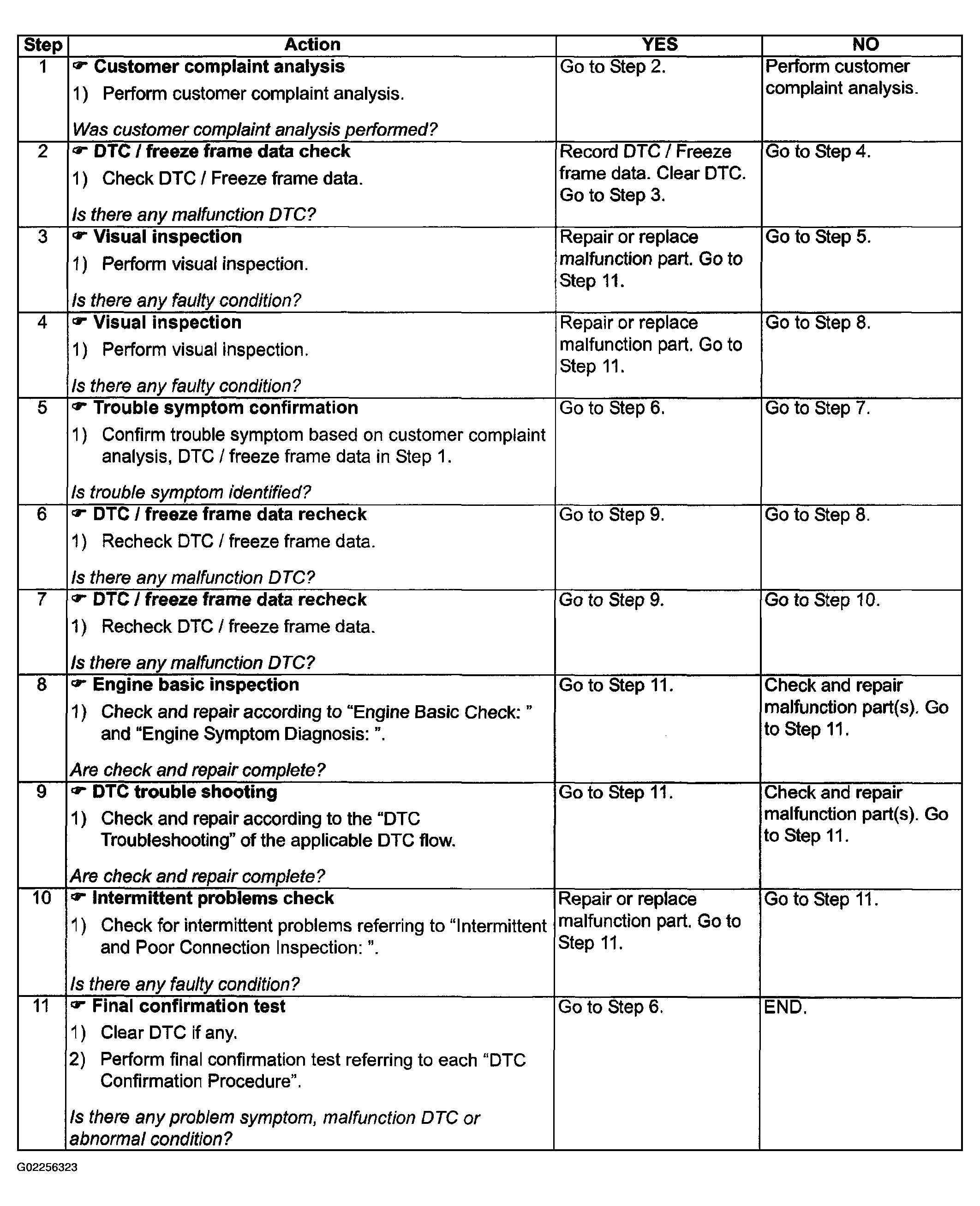

Fig 1: Engine System Check Diagnostic Procedure Chart
G02256323Courtesy of SUZUKI OF AMERICA CORP.
