Suzuki
>>
2004
>>
Verona L6-2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

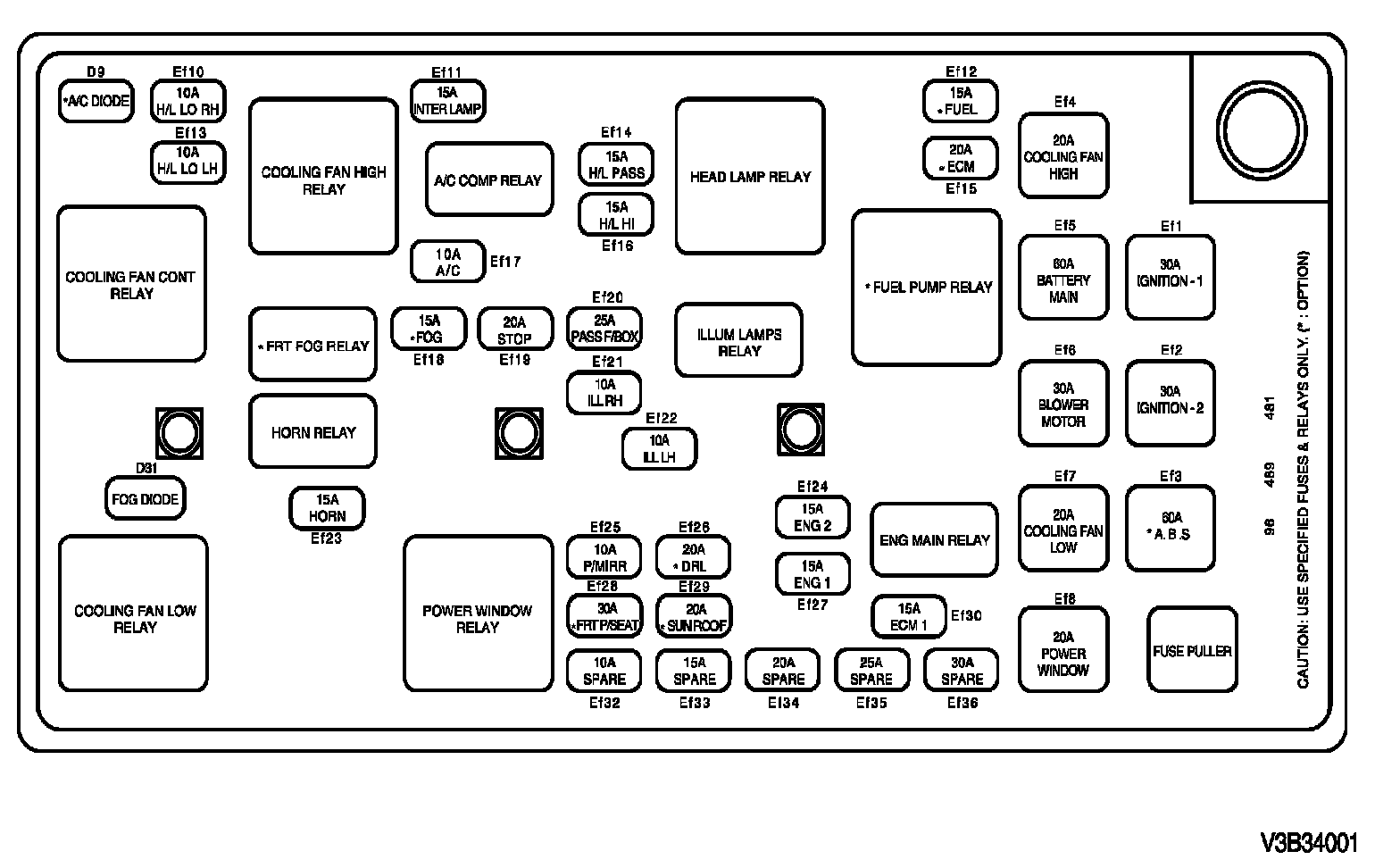

Fuse Location (Engine)
Fuse Location (Engine)

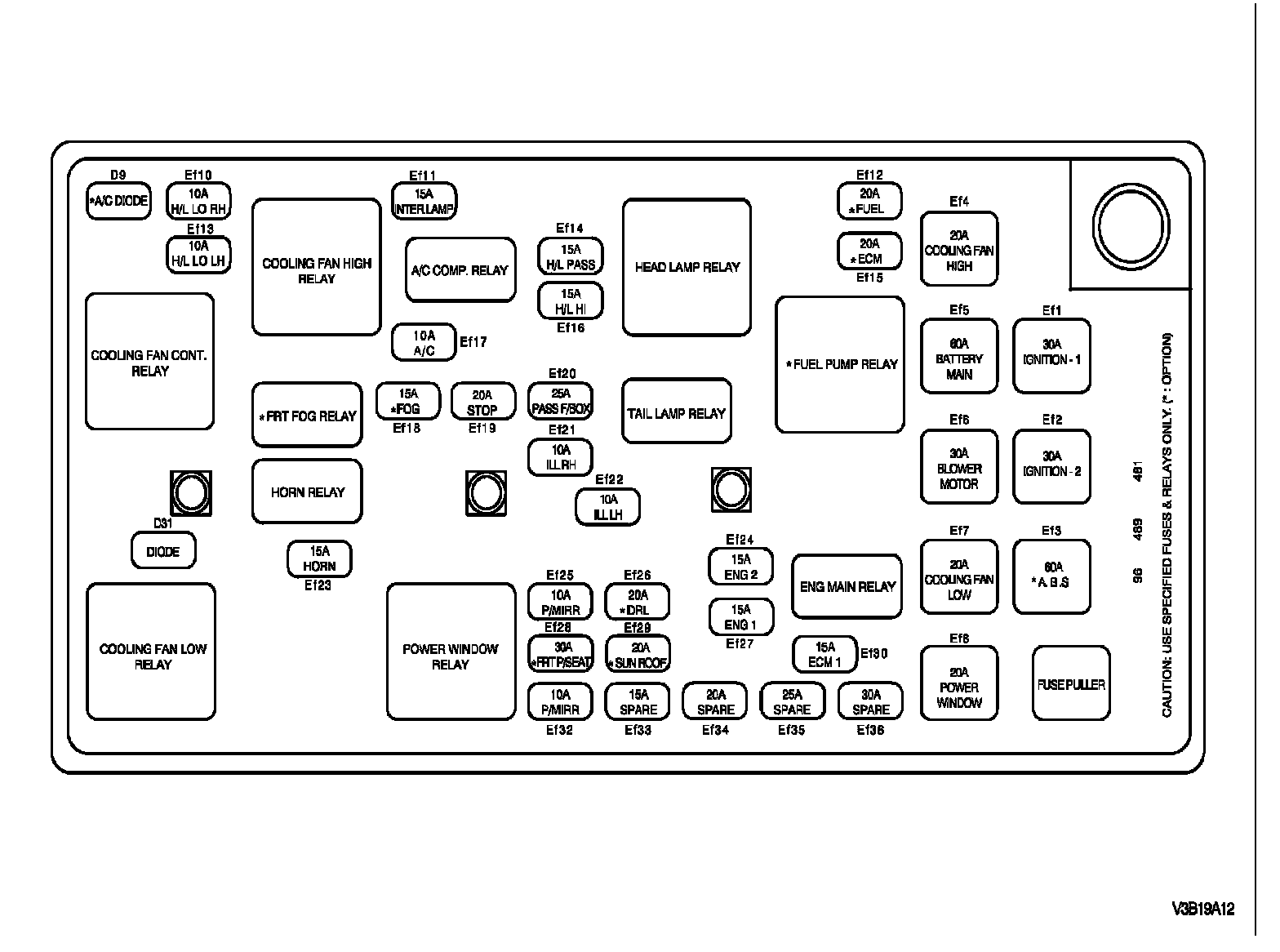

Front View:

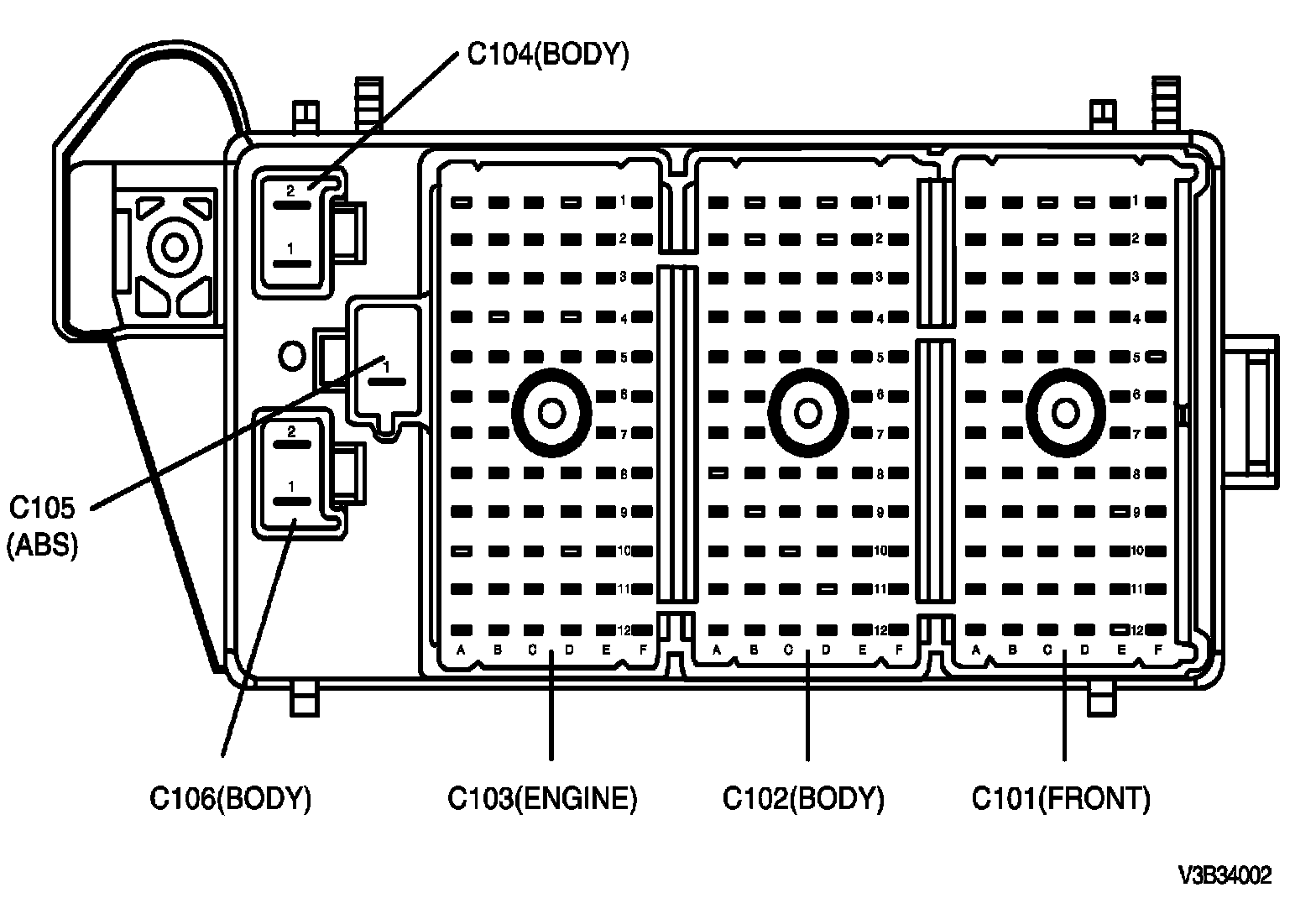

Rear View:
