Home >> Suzuki >> 2004 >> Verona L6-2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Control Module, A/T

Control Module, A/T

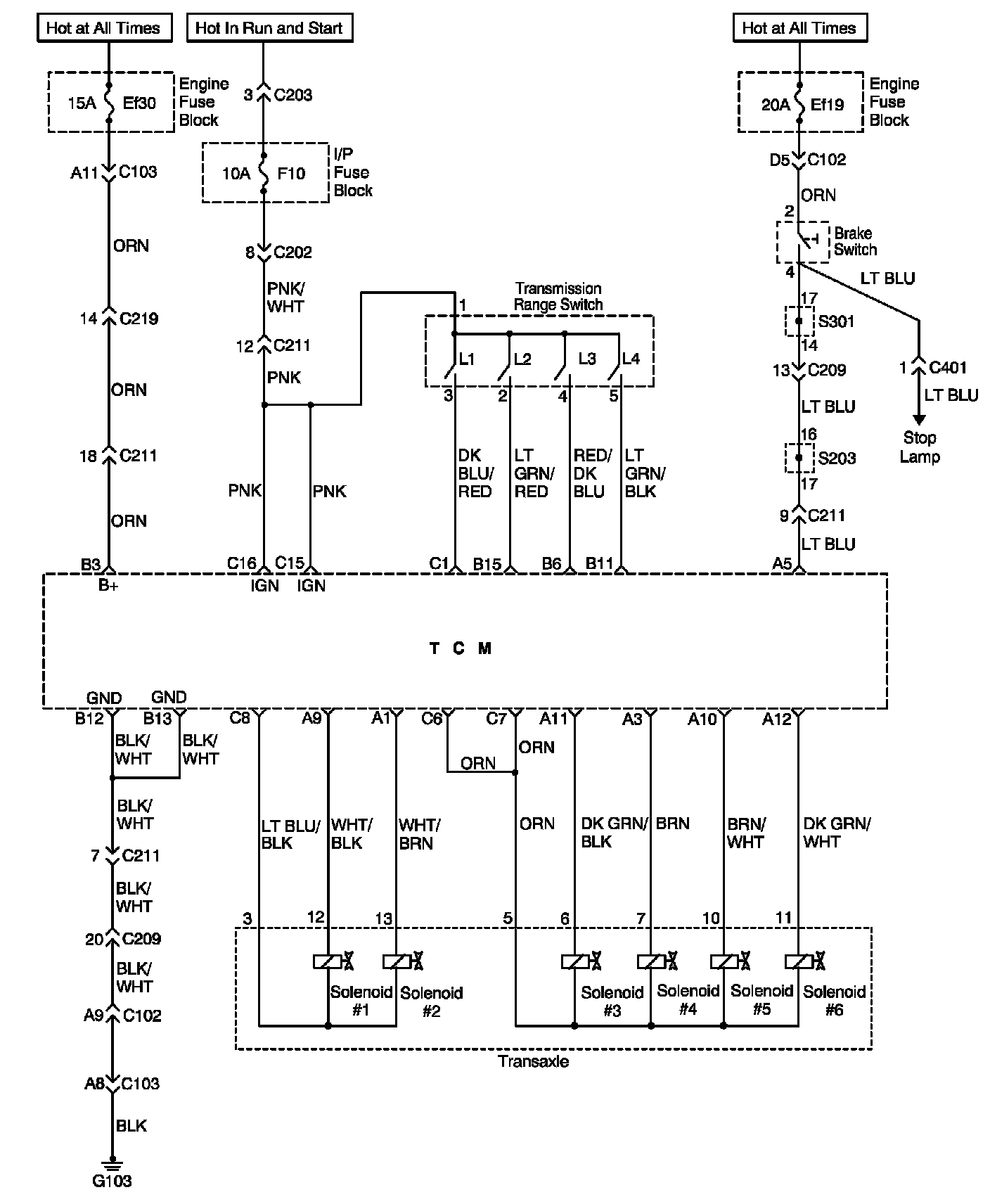

Part 1:

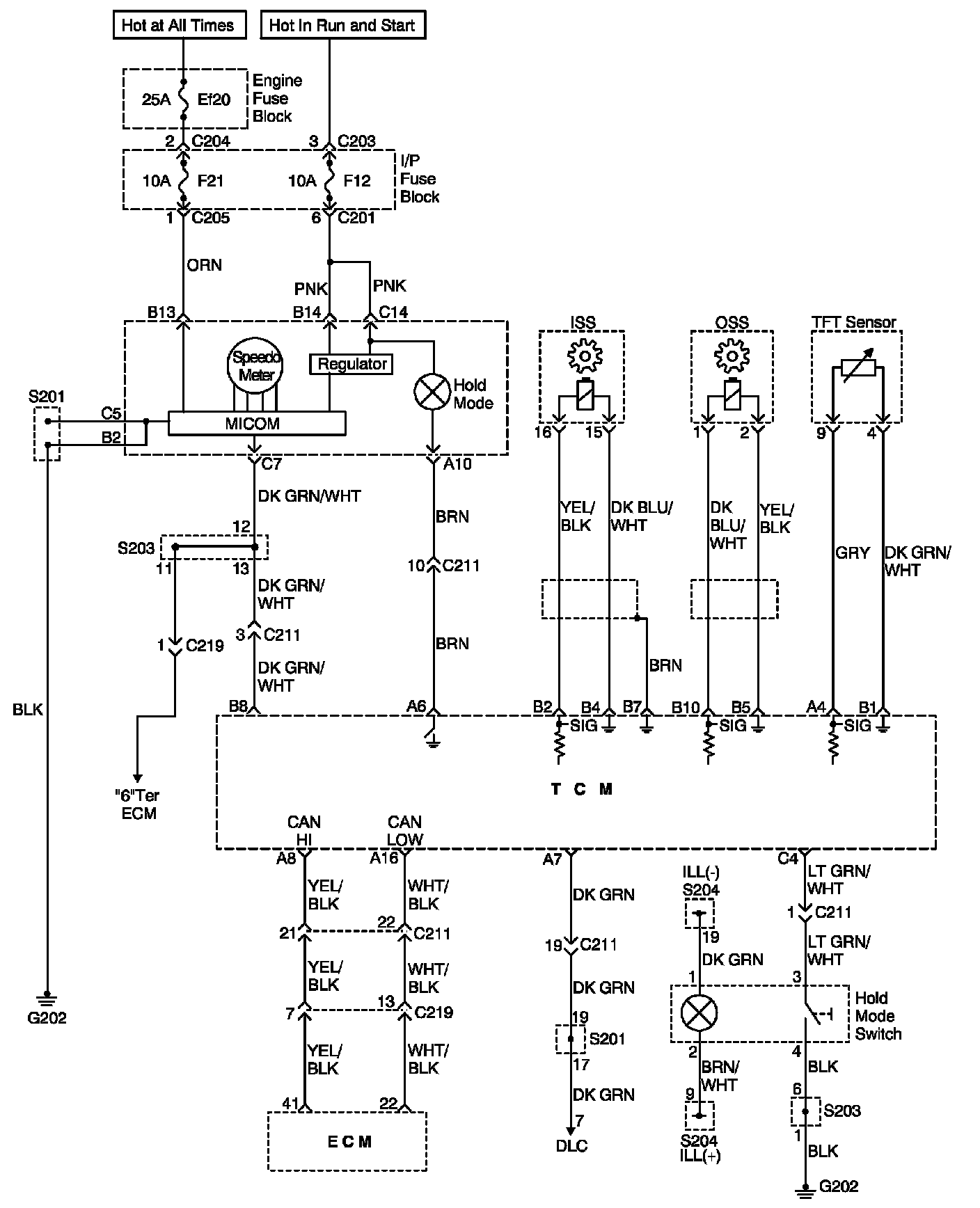

Part 2:
