Power Window Sub Switch Inspection

Power Window Sub Switch Inspection

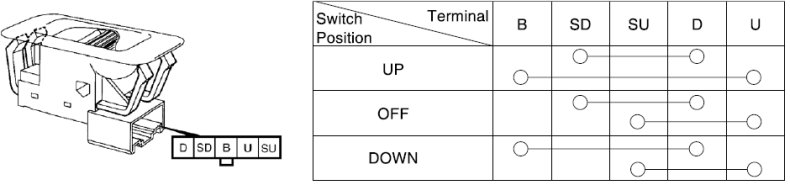

Check for continuity between terminals at each switch condition.
If check result is not as specified, replace switch.
