Home >> Suzuki >> 2004 >> Aerio L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> L Connectors

L Connectors

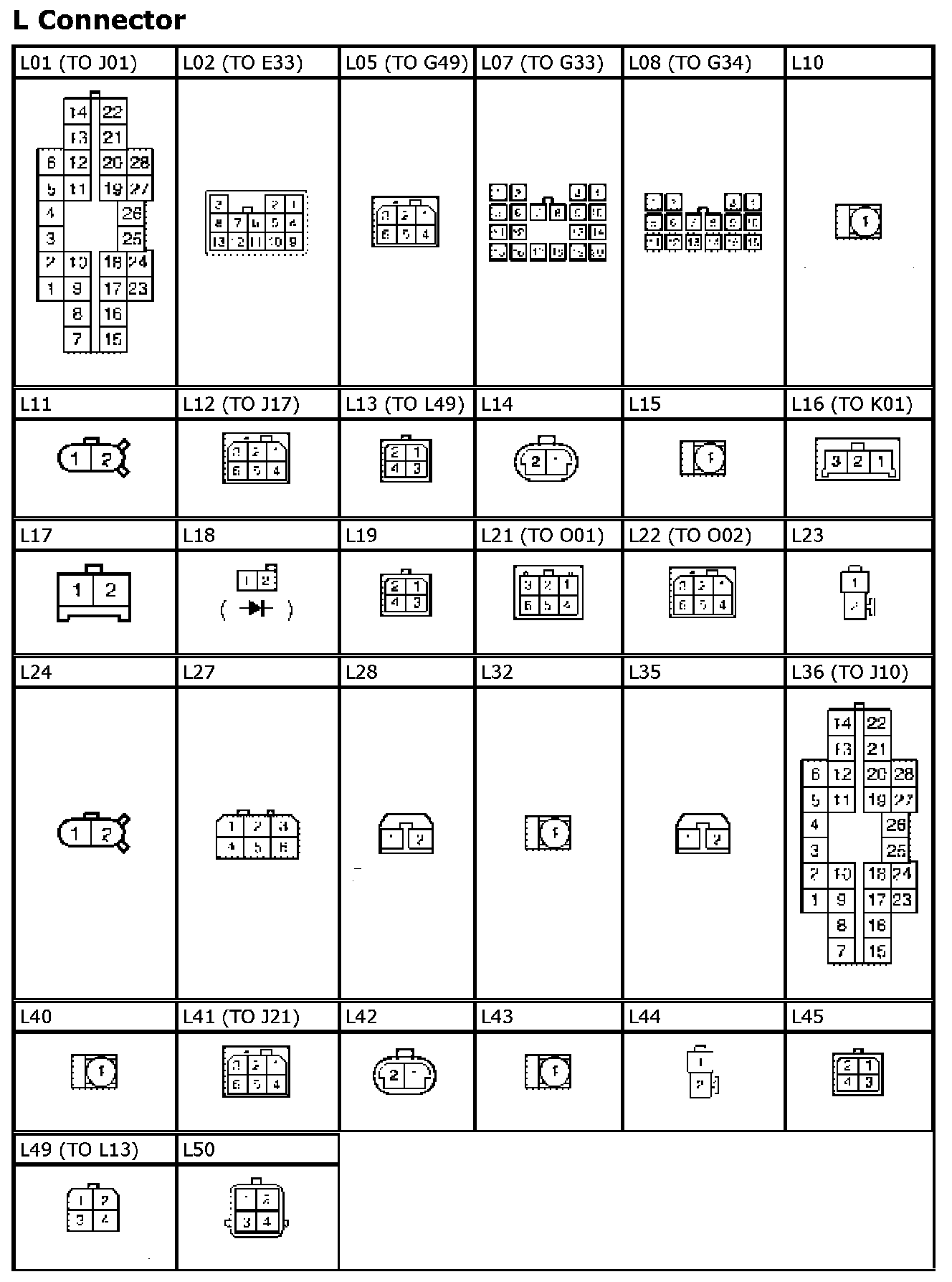

L01 (TO J01) - L50:



L70 - L106:
