Main Switch
Main Switch

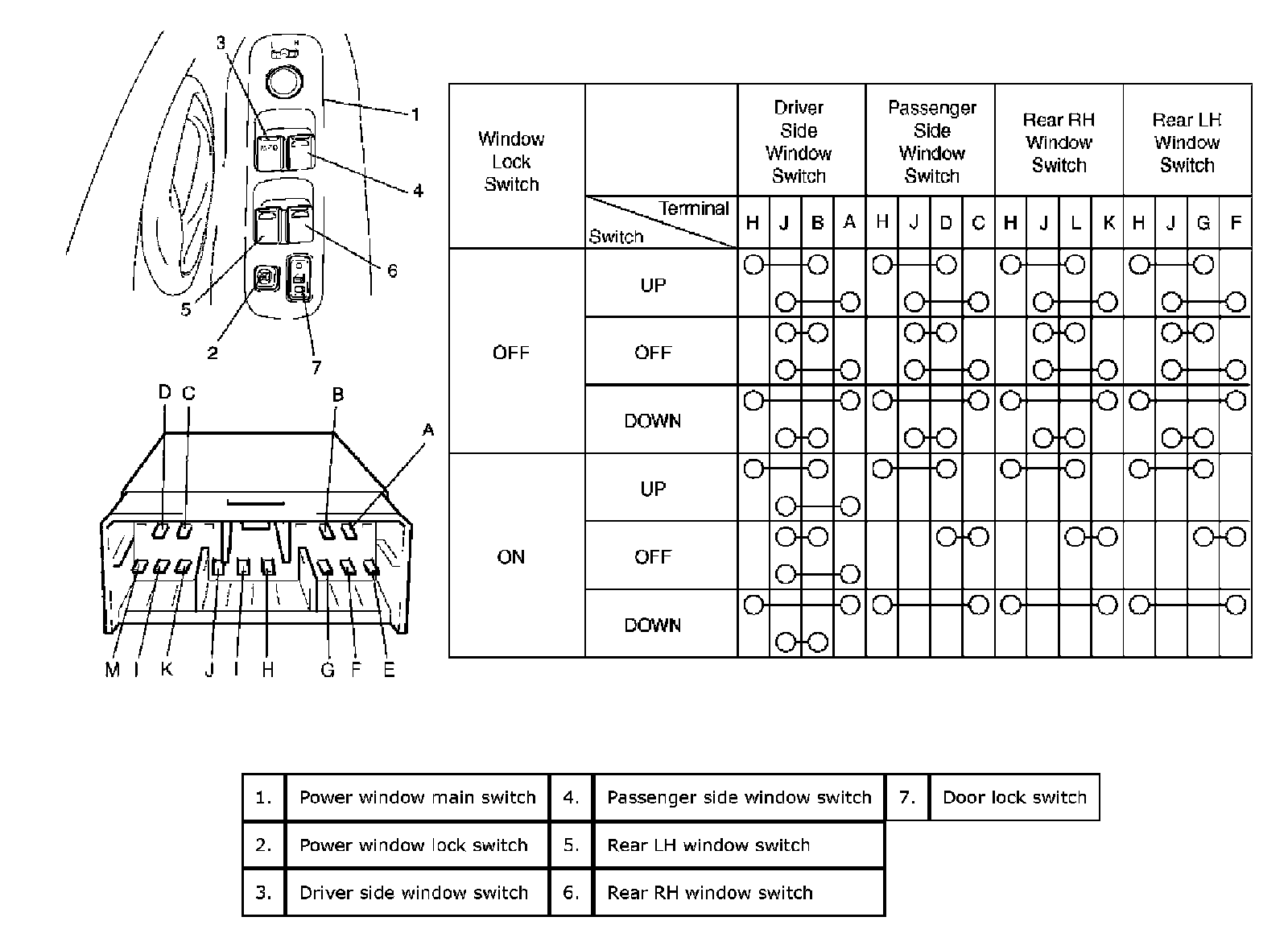

POWER WINDOW MAIN SWITCH INSPECTION
Inspect switch continuity between terminals.
