Home >> Suzuki >> 2003 >> Vitara 2WD L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Component Tests and General Diagnostics >> Ignition System Check

Ignition System Check

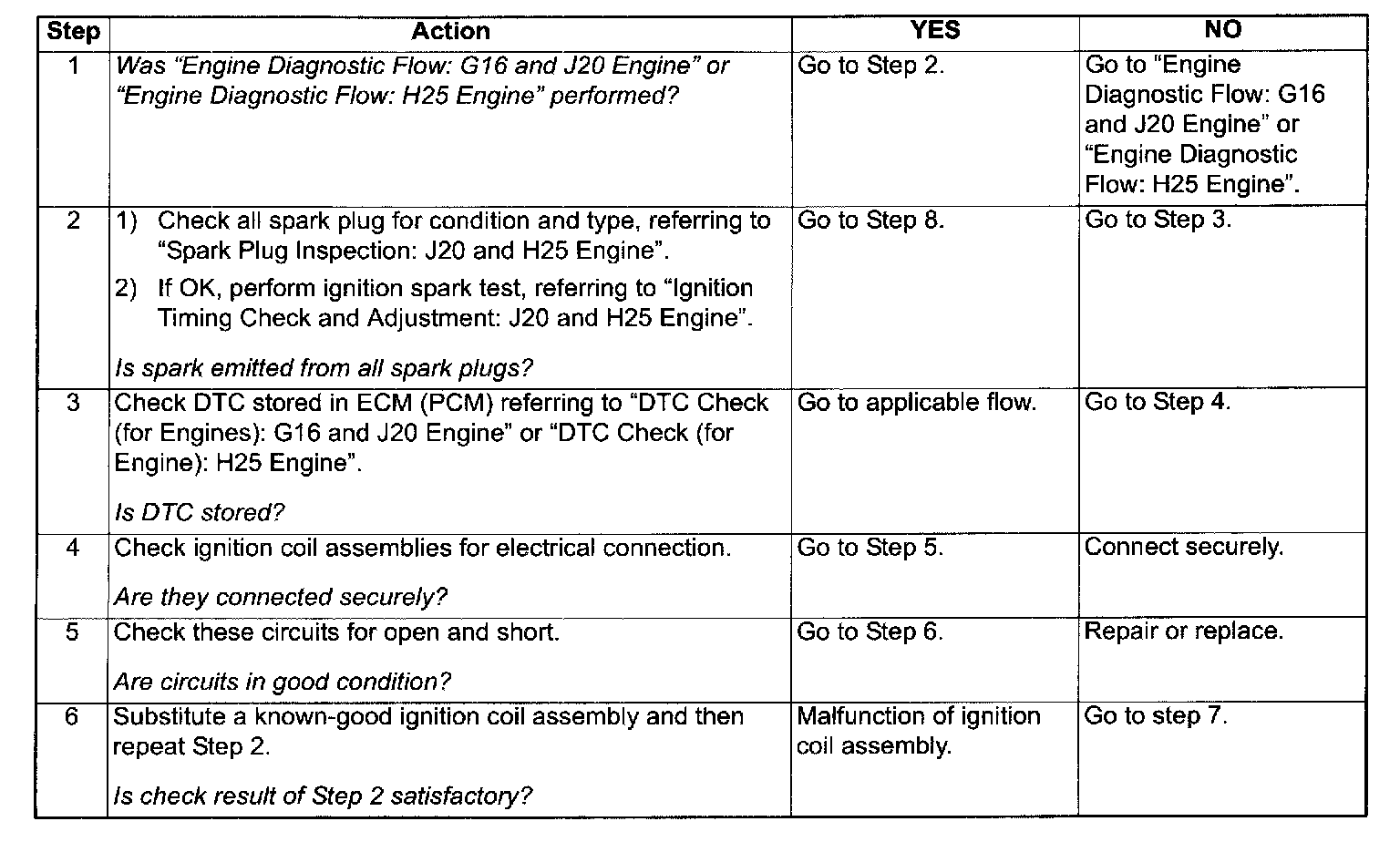

Step 1 - 6:

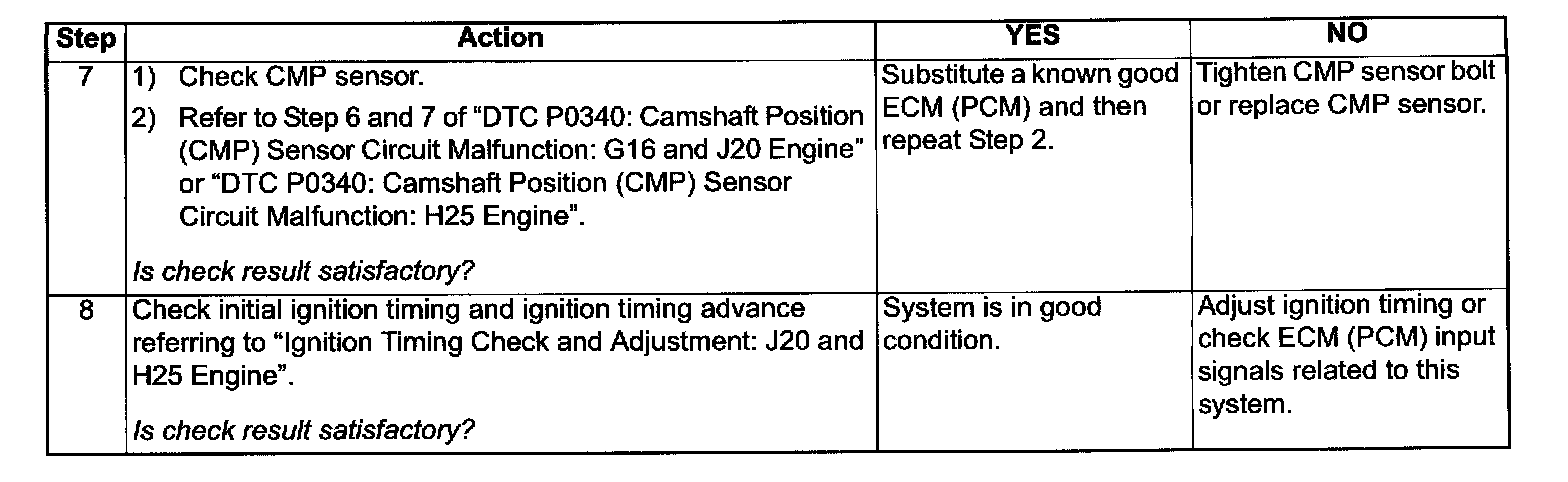

Step 7 - 8:
