Front

BRAKE HOSE/PIPE REPLACEMENT W/ RELATED COMPONENTS

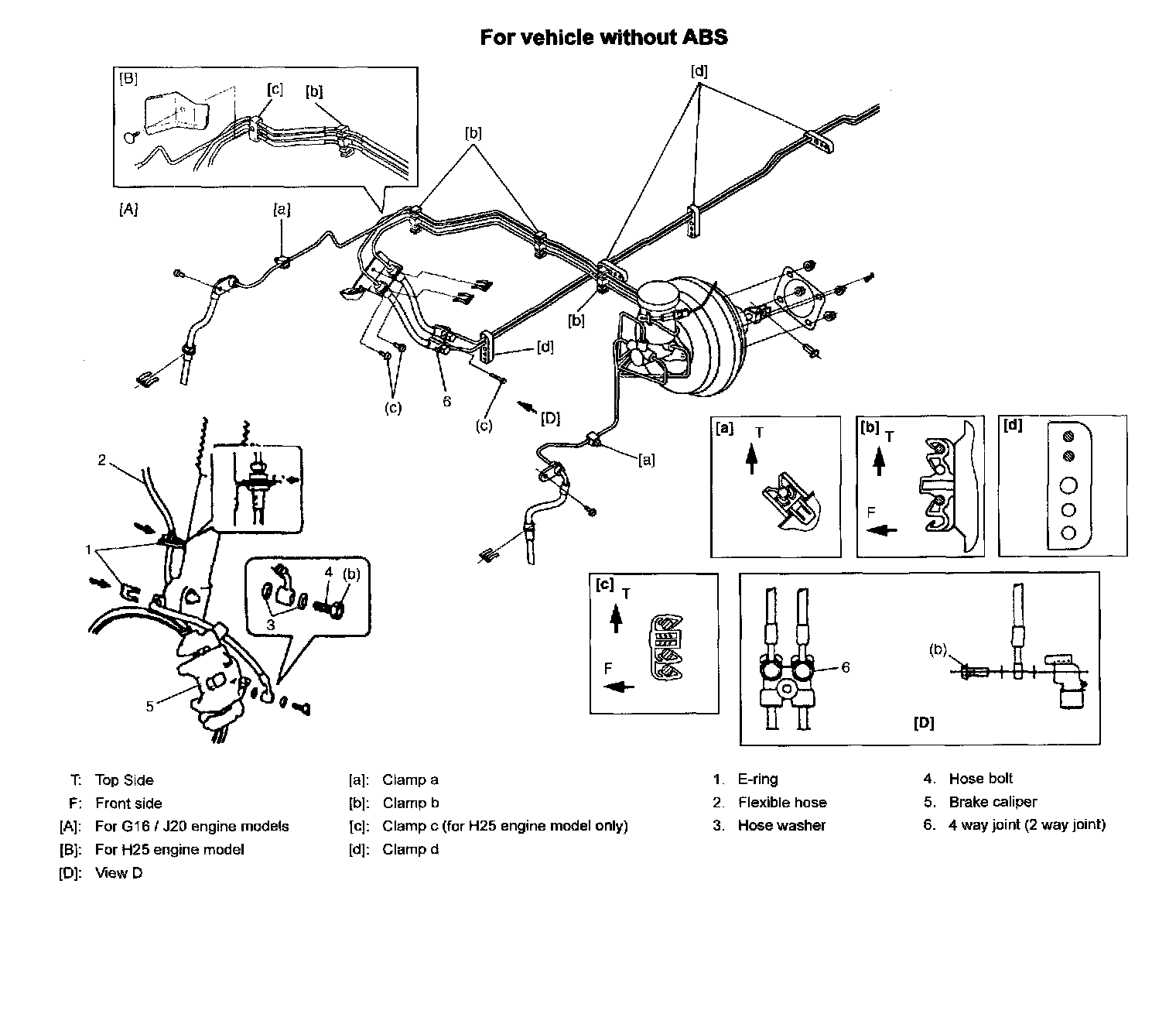

For vehicle without ABS

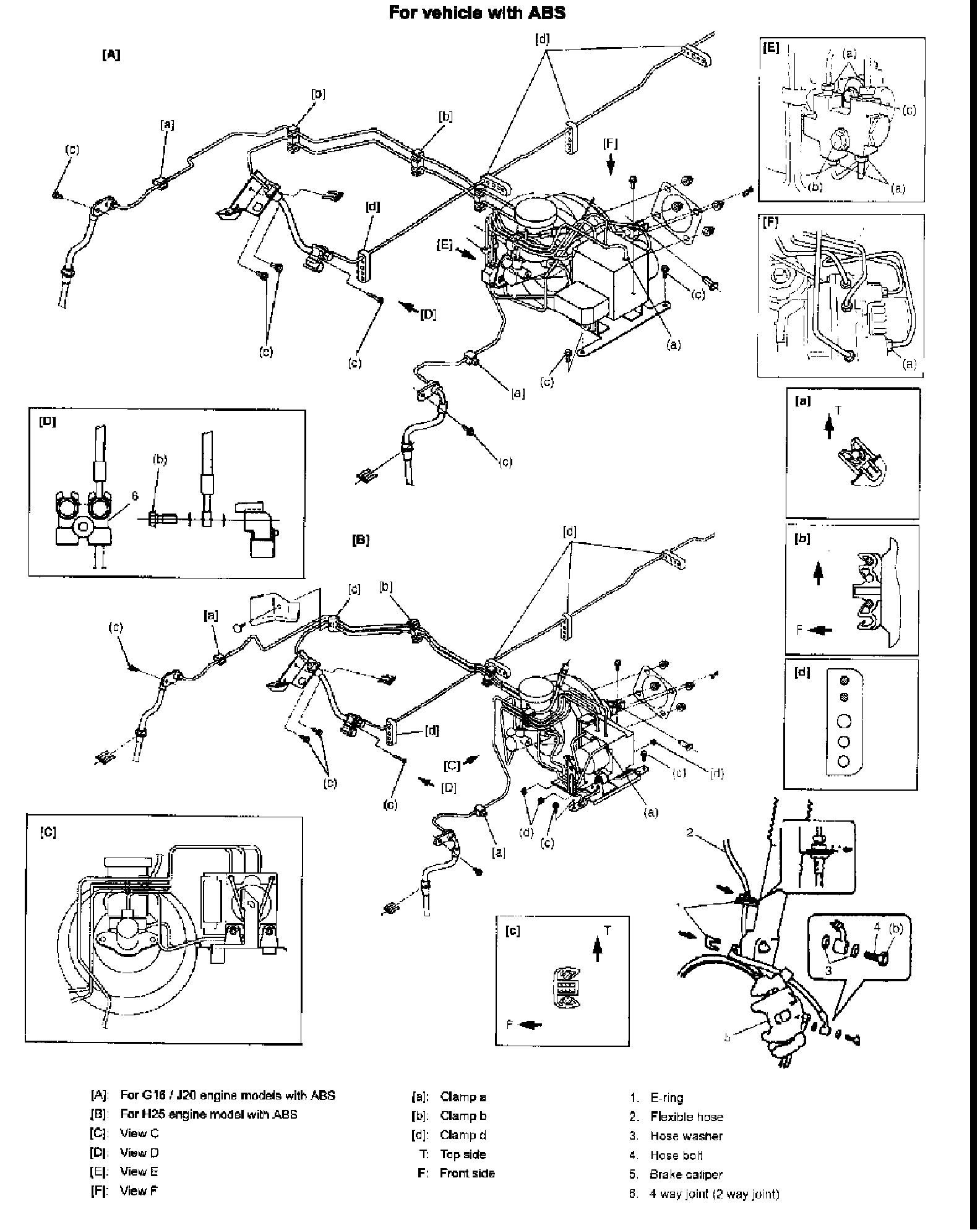

For vehicle with ABS
