Power Window Main Switch Inspection

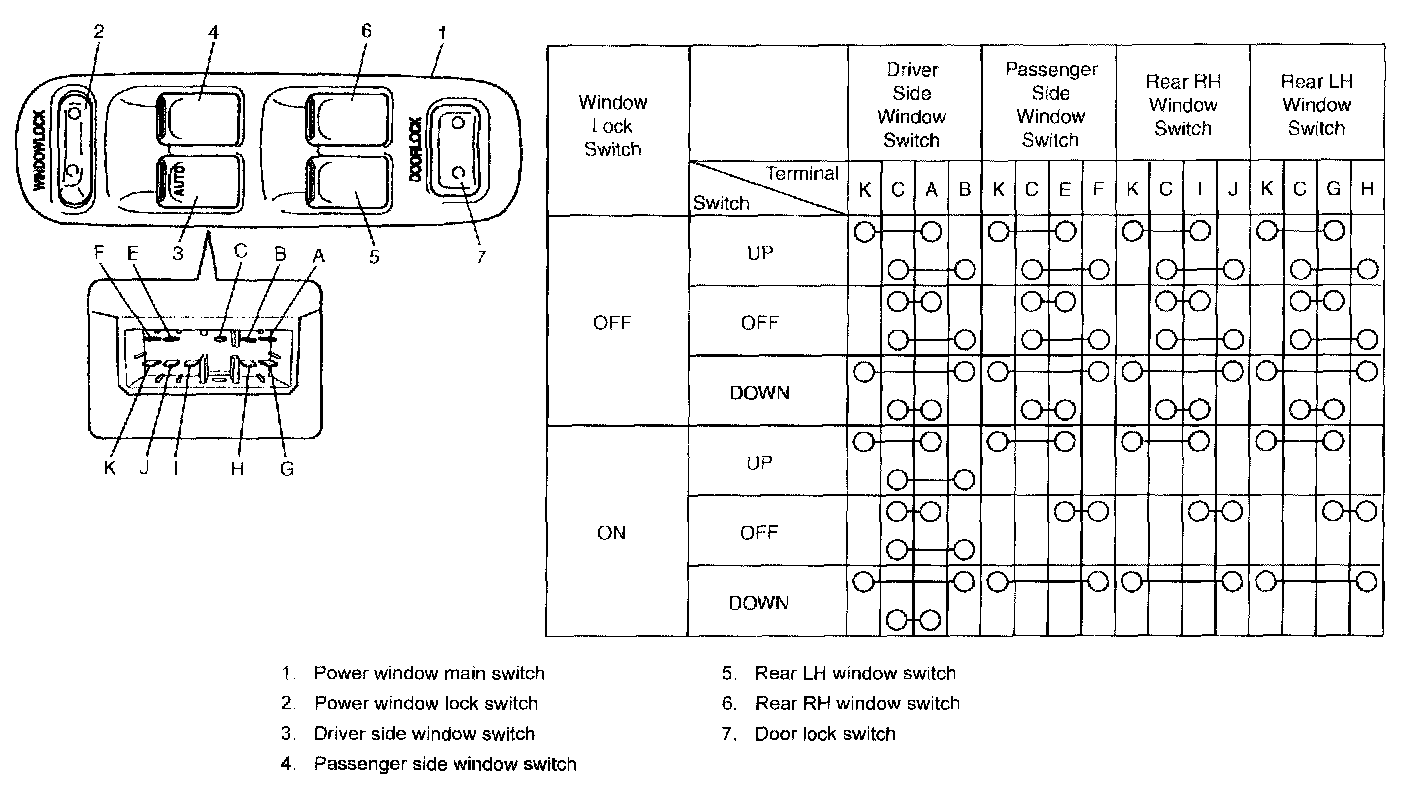

Power Window Main Switch Inspection Type 1:

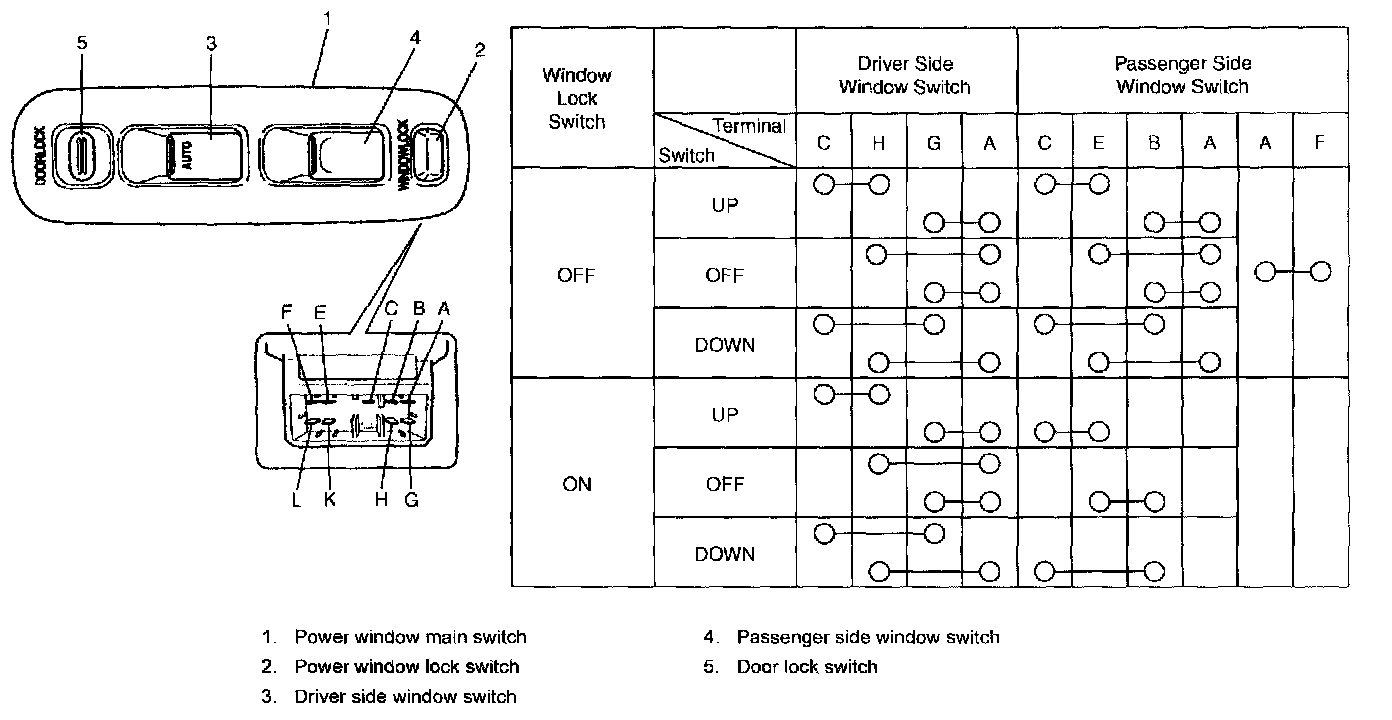

Power Window Main Switch Inspection Type 2:




Power Window Main Switch Inspection

Inspect switch continuity between terminals.
