Home >> Suzuki >> 2002 >> XL-7 Standard 4WD V6-2.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Front Differential

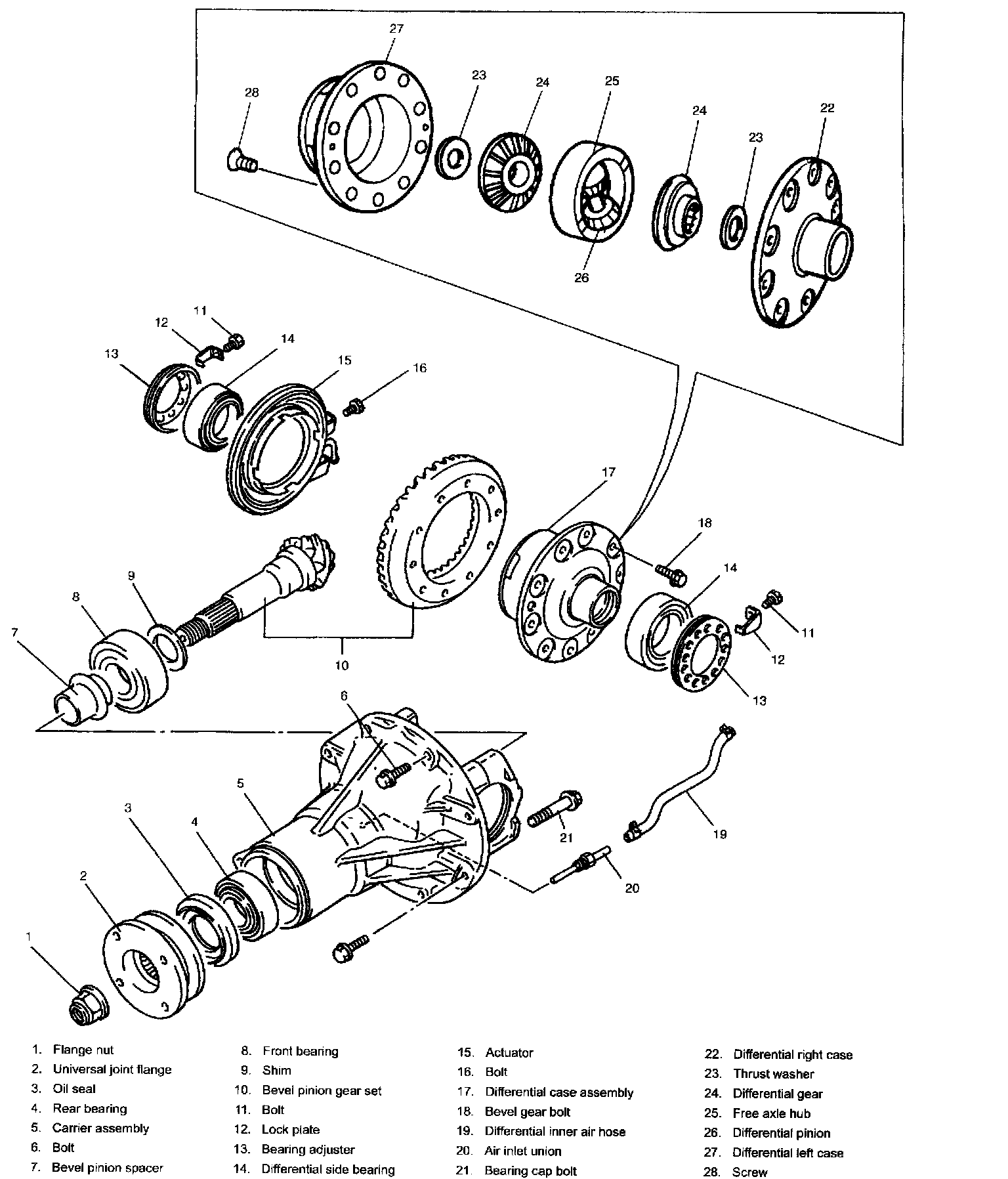

Front Differential
