Component Tests and General Diagnostics

Wiring Diagram:

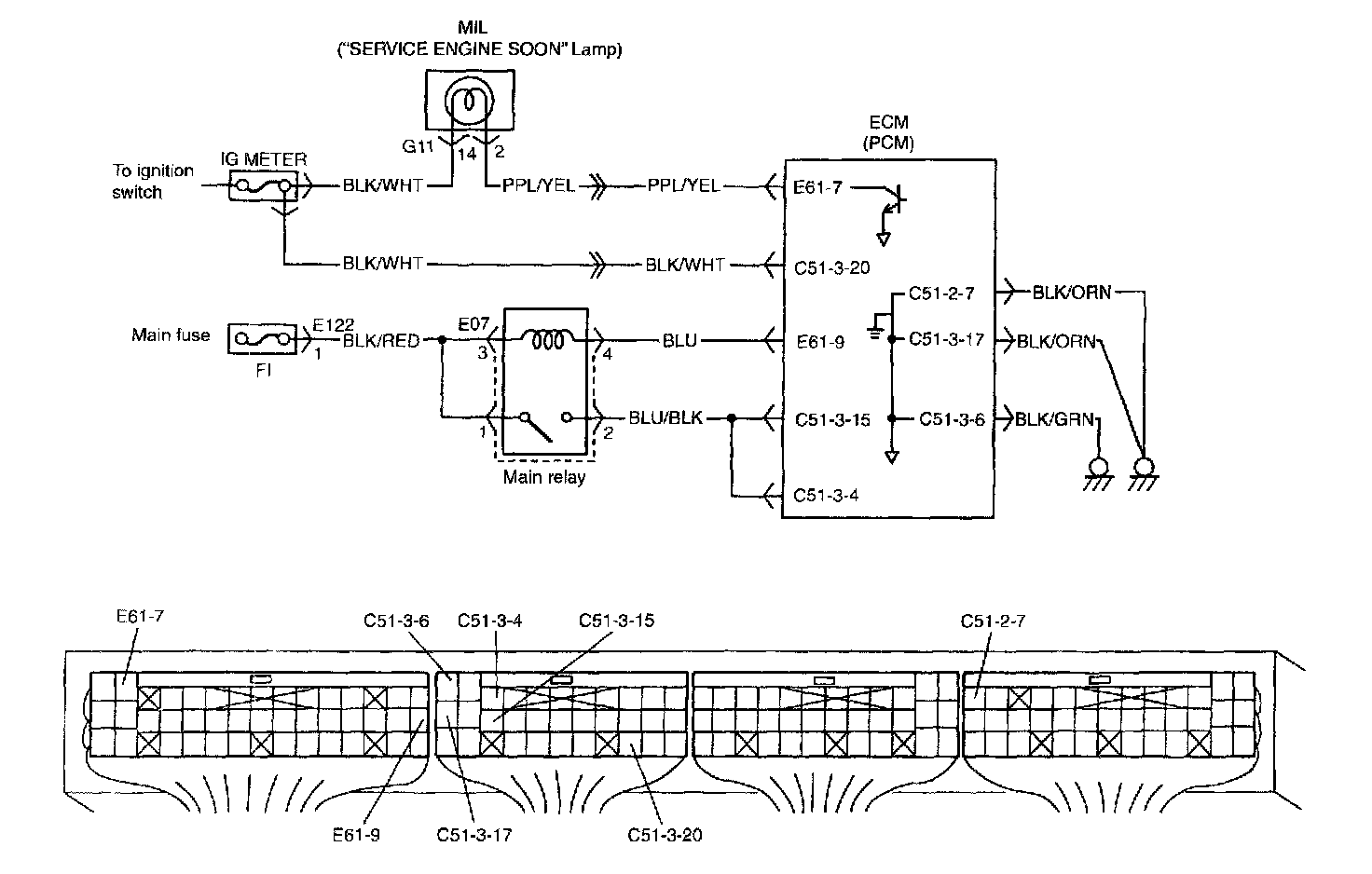

Wiring Diagram

Circuit Description
When the ignition switch is turned ON, the main relay turns ON (the contact point closes) and the main power is supplied to ECM (PCM).

Step 1 - 3:

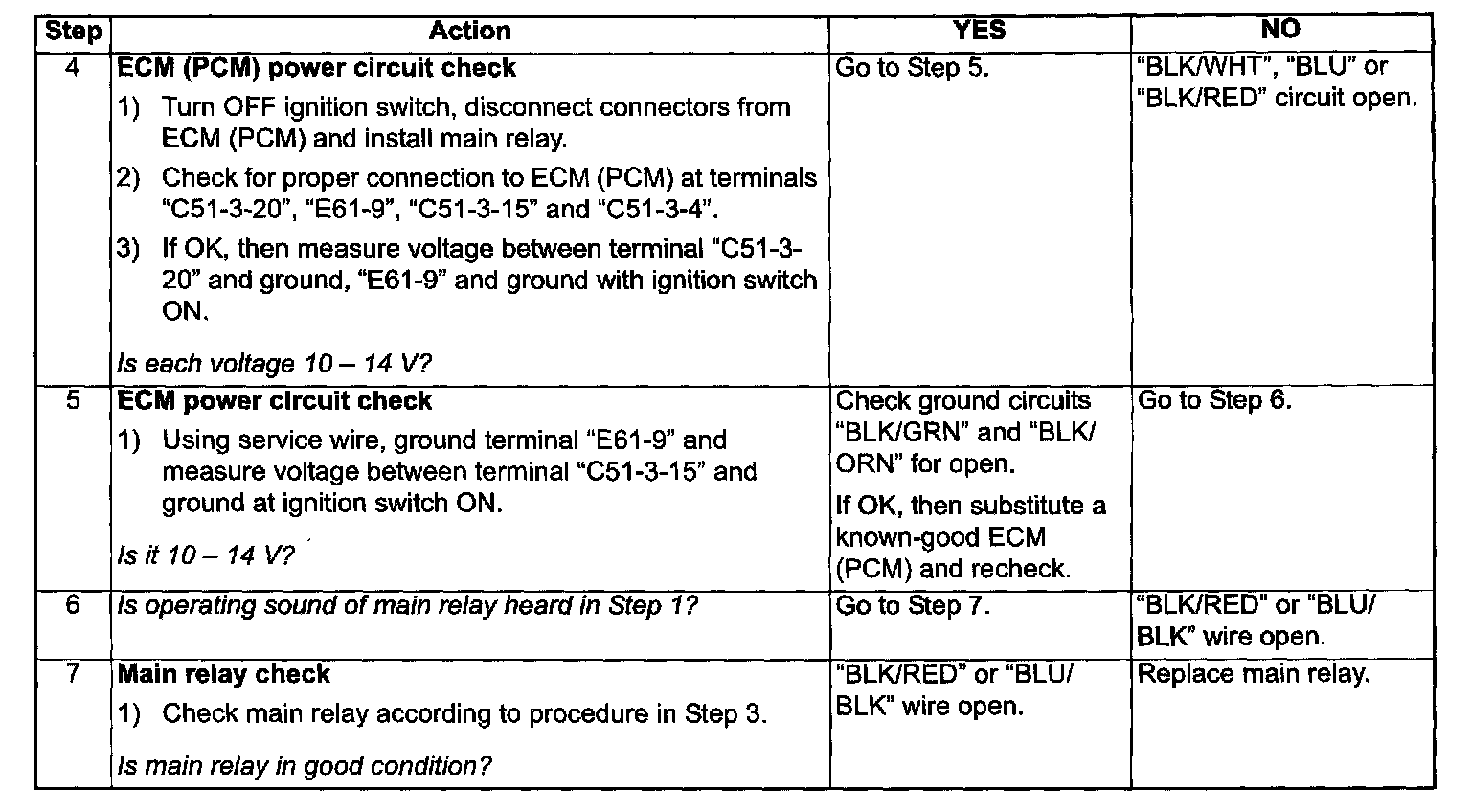

Step 4 - 7:

Troubleshooting
