Alternator

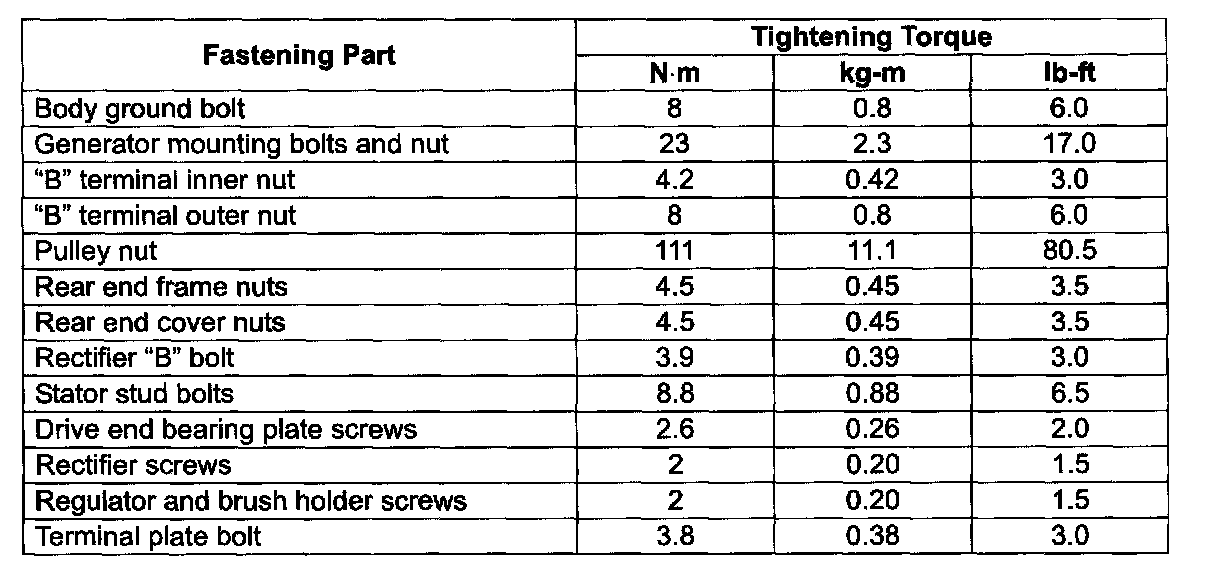

Tightening Torque Specifications:





Type 105 A type
Permissible max. speed 18000 r/min.
No-load speed 1150 r/min. (rpm)
Polarity Negative ground
Rotation Clockwise viewed from pulley side
