Home >> Suzuki >> 2002 >> XL-7 Plus 2WD V6-2.7L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Component Tests and General Diagnostics >> Cruise Control Module Power and Ground Circuits Check

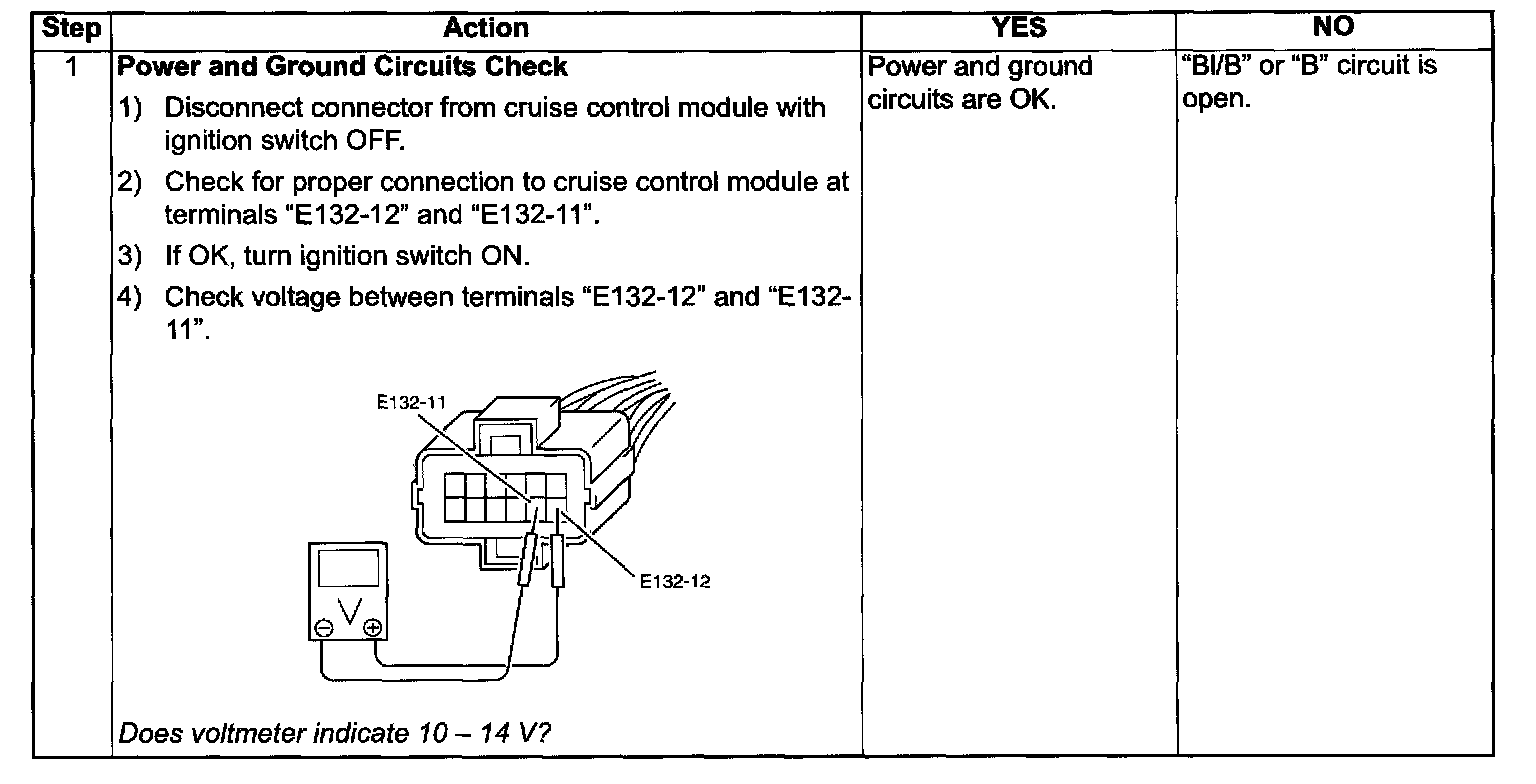

Cruise Control Module Power and Ground Circuits Check

Step 1:
