System Specifications

MANUAL TRANSMISSION

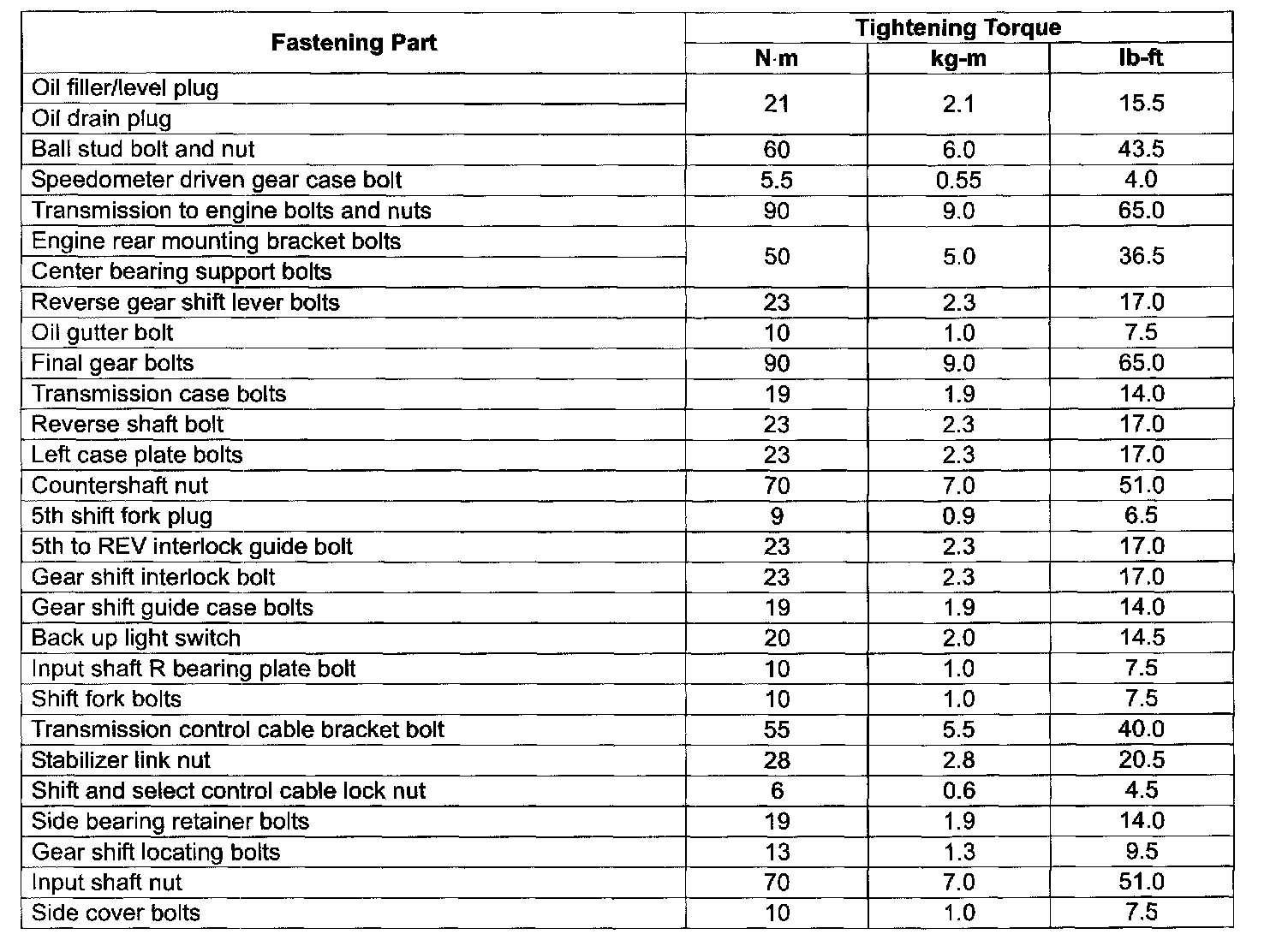

TIGHTENING TORQUE SPECIFICATIONS

COMPONENTS

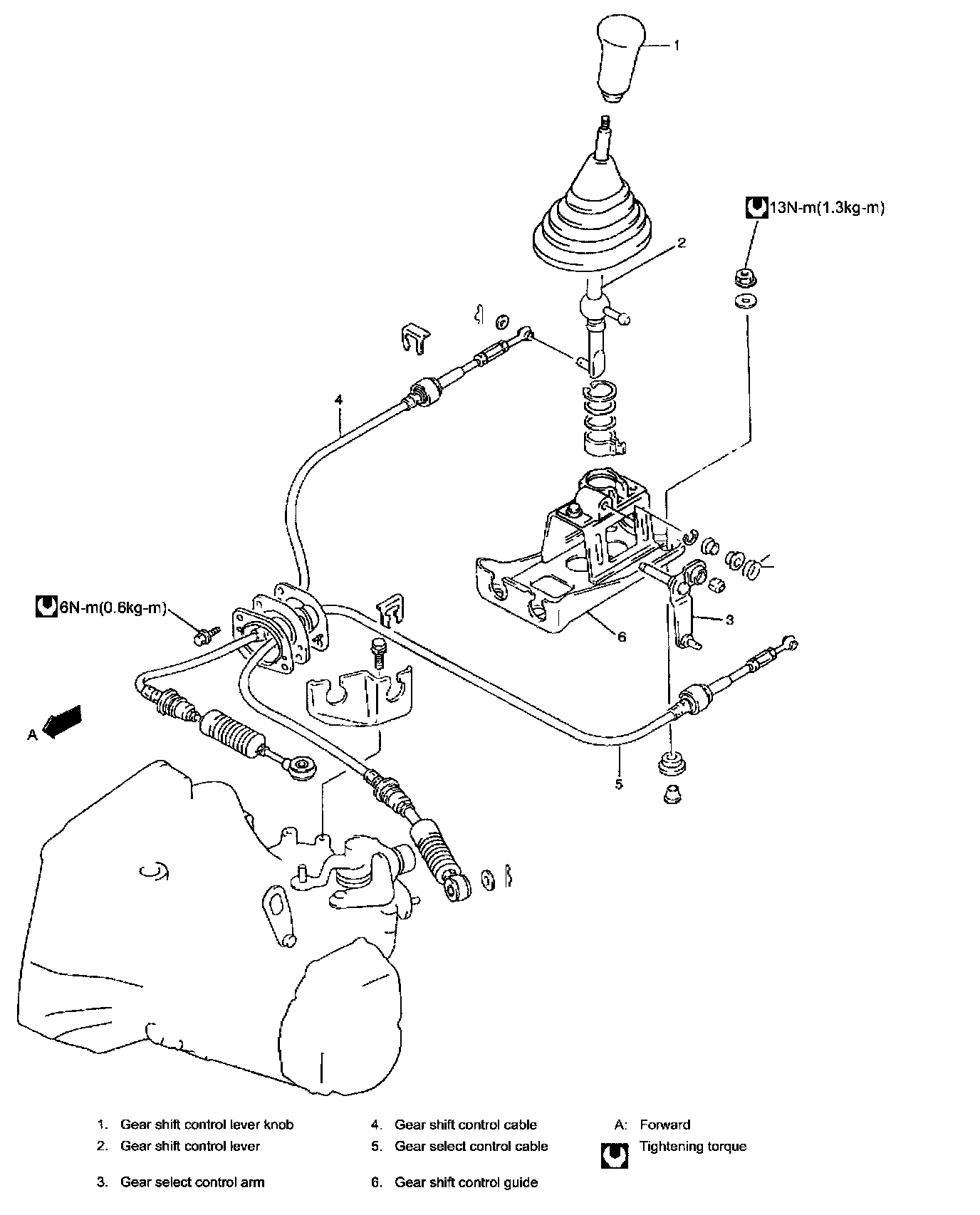

GEAR SHIFT CONTROL LEVER COMPONENTS

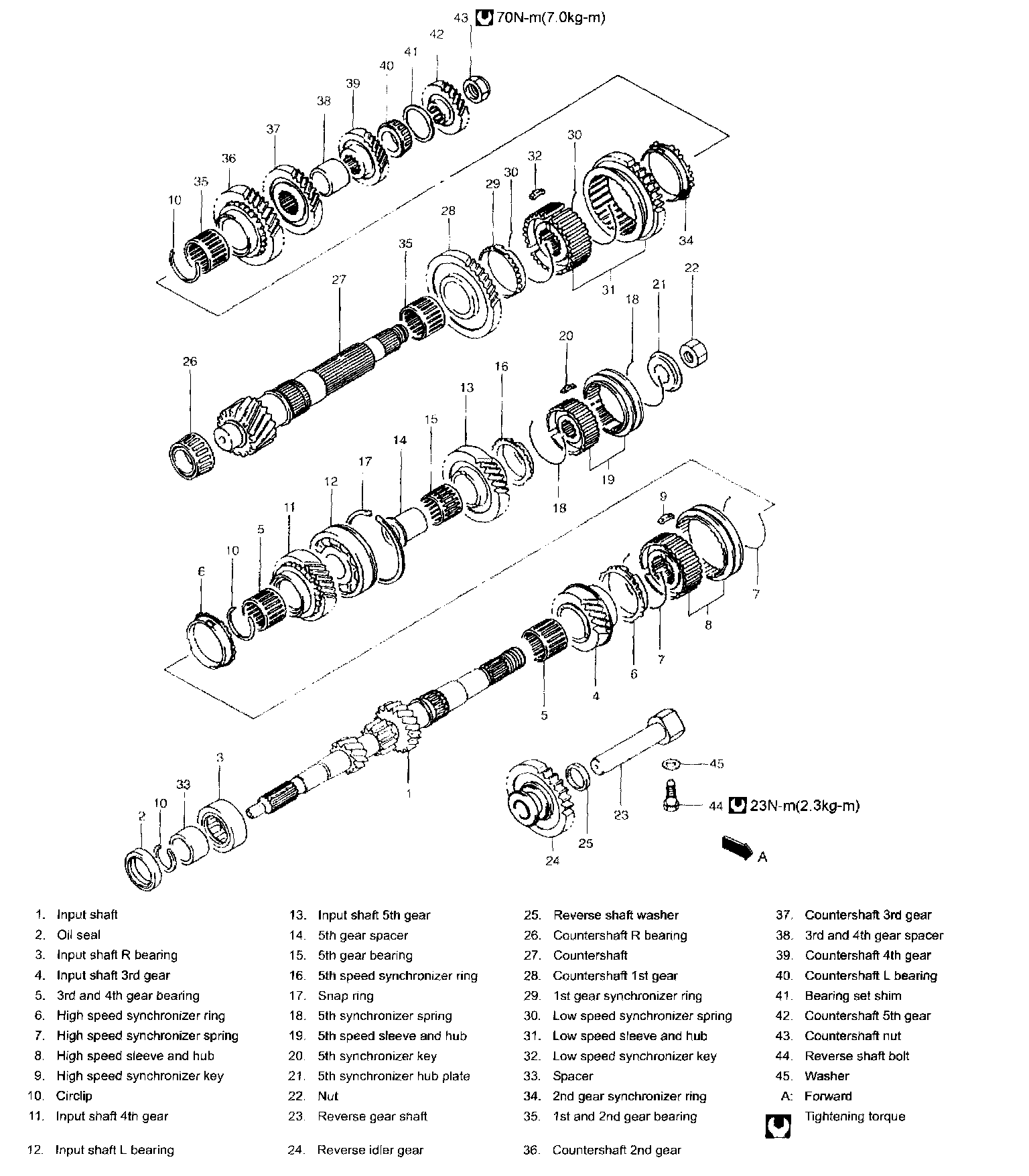

MANUAL TRANSMISSION GEAR COMPONENTS
