Home >> Suzuki >> 2002 >> Esteem GL Sedan L4-1.8L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> Power Window Main Switch

Power Window Main Switch

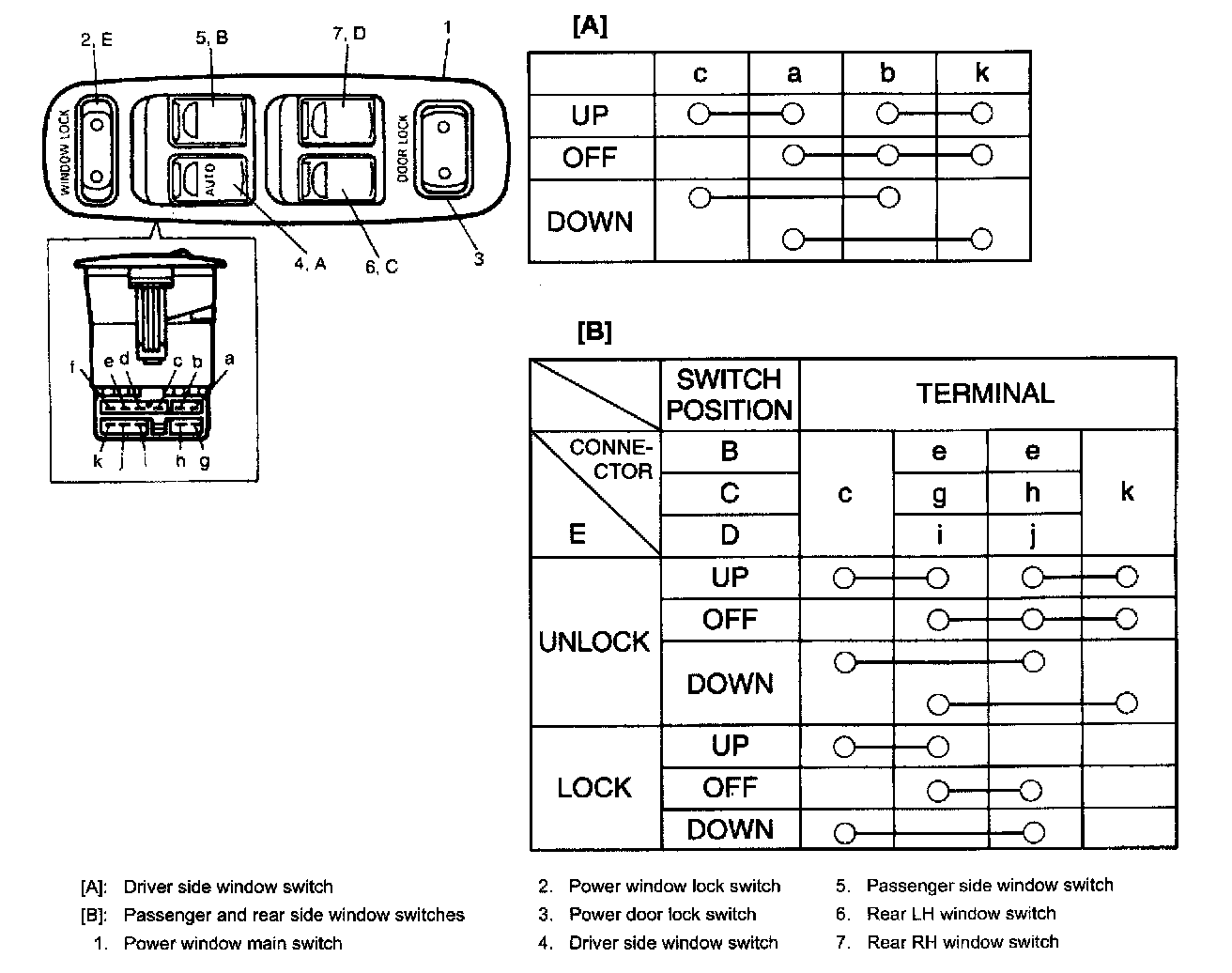

Power Window Main Switch Inspection
Inspect switch continuity between terminals.
