Engine Compartment

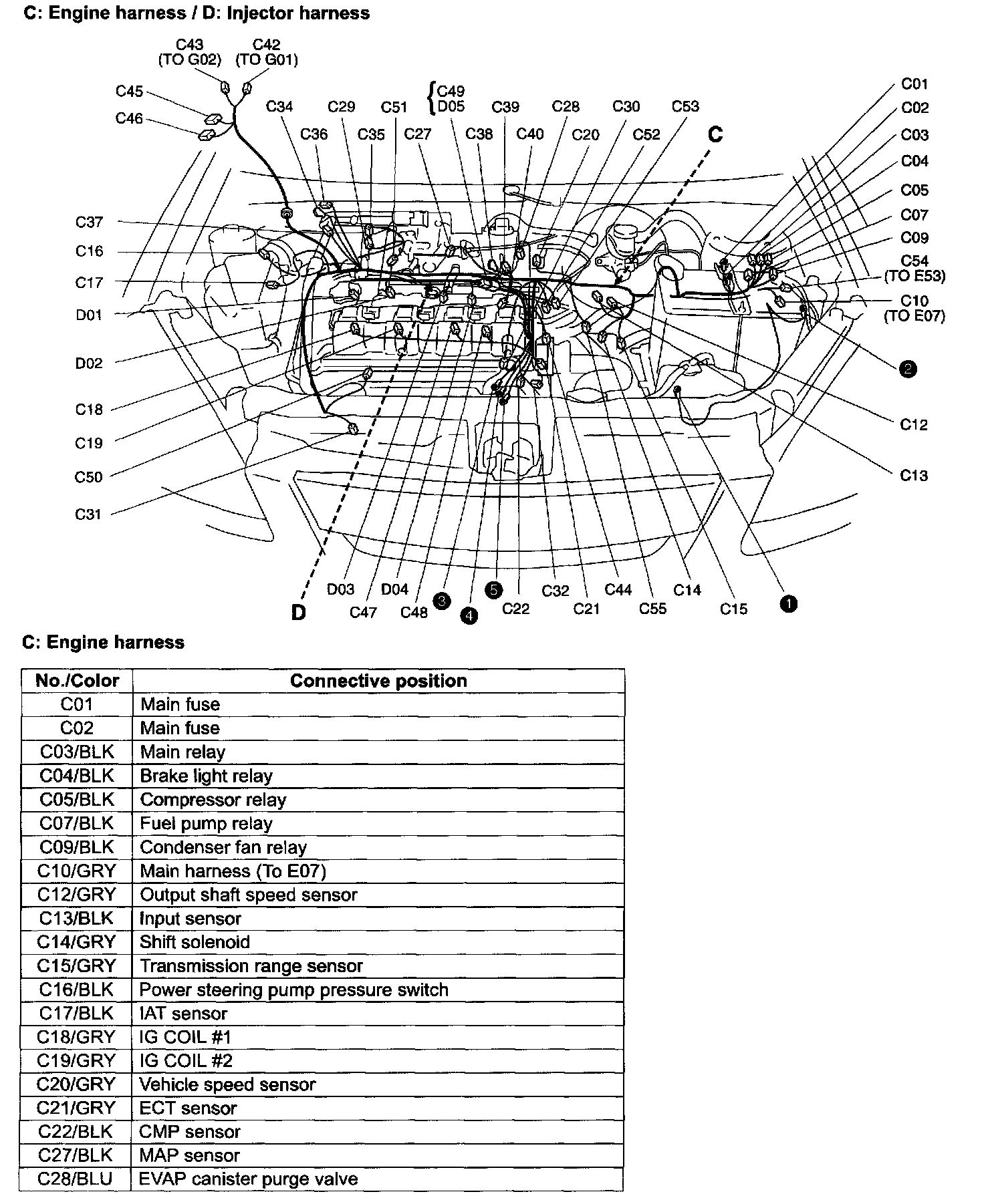

C: Engine Harness / D: Injector Harness - Connective Position:

Engine Compartment Part 1:
