System Diagram

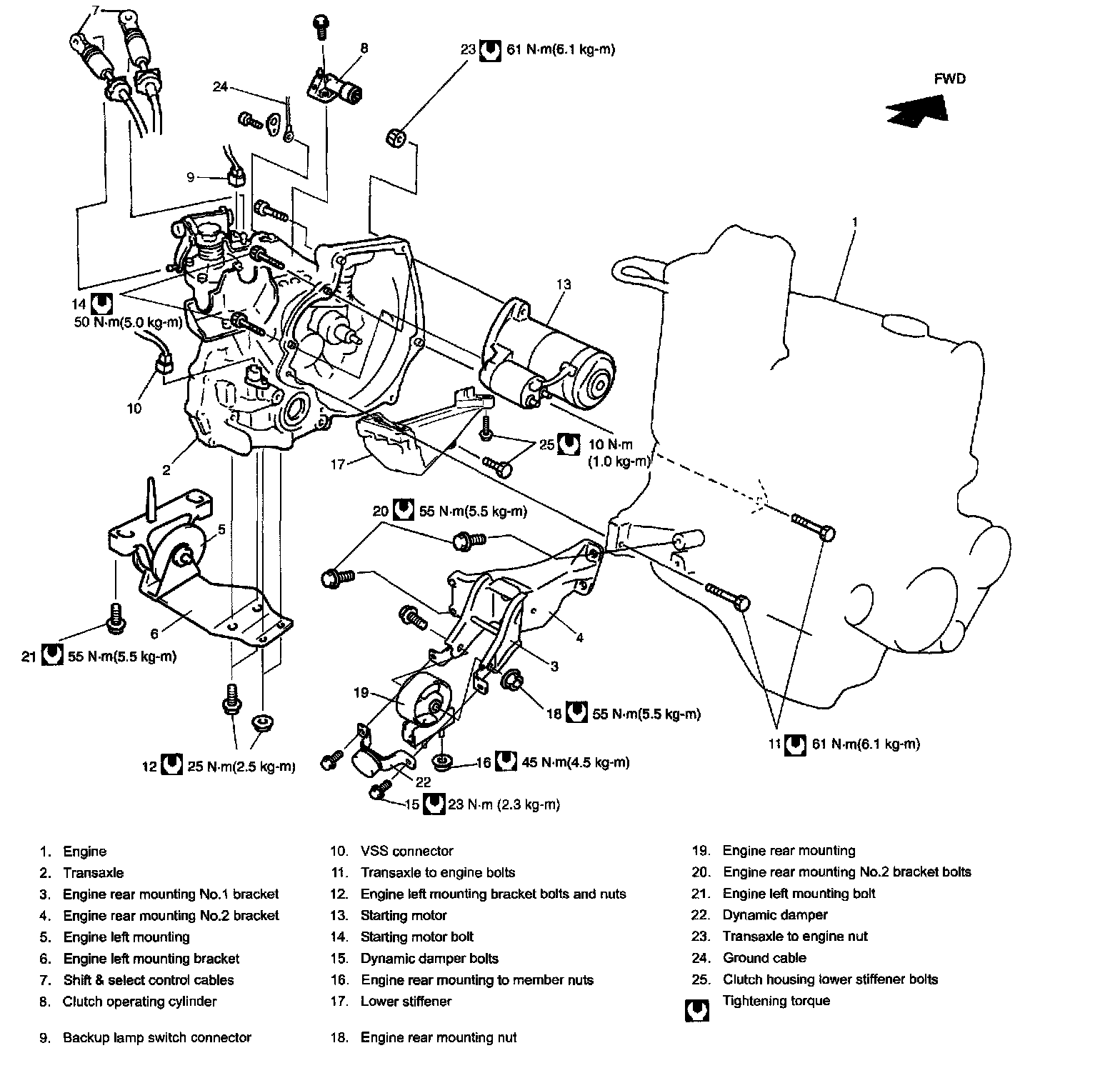

Transaxle Unit Components

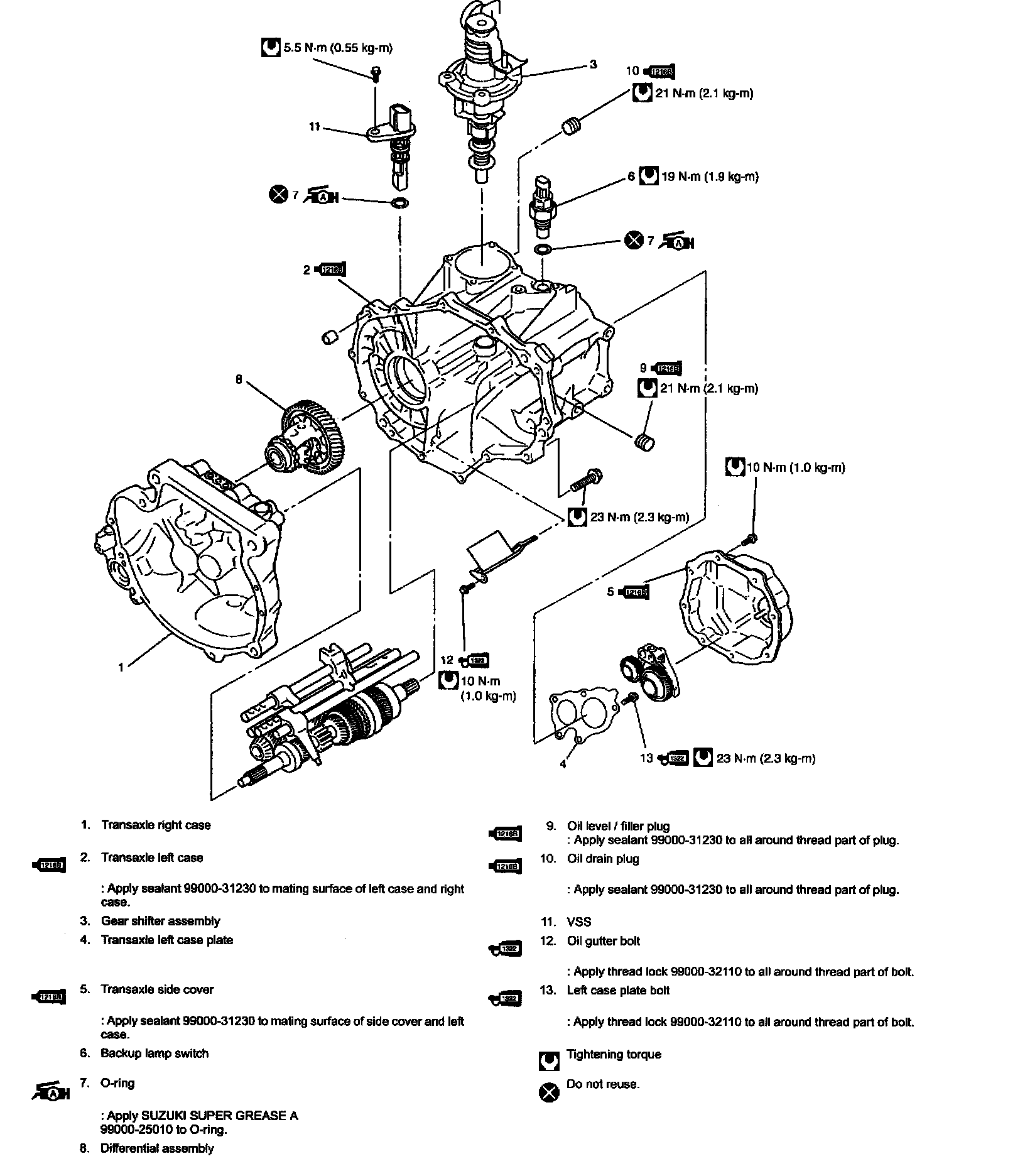

Transaxle Case Components





Input and Counter Shaft Components

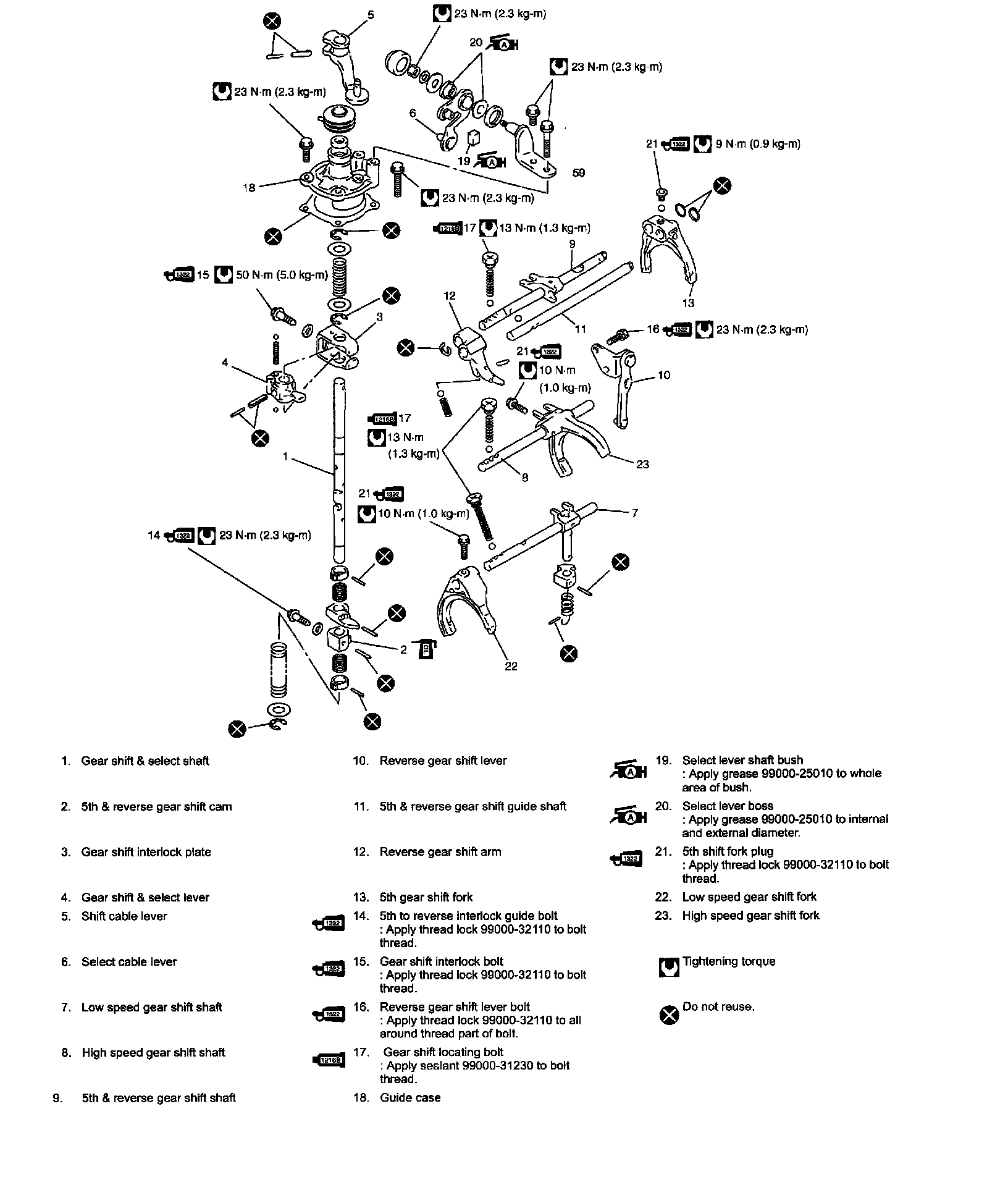

Gear Shifter Components





Differential Components
