Home >> Suzuki >> 2001 >> XL-7 Standard 2WD V6-2.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

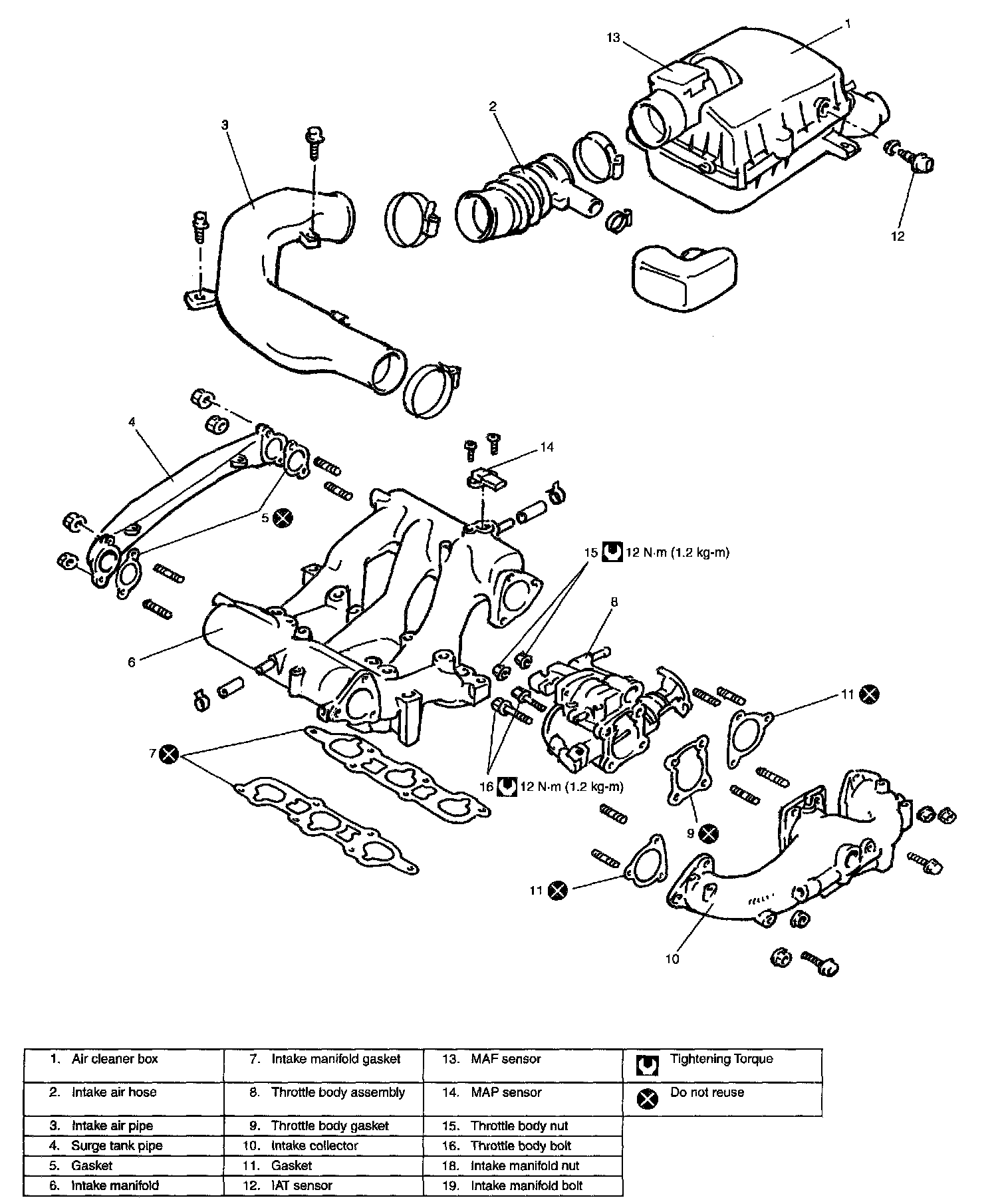

Intake Manifold
