Home >> Suzuki >> 2000 >> Swift GL L4-1298cc 1.3L SOHC MFI >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Diagnostic Flow Table

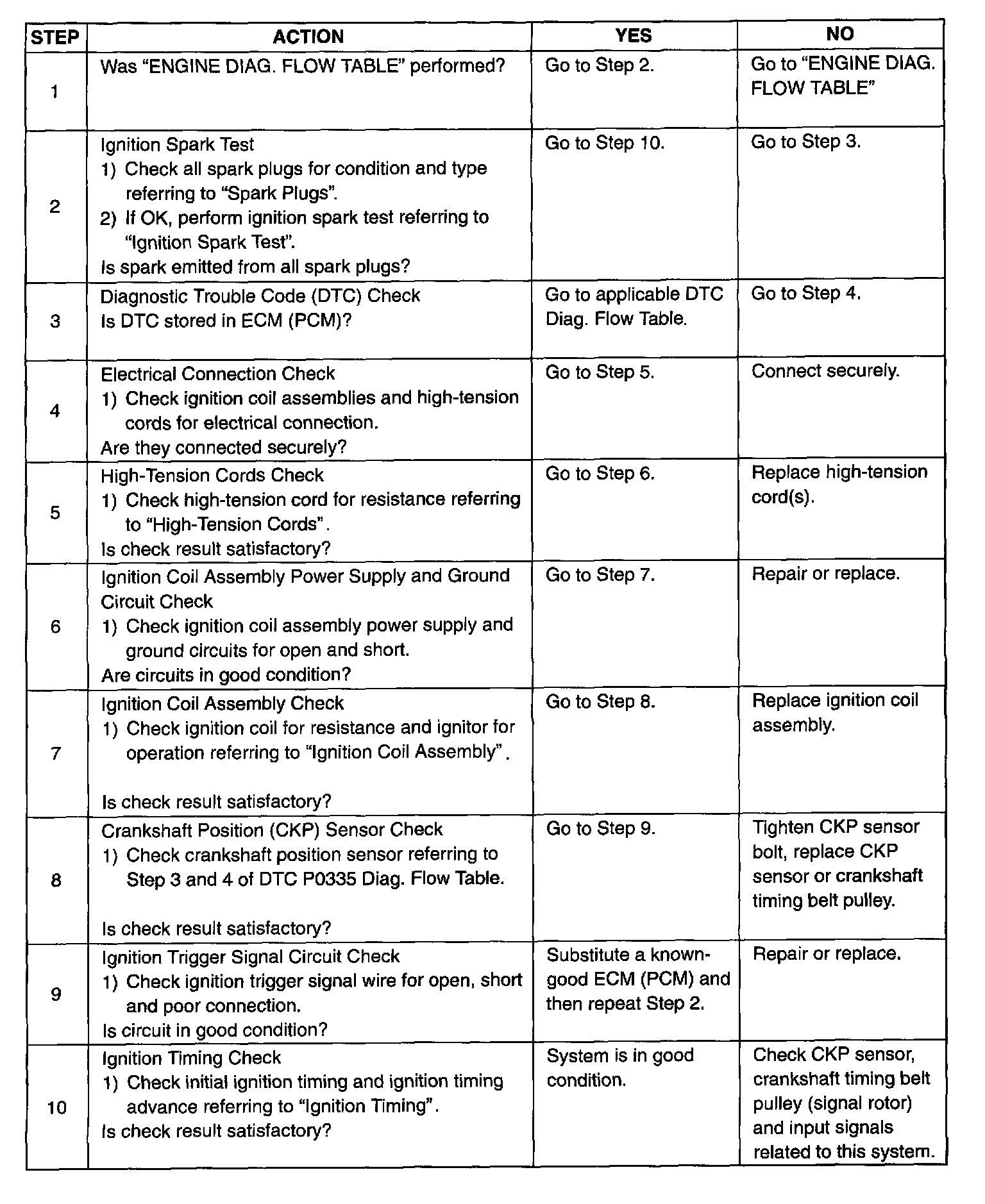

Diagnostic Flow Table

Steps 1 - 10:
