Home >> Suzuki >> 2000 >> Grand Vitara JLS Plus 2WD V6-2.5L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> Power Window Main Switch

Power Window Main Switch

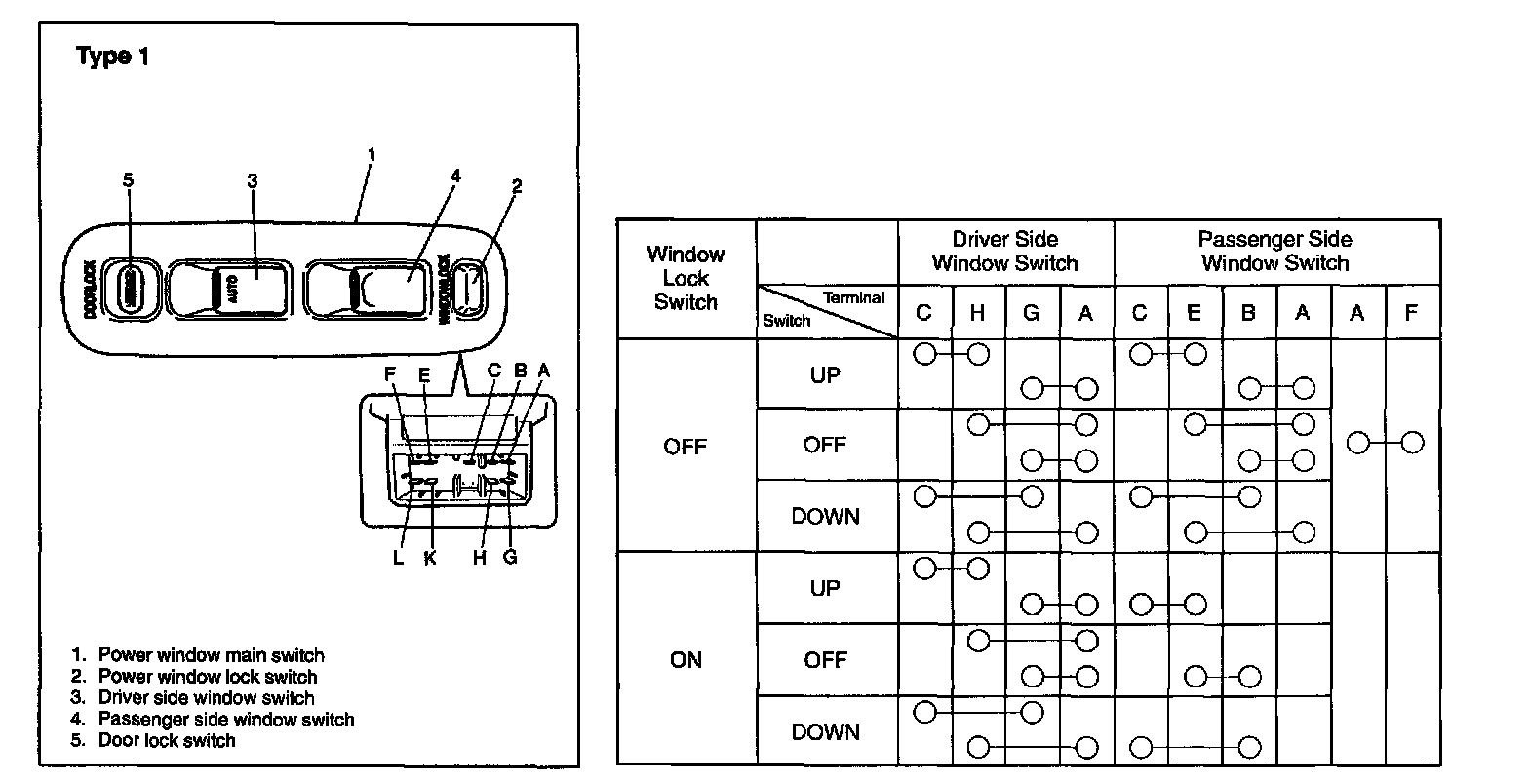

Type 1:

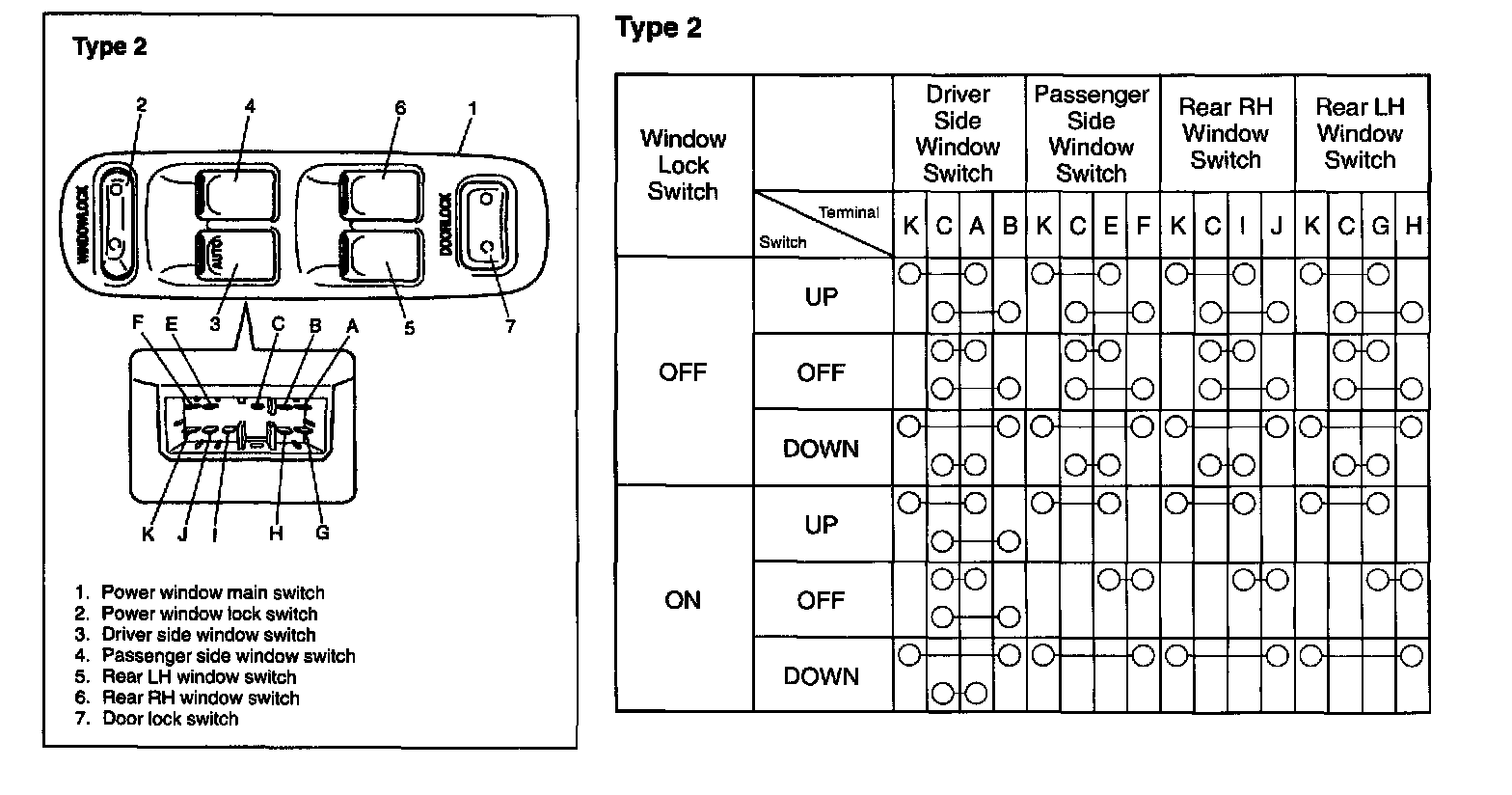

Type 2:




Inspect switch continuity between terminals.
