Powertrain Management: Locations

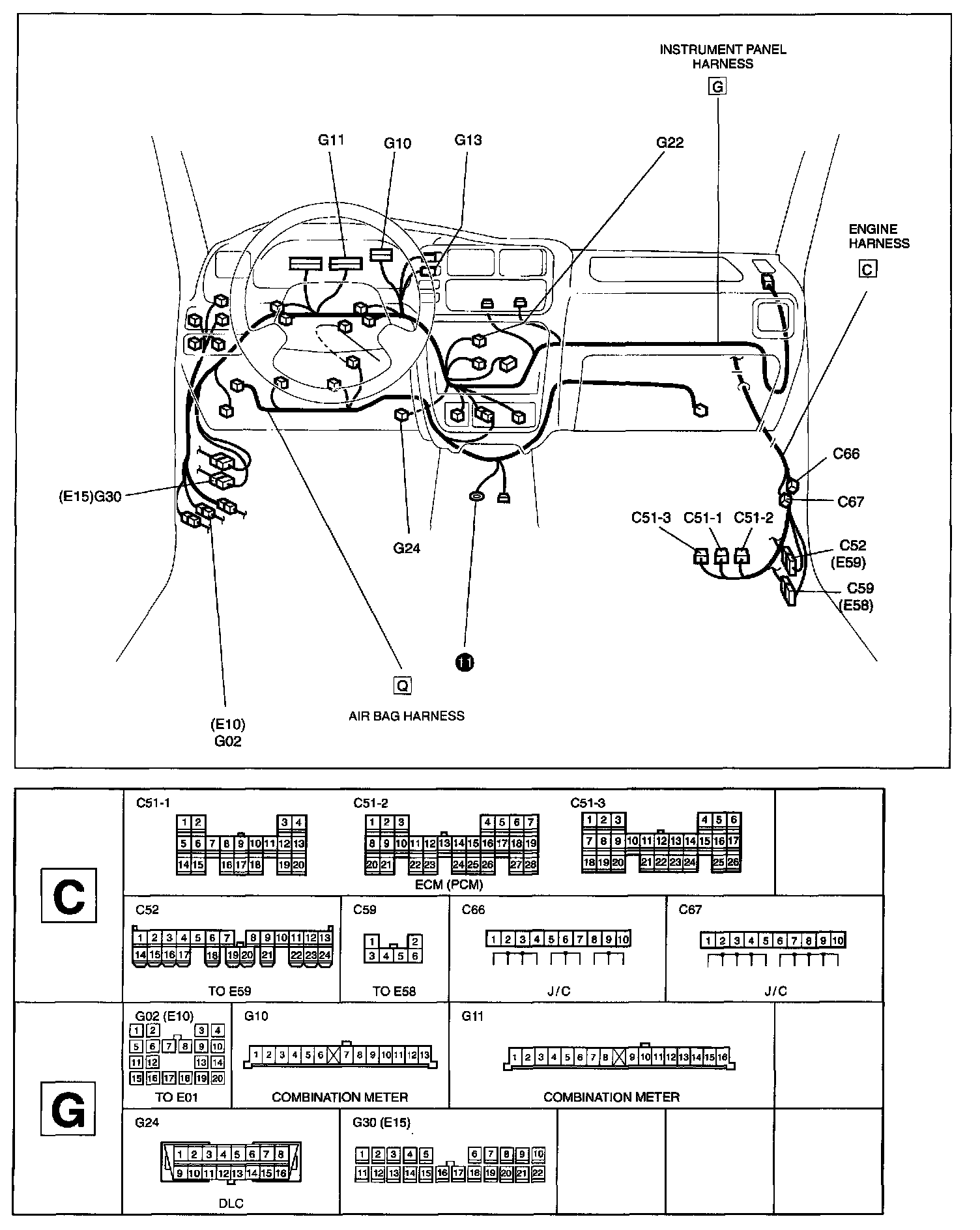

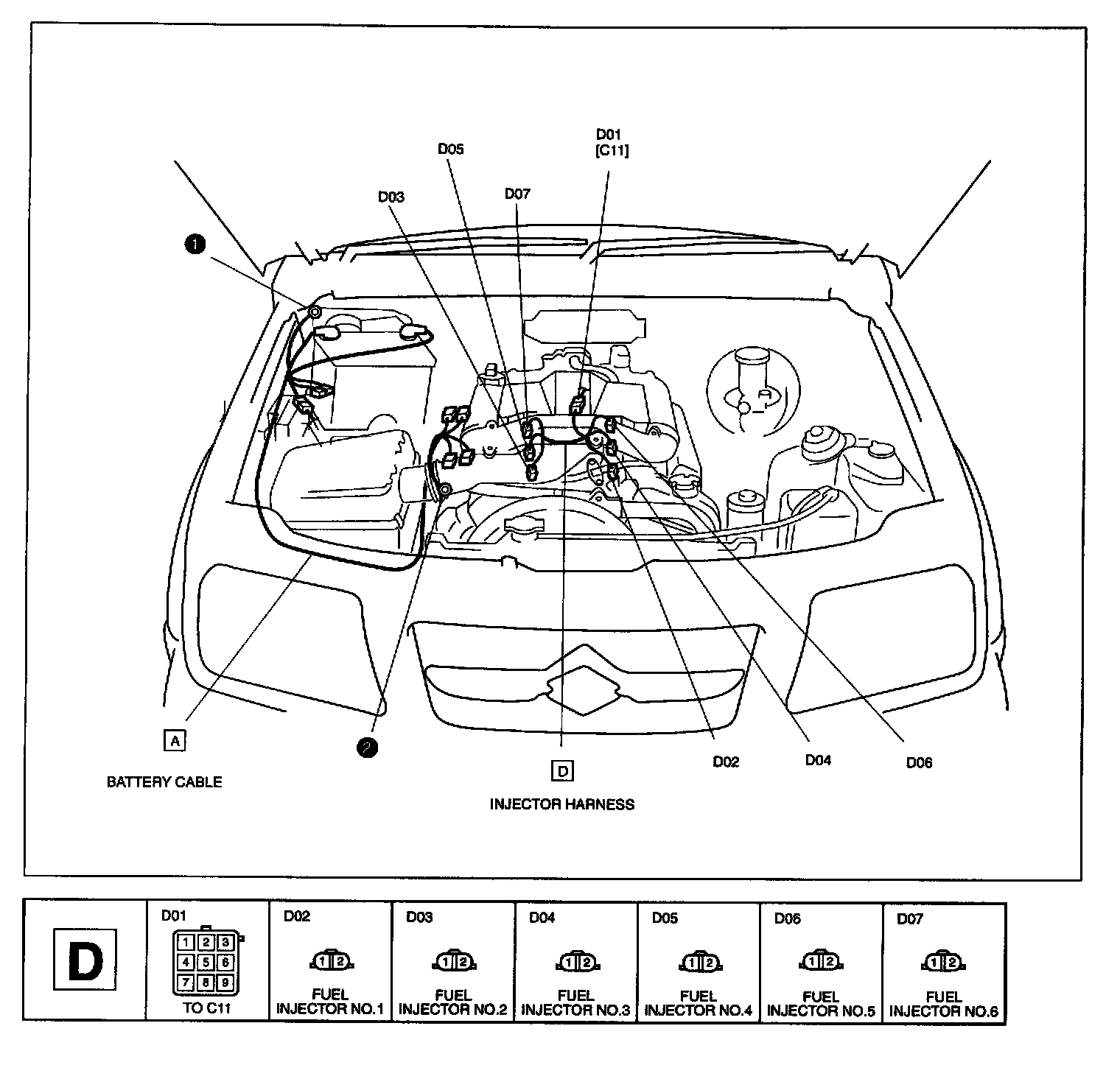

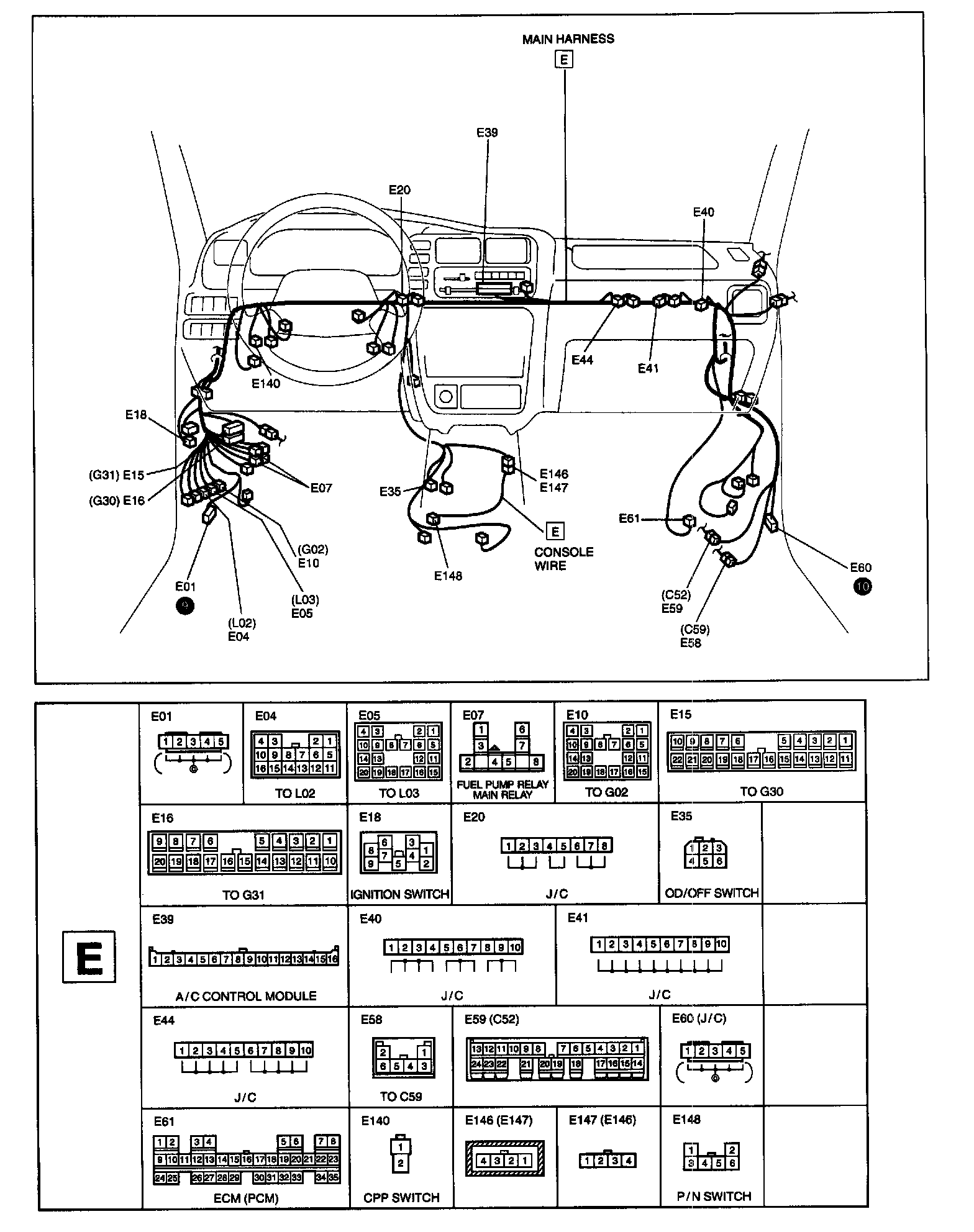

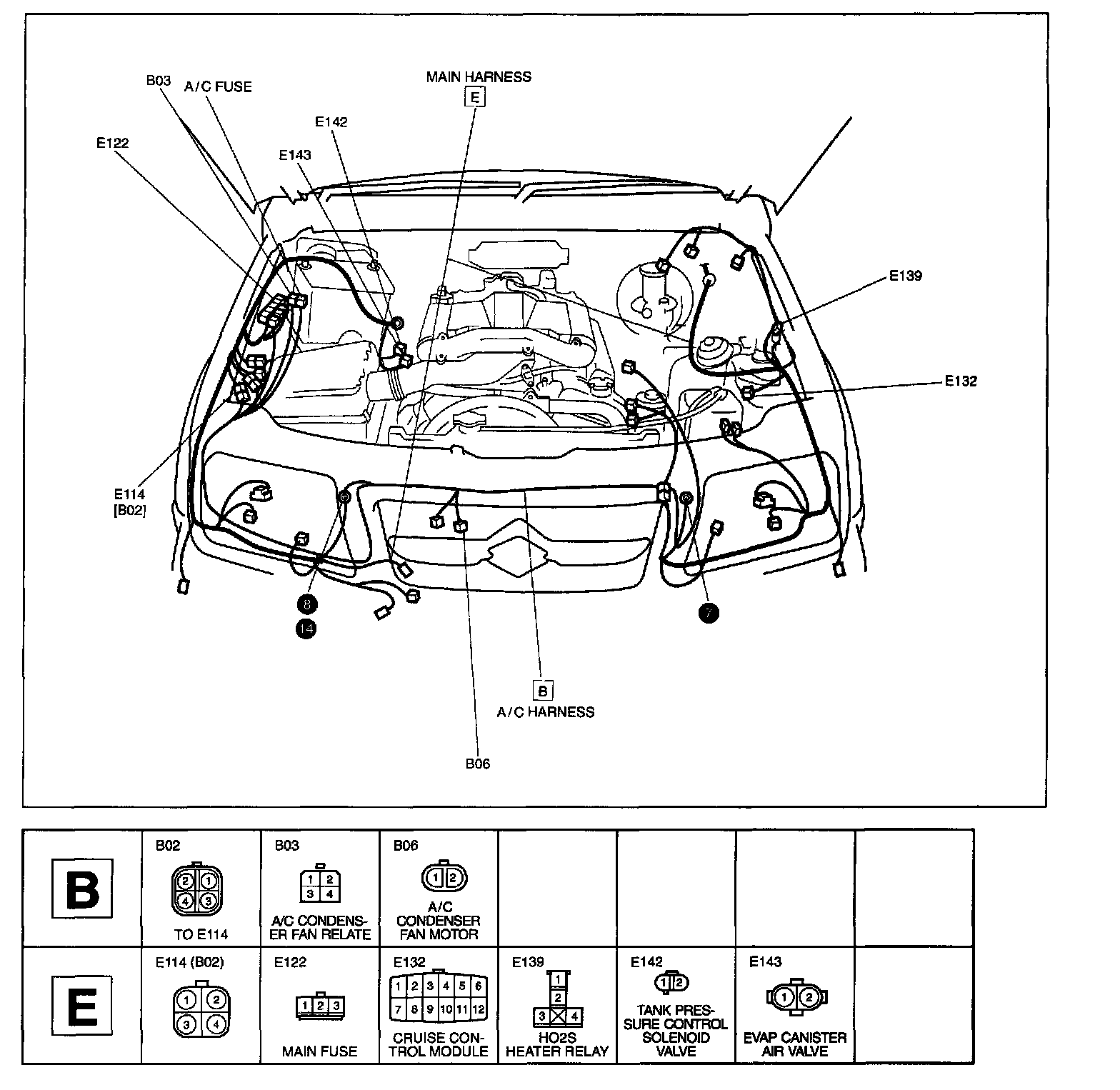

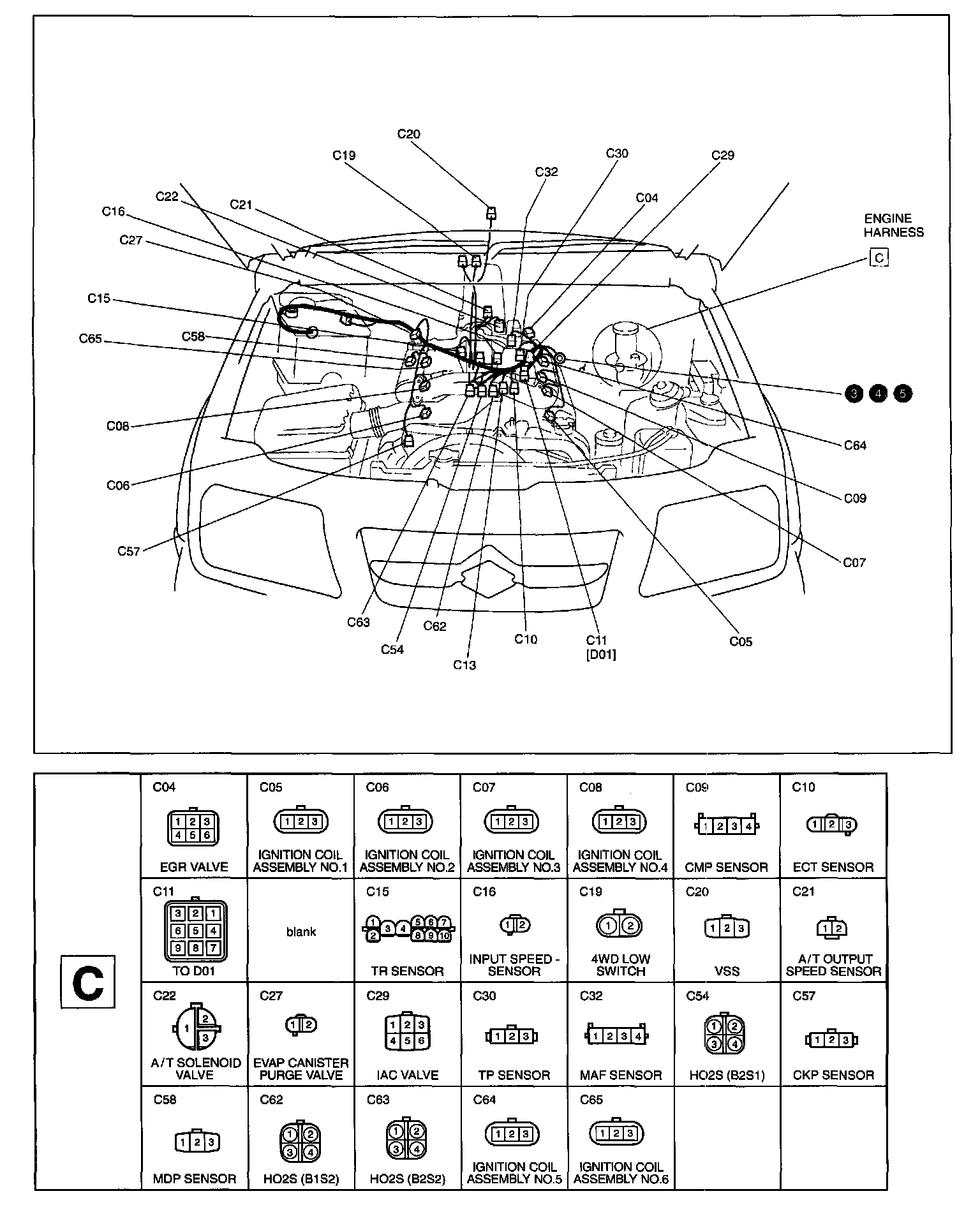

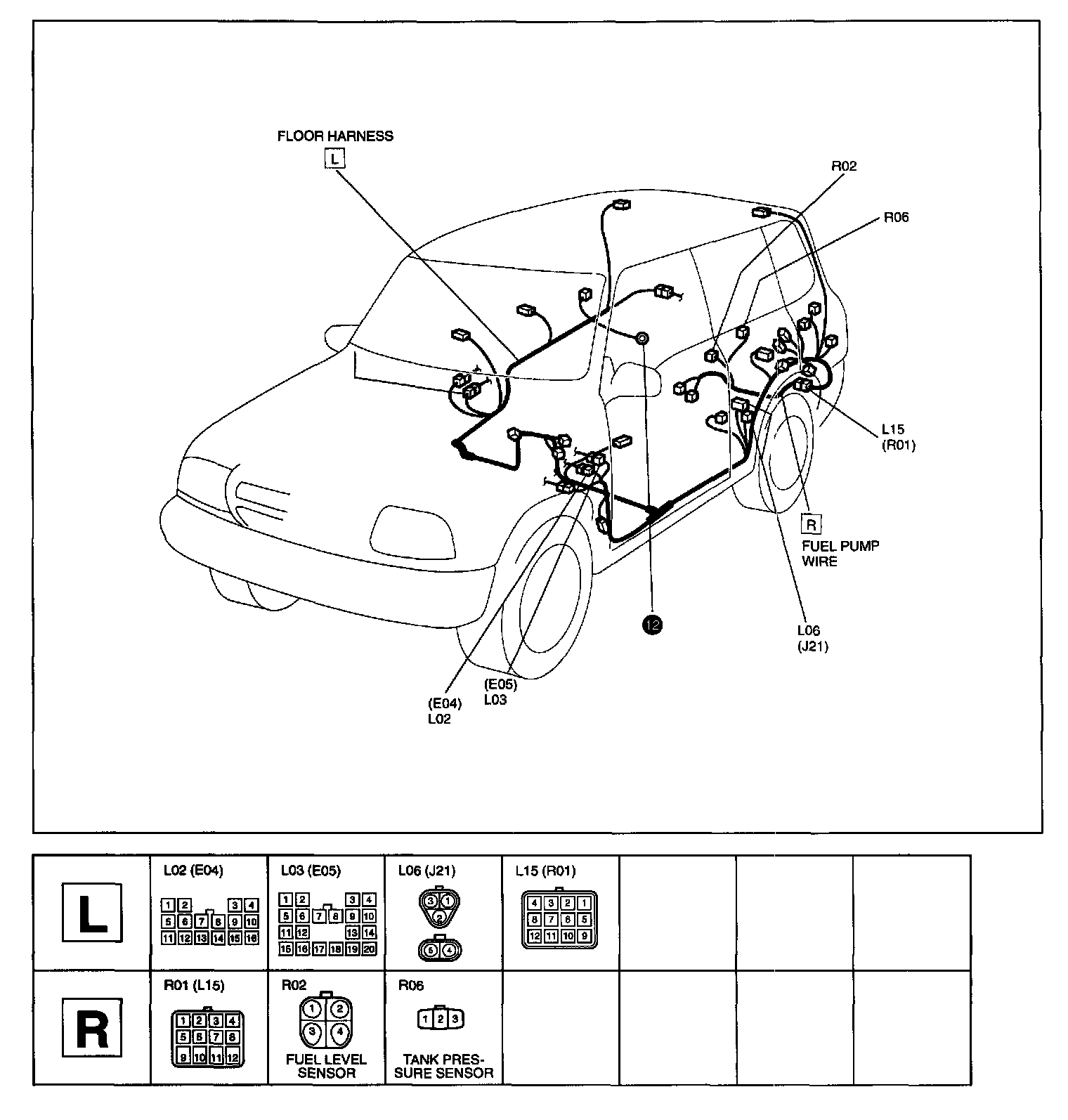

Wire Harness And Connectors:




















WIRE HARNESS AND CONNECTORS
