Home >> Suzuki >> 2000 >> Esteem GL Sedan L4-1.8L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Stop Lamp Switch With Pedal Position Switch Circuits Check

Stop Lamp Switch With Pedal Position Switch Circuits Check

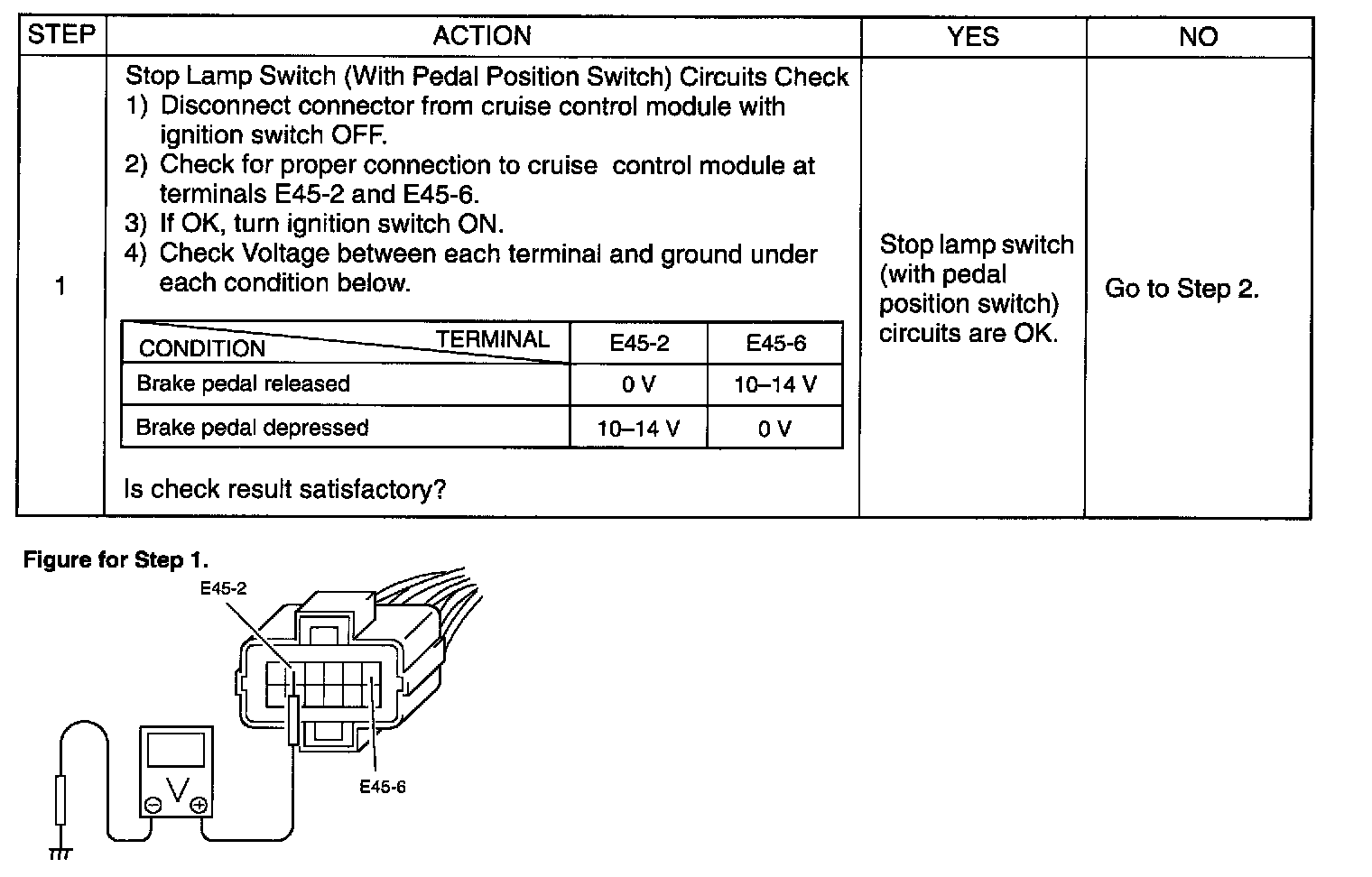

Step 1:

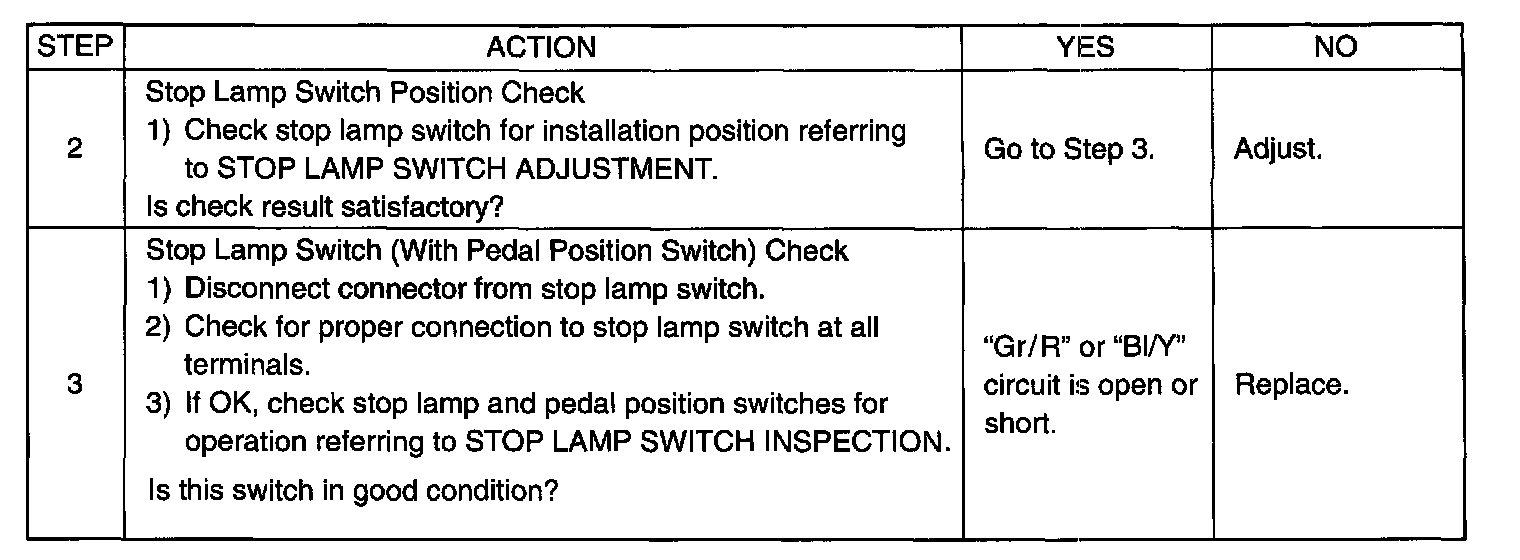

Steps 2 - 3:
