Stabilizer Link

  1. Check that there is no deformation, cracks or other damages.
  2. Check for excessive rusting.

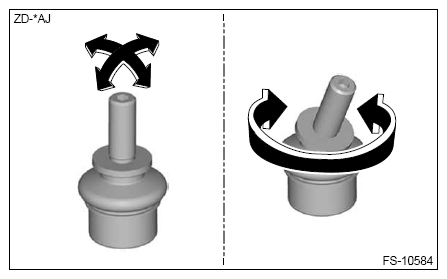

  3. Move the stud as shown in the figure to check that there is no abnormal interference or play.
    G14601731Courtesy of SUBARU OF AMERICA, INC.
  4. If fault is found in the inspection, replace the relevant part.
