Normal Mirror Model

CAUTION: Be careful not to damage the mirror surface and the glass windshield.
  1. Remove the mirror assembly inner rearview.
    1. Tilt the mirror surface so that the mirror assembly inner rearview does not come in contact with peripheral parts.

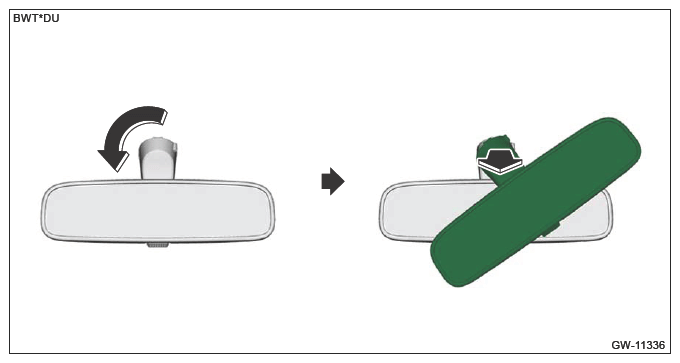

    2. Turn the mirror assembly inner rearview by 60 degrees in the direction of the arrow to remove.
      G16386210Courtesy of SUBARU OF AMERICA, INC.
  2. Replace the glass windshield if the base inner mirror is damaged.
