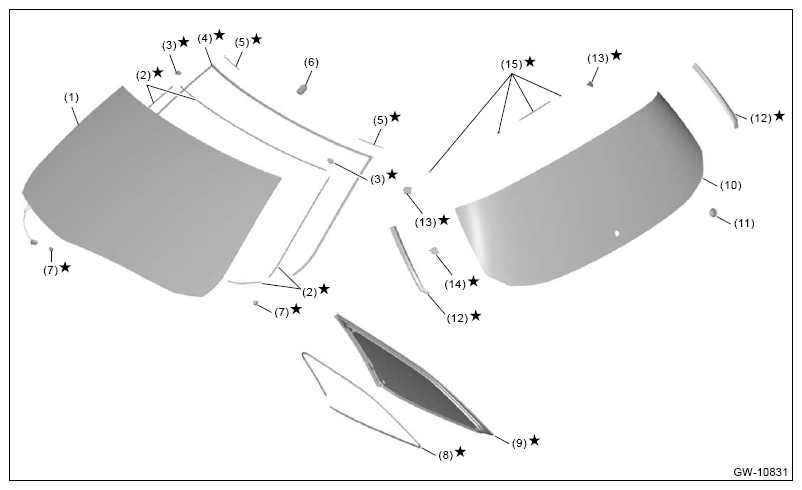

Fixed Glass
| (1) | Glass windshield |
| (2) | Dam rubber front |
| (3) | Locating pin windshield |
| (4) | Molding windshield |
| (6) | Sensor ASSY rain |
| (5) | Seal upper |
| (7) | Seal lower |
| (8) | Dam rubber rear quarter |
| (9) | Glass rear quarter |
| (11) | Cap pivot |
| (12) | Molding rear gate |
| (13) | Holder clip |
| (14) | Locating pin rear gate |
| (10) | Glass rear gate |
| (15) | Dam rubber rear gate |
NOTE:
Base inner mirror and bracket rain sensor cannot be removed from the glass windshield.
