Crosstrek Base, Automatic CVT Trans
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
CVT Transaxle (Tr580)
>>
General Description
>>
Components With Torque Specifications
>>
Transmission Control Module
Transmission Control Module

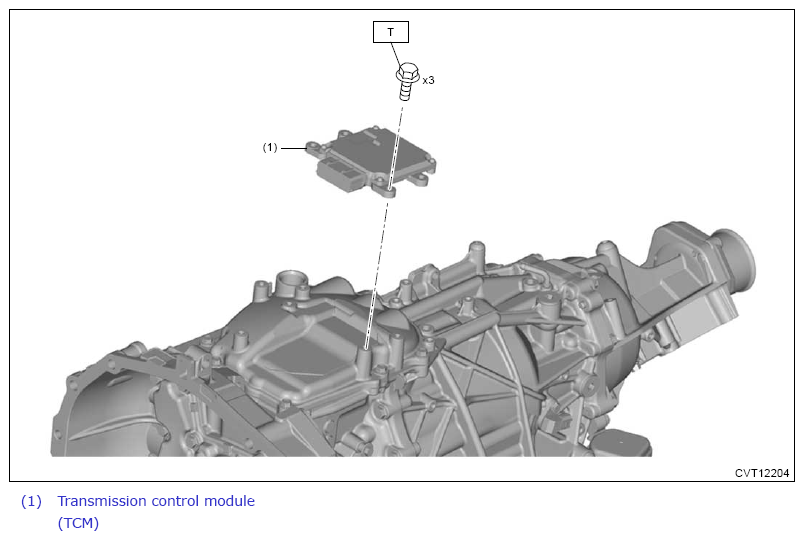

Fig 1: Transmission Control Module Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7 (0.7, 5.2)
Courtesy of SUBARU OF AMERICA, INC.
