Rocker Cover

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

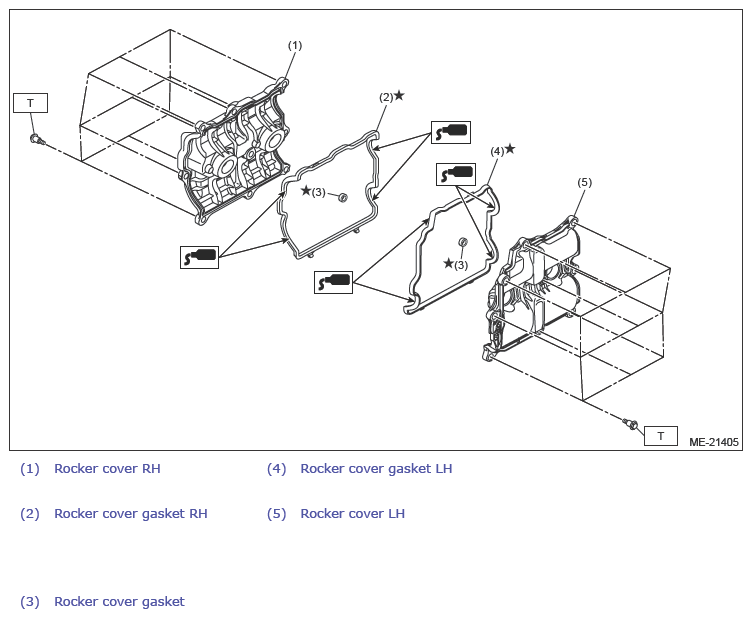

Fig 1: Rocker Cover Components
G13862411Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to MECHANICAL (H4DOTC)>Rocker Cover>ROCKER COVER .
