Inrush Current Reduction Relay: Inspection

1. Check that the ICR relay has no deformation, cracks or other damages.

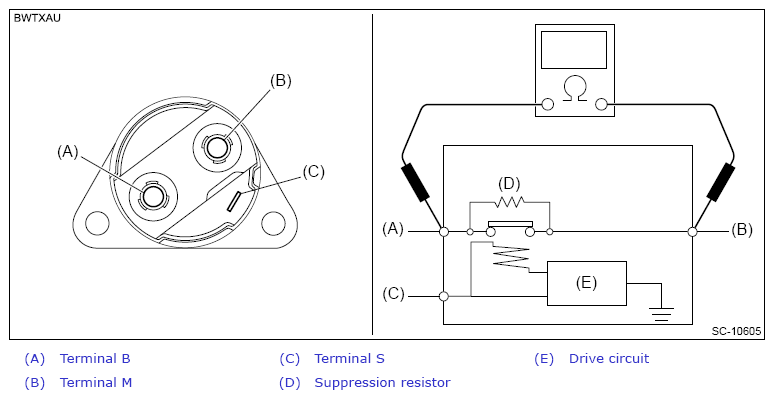

2. Measure the resistance between the ICR relay terminals.

CAUTION: To prevent burning and damaging the ICR relay drive circuit, take care not to apply the battery voltage to the ICR relay S terminal.

Courtesy of SUBARU OF AMERICA, INC.

Terminals	Standard
(A) - (B)	Less than approx. 1Ω
