Seat Cushion Airbag Module

CAUTION: If the protection felt for the seat cushion airbag module is broken or damaged, replace the seat cushion airbag module with a new part.

NOTE: For operation procedures on seat cushion airbag module removal/installation, refer to the "SEATS" article.

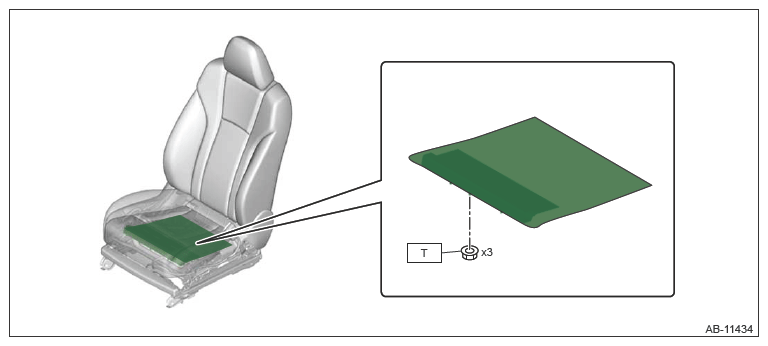

Fig 1: Seat Cushion Airbag Module Nut

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
