Access Buzzer: Installation

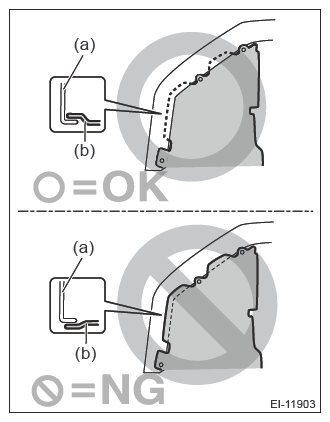

NOTE: Install the mud guard so that the front end of the mud guard (b), except for the clip fixing point, comes inside the bumper face (a).
G13953512Courtesy of SUBARU OF AMERICA, INC.
  1. Install the access buzzer.
  2. Install the mud guard front LH.
  3. Lower the vehicle.
  4. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
